92MM Stud Link Anchor Chain -China Shipping Anchor Chain
- 2500 Tonne / Tonnes per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 15 days
Product Details
Brand Name: | China Shipping Anchor Chain | Place of Origin: | China | Model Number: | 92MM Stud Link Anchor Chain |
Part: | Other |
Product Description

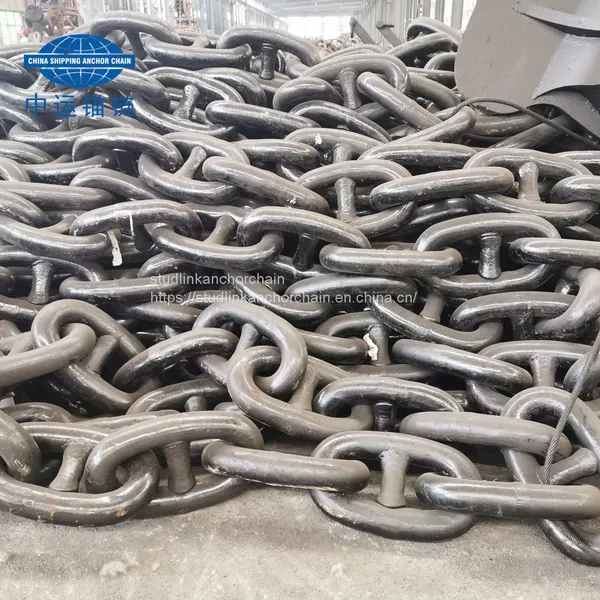

92MM Stud Link Anchor Chain-China Shipping Anchor Chain
Our advantage:
A. Delivery: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
B. Warranty: Our warranty for our anchor chains can be 2-4 years.
Anchor Chains,Anchor Chain Factory,Marine Anchor Chain
Production Procedure:
Manufacturing process quality control from raw material to final product.
Whole set drawing approved by all IACS members; Material Fatigue Test on request; Stress Analysis on request; Stress actual test on quest.
Magnetic power testing, ultrasonic testing, and fluorescent penetrant inspection.
Load test machine up to 2000Ton.
Anchor Chain Accessories:
1.Kenter Shackle2.Joining Shackle3.End Shackle4.Swivel5.Swivel Shackle6.C Shaped Connecting Shackle7.Slim Kenter Shackle8.Forelock Shackle9.Pear Shaped Shackle10.Buoy Shackle11.Swivel Group12.Triangle Plate13.Round Link
Loading Details:
1.For LCL loading, the package method include sacks, iron cages, pallets
2.For FCL loading, the chains will be bound with STEEL WIRE ROPE and load in container direactly
Size | 16~162mm |
Grade | Grade U3 U4 also there are Grade U1 U2 |
Material | High Stength Steel Round Bar |
Production Capacity | 2200T/month with 30sets flash But welded Line |
Works | 100~150 skilled workers our workers is qualifed by IACS |
Delivery time | 1~15days, we keep some in stock for details please check with our sales team |
Certificate | KR LR BV NK CCS DNV GL ABS RMRS RINA... |
Standard | Production accordingly to ISO 1704 GBT549 |
Also We can offer Install and cleaning a foul hawse service at all chinese port shipyard and in Singapore port, for some famous International Port we have local cooperator to offer one shop service.
China Anchor Chain Factory Fast Delivery,China Shipping anchor chain factory, manufacturer, supplier, China Anchor Chain, Stud Link Anchor Chain Factory Fast Delivery,stockiest,for sales,DNV GL BV ABS LR CCS NK KR Class
Studlink Anchor Chain Technical Data
Chain Size | Dimensions Inches | Grade 2 | Grade 3 | |||||
Inches | MM | A | B | C | Proof | Break | Proof | Break |
5/8 | 16 | 3 3/4 | 2 1/4 | 13 3/4 | 23745 | 33220 | 33220 | 47465 |
3/4 | 19 | 4 1/2 | 2 5/8 | 16 1/2 | 34000 | 47600 | 47600 | 68000 |
13/16 | 21 | 4 7/8 | 2 7/8 | 17 7/8 | 39800 | 55700 | 55700 | 79500 |
7/8 | 22 | 5 1/4 | 3 1/8 | 19 1/4 | 46000 | 64400 | 64400 | 91800 |
15/16 | 24 | 5 5/8 | 3 5/16 | 20 5/8 | 52600 | 73700 | 73700 | 10500 |
1 | 25 | 6 | 3 9/16 | 22 | 59700 | 83600 | 83600 | 119500 |
1 1/16 | 27 | 6 3/8 | 3 3/4 | 23 3/8 | 67200 | 94100 | 94100 | 135000 |
1 1/8 | 29 | 6 3/4 | 4 | 24 3/4 | 75000 | 105000 | 105000 | 150000 |
1 3/16 | 30 | 7 1/8 | 4 1/4 | 26 1/8 | 83400 | 116500 | 116500 | 167000 |
1 1/4 | 32 | 7 1/2 | 4 1/2 | 27 1/2 | 92200 | 129000 | 129000 | 184000 |
1 5/16 | 33 | 7 7/8 | 4 3/4 | 28 7/8 | 101500 | 142000 | 142000 | 203000 |
1 3/8 | 34 | 8 1/4 | 4 15/16 | 30 1/4 | 111000 | 155000 | 155000 | 222000 |
1 7/16 | 36 | 8 5/8 | 5 3/16 | 31 5/8 | 120500 | 139000 | 139000 | 241000 |
1 1/2 | 38 | 9 | 5 3/8 | 33 | 131000 | 183500 | 183500 | 262000 |
1 9/16 | 40 | 9 3/8 | 5 5/8 | 34 3/8 | 142000 | 198500 | 198500 | 284000 |
1 5/8 | 42 | 9 3/4 | 5 7/8 | 35 3/4 | 153000 | 214000 | 214000 | 306000 |
1 11/16 | 43 | 10 1/8 | 6 1/16 | 37 1/8 | 166500 | 229000 | 229000 | 327000 |
1 3/4 | 44 | 10 1/2 | 6 5/16 | 38 1/2 | 176000 | 247000 | 247000 | 352000 |
1 13/16 | 46 | 10 7/8 | 6 1/2 | 39 7/8 | 188500 | 264000 | 264000 | 377000 |
1 7/8 | 48 | 11 1/4 | 6 3/4 | 41 1/4 | 201000 | 281000 | 281000 | 402000 |
1 15/16 | 50 | 11 5/8 | 7 | 42 5/8 | 214000 | 299000 | 299000 | 427000 |
2 | 51 | 12 | 7 3/16 | 44 | 227000 | 318000 | 318000 | 454000 |
2 1/16 | 52 | 12 3/8 | 7 7/16 | 45 3/8 | 241000 | 337000 | 337000 | 482000 |
2 1/8 | 54 | 12 3/4 | 7 5/8 | 46 3/4 | 255000 | 357000 | 357000 | 510000 |
2 3/16 | 56 | 13 1/8 | 7 7/8 | 48 1/8 | 269000 | 377000 | 377000 | 538000 |
2 1/4 | 58 | 13 1/2 | 8 1/8 | 49 1/2 | 284000 | 396000 | 396000 | 570000 |
2 5/16 | 59 | 13 7/8 | 8 5/16 | 50 7/8 | 299000 | 418000 | 418000 | 598000 |
2 3/8 | 60 | 14 1/4 | 8 9/16 | 52 1/4 | 314000 | 440000 | 440000 | 628000 |
2 7/16 | 62 | 14 5/8 | 8 3/4 | 53 5/8 | 330000 | 462000 | 462000 | 660000 |
2 1/2 | 64 | 15 | 9 | 55 | 346000 | 484000 | 484000 | 692000 |
2 9/16 | 66 | 15 3/8 | 9 1/4 | 56 3/8 | 363000 | 507000 | 507000 | 726000 |
2 5/8 | 67 | 15 3/4 | 9 7/16 | 57 3/4 | 379000 | 530000 | 530000 | 758000 |
2 11/16 | 68 | 16 1/8 | 9 11/16 | 59 1/8 | 396000 | 554000 | 554000 | 792000 |
2 3/4 | 70 | 14 1/2 | 9 7/8 | 60 1/2 | 413000 | 578000 | 578000 | 826000 |
2 13/16 | 71 | 14 7/8 | 10 1/8 | 61 7/8 | 431000 | 603000 | 603000 | 861000 |
2 7/8 | 73 | 17 1/4 | 10 3/8 | 63 1/4 | 449000 | 628000 | 628000 | 897000 |
2 15/16 | 75 | 17 5/8 | 10 9/16 | 64 5/8 | 467000 | 654000 | 654000 | 934000 |
3 | 76 | 18 | 10 13/16 | 66 | 485000 | 679000 | 679000 | 970000 |
3 1/16 | 78 | 18 3/8 | 11 | 67 3/8 | 504000 | 705000 | 705000 | 1008000 |
3 1/8 | 79 | 18 3/4 | 11 1/4 | 68 3/4 | 523000 | 732000 | 732000 | 1046000 |
3 3/16 | 81 | 19 1/8 | 11 1/2 | 70 1/8 | 542000 | 759000 | 759000 | 1084000 |
3 1/4 | 83 | 19 1/2 | 11 11/16 | 71 1/2 | 562000 | 787000 | 787000 | 1124000 |
3 5/16 | 84 | 19 7/8 | 11 15/16 | 72 7/8 | 582000 | 814000 | 814000 | 1163000 |
3 3/8 | 86 | 20 1/4 | 12 1/8 | 74 1/4 | 602000 | 843000 | 843000 | 1240000 |
3 7/16 | 87 | 20 5/8 | 12 3/8 | 75 5/8 | 622000 | 871000 | 871000 | 1244000 |
3 1/2 | 90 | 21 | 12 5/8 | 77 | 643000 | 900000 | 900000 | 1285000 |
3 5/8 | 92 | 21 3/4 | 12 15/16 | 79 3/4 | 685000 | 958000 | 958000 | 1369000 |
3 3/4 | 95 | 22 1/2 | 13 3/8 | 82 1/2 | 728000 | 101900 | 101900 | 1455000 |
3 7/8 | 98 | 23 1/4 | 14 | 85 1/4 | 772000 | 1080000 | 1080000 | 1543000 |
4 | 102 | 24 | 14 3/8 | 88 | 816000 | 1143000 | 1143000 | 1632000 |
China Largest Studlink Anchor Chain manufactuer factory supplier wholsaler distributer anchor chain marine anchor chain ship anchor chain studlink anchor chain stud link anchor chain studlink anchor chain price studlink anchor chain in stock studlink anchor chain fast delivery
Anchor Chain Factory Manufacture Supplier Wholesaler Anchor Chain Marine Anchor Chain with KR LR BV NK CCS RMRS RINA DNV ABS GL
Also can offer High Holding Power Anchor Stockless Anchor AC-14 Anchor, MK5 Anchor, Flipper Delta Anchor, Danforth Anchor, Pool Anchor, SpekAnchor, Hall Anchor
China Largest Anchor Chain manufactuer factory supplier wholsaler distributer anchor chain marine anchor chain ship anchor chain studlink anchor chain stud link anchor chain studlink anchor chain price anchor chain in stock anchor chain fast delivery
