107MM Stud Link Anchor Chain -China Shipping Anchor Chain

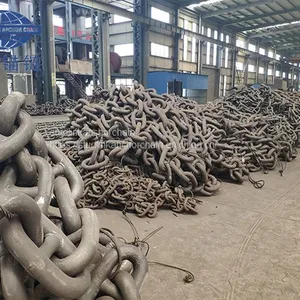

107MM Stud Link Anchor Chain -China Shipping Anchor Chain thumbnail-1

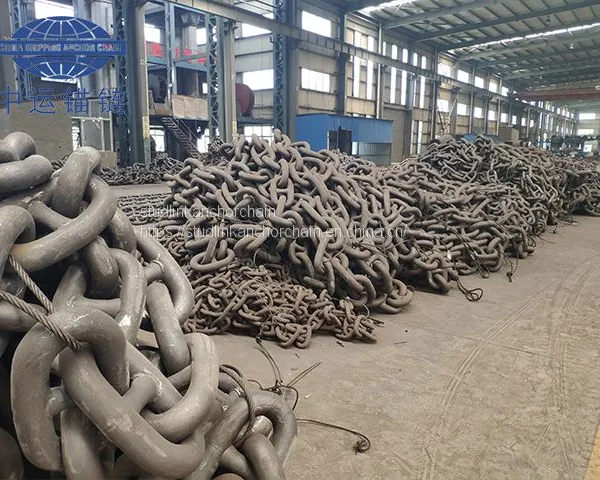

107MM Stud Link Anchor Chain -China Shipping Anchor Chain photo-1
US$ 900 - 1000 MOQ: 1 Ton
Key Specifications
Get Latest Price
Brand Name:
China Shipping Anchor Chain
Place of Origin:
China
Model Number:
107MM Stud Link Anchor Chain
Contact Supplier Request Quote Chat Now
Studlinkanchorchain
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name China Shipping Anchor Chain
Place of Origin China
Model Number 107MM Stud Link Anchor Chain
Part Other

107MM Stud Link Anchor Chain-China Shipping Anchor Chain


Our advantage:

A. Delivery: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

B. Warranty: Our warranty for our anchor chains can be 2-4 years.

Anchor Chains,Anchor Chain Factory,Marine Anchor Chain

Production Procedure:

Manufacturing process quality control from raw material to final product.
Whole set drawing approved by all IACS members; Material Fatigue Test on request; Stress Analysis on request; Stress actual test on quest.
Magnetic power testing, ultrasonic testing, and fluorescent penetrant inspection.
Load test machine up to 2000Ton.

Anchor Chain Accessories:
1.Kenter Shackle2.Joining Shackle3.End Shackle4.Swivel5.Swivel Shackle6.C Shaped Connecting Shackle7.Slim Kenter Shackle8.Forelock Shackle9.Pear Shaped Shackle10.Buoy Shackle11.Swivel Group12.Triangle Plate13.Round Link

Loading Details:

1.For LCL loading, the package method include sacks, iron cages, pallets

2.For FCL loading, the chains will be bound with STEEL WIRE ROPE and load in container direactly

Size

 16~162mm
Grade Grade U3 U4 also there are Grade U1 U2
Material High Stength Steel Round Bar
Production Capacity 2200T/month with 30sets flash But welded Line
Works 100~150 skilled workers our workers is qualifed by IACS
Delivery time 1~15days, we keep some in stock for details please check with our sales team
Certificate KR LR BV NK CCS DNV GL ABS RMRS RINA...
Standard Production accordingly to ISO 1704 GBT549

Also We can offer Install and cleaning a foul hawse service at all chinese port shipyard and in Singapore port, for some famous International Port we have local cooperator to offer one shop service.

China Anchor Chain Factory Fast Delivery,China Shipping anchor chain factory, manufacturer, supplier, China Anchor Chain, Stud Link Anchor Chain Factory Fast Delivery,stockiest,for sales,DNV GL BV ABS LR CCS NK KR Class

Studlink Anchor Chain Technical Data

Stud Link Anchor Chain Factory-China Shipping Anchor Chain 0

Stud Link Anchor Chain Factory-China Shipping Anchor Chain 1












Chain Size Dimensions Inches Grade 2 Grade 3
Inches MM A B C Proof Break Proof Break
5/8 16 3 3/4 2 1/4 13 3/4 23745 33220 33220 47465
3/4 19 4 1/2 2 5/8 16 1/2 34000 47600 47600 68000
13/16 21 4 7/8 2 7/8 17 7/8 39800 55700 55700 79500
7/8 22 5 1/4 3 1/8 19 1/4 46000 64400 64400 91800
15/16 24 5 5/8 3 5/16 20 5/8 52600 73700 73700 10500
1 25 6 3 9/16 22 59700 83600 83600 119500
1 1/16 27 6 3/8 3 3/4 23 3/8 67200 94100 94100 135000
1 1/8 29 6 3/4 4 24 3/4 75000 105000 105000 150000
1 3/16 30 7 1/8 4 1/4 26 1/8 83400 116500 116500 167000
1 1/4 32 7 1/2 4 1/2 27 1/2 92200 129000 129000 184000
1 5/16 33 7 7/8 4 3/4 28 7/8 101500 142000 142000 203000
1 3/8 34 8 1/4 4 15/16 30 1/4 111000 155000 155000 222000
1 7/16 36 8 5/8 5 3/16 31 5/8 120500 139000 139000 241000
1 1/2 38 9 5 3/8 33 131000 183500 183500 262000
1 9/16 40 9 3/8 5 5/8 34 3/8 142000 198500 198500 284000
1 5/8 42 9 3/4 5 7/8 35 3/4 153000 214000 214000 306000
1 11/16 43 10 1/8 6 1/16 37 1/8 166500 229000 229000 327000
1 3/4 44 10 1/2 6 5/16 38 1/2 176000 247000 247000 352000
1 13/16 46 10 7/8 6 1/2 39 7/8 188500 264000 264000 377000
1 7/8 48 11 1/4 6 3/4 41 1/4 201000 281000 281000 402000
1 15/16 50 11 5/8 7 42 5/8 214000 299000 299000 427000
2 51 12 7 3/16 44 227000 318000 318000 454000
2 1/16 52 12 3/8 7 7/16 45 3/8 241000 337000 337000 482000
2 1/8 54 12 3/4 7 5/8 46 3/4 255000 357000 357000 510000
2 3/16 56 13 1/8 7 7/8 48 1/8 269000 377000 377000 538000
2 1/4 58 13 1/2 8 1/8 49 1/2 284000 396000 396000 570000
2 5/16 59 13 7/8 8 5/16 50 7/8 299000 418000 418000 598000
2 3/8 60 14 1/4 8 9/16 52 1/4 314000 440000 440000 628000
2 7/16 62 14 5/8 8 3/4 53 5/8 330000 462000 462000 660000
2 1/2 64 15 9 55 346000 484000 484000 692000
2 9/16 66 15 3/8 9 1/4 56 3/8 363000 507000 507000 726000
2 5/8 67 15 3/4 9 7/16 57 3/4 379000 530000 530000 758000
2 11/16 68 16 1/8 9 11/16 59 1/8 396000 554000 554000 792000
2 3/4 70 14 1/2 9 7/8 60 1/2 413000 578000 578000 826000
2 13/16 71 14 7/8 10 1/8 61 7/8 431000 603000 603000 861000
2 7/8 73 17 1/4 10 3/8 63 1/4 449000 628000 628000 897000
2 15/16 75 17 5/8 10 9/16 64 5/8 467000 654000 654000 934000
3 76 18 10 13/16 66 485000 679000 679000 970000
3 1/16 78 18 3/8 11 67 3/8 504000 705000 705000 1008000
3 1/8 79 18 3/4 11 1/4 68 3/4 523000 732000 732000 1046000
3 3/16 81 19 1/8 11 1/2 70 1/8 542000 759000 759000 1084000
3 1/4 83 19 1/2 11 11/16 71 1/2 562000 787000 787000 1124000
3 5/16 84 19 7/8 11 15/16 72 7/8 582000 814000 814000 1163000
3 3/8 86 20 1/4 12 1/8 74 1/4 602000 843000 843000 1240000
3 7/16 87 20 5/8 12 3/8 75 5/8 622000 871000 871000 1244000
3 1/2 90 21 12 5/8 77 643000 900000 900000 1285000
3 5/8 92 21 3/4 12 15/16 79 3/4 685000 958000 958000 1369000
3 3/4 95 22 1/2 13 3/8 82 1/2 728000 101900 101900 1455000
3 7/8 98 23 1/4 14 85 1/4 772000 1080000 1080000 1543000
4 102 24 14 3/8 88 816000 1143000 1143000 1632000


China Largest Studlink Anchor Chain manufactuer factory supplier wholsaler distributer anchor chain marine anchor chain ship anchor chain studlink anchor chain stud link anchor chain  studlink anchor chain price studlink anchor chain in stock studlink anchor chain fast delivery


Stud Link Anchor Chain Factory-China Shipping Anchor Chain 2Stud Link Anchor Chain Factory-China Shipping Anchor Chain 3Stud Link Anchor Chain Factory-China Shipping Anchor Chain 4

Stud Link Anchor Chain Factory-China Shipping Anchor Chain 5

Anchor Chain Factory Manufacture Supplier Wholesaler Anchor Chain Marine Anchor Chain with KR LR BV NK CCS RMRS RINA DNV ABS GL

Also can offer High Holding Power Anchor Stockless Anchor AC-14 Anchor, MK5 Anchor, Flipper Delta Anchor, Danforth Anchor, Pool Anchor, SpekAnchor, Hall Anchor

China Largest Anchor Chain manufactuer factory supplier wholsaler distributer anchor chain marine anchor chain ship anchor chain studlink anchor chain stud link anchor chain  studlink anchor chain price anchor chain in stock  anchor chain fast delivery


Product Tags: Anchor Chain , 107MM Studlink Anchor Chain , China Anchor Chain , Marine Anchor Chain , 107MM Stud link anchor chain , Anchor Chain Manufatuer
