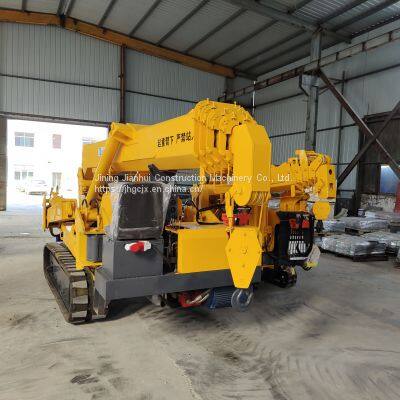

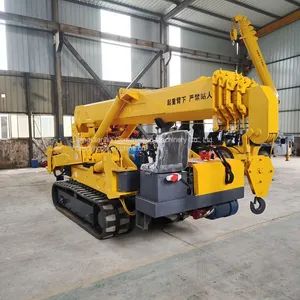

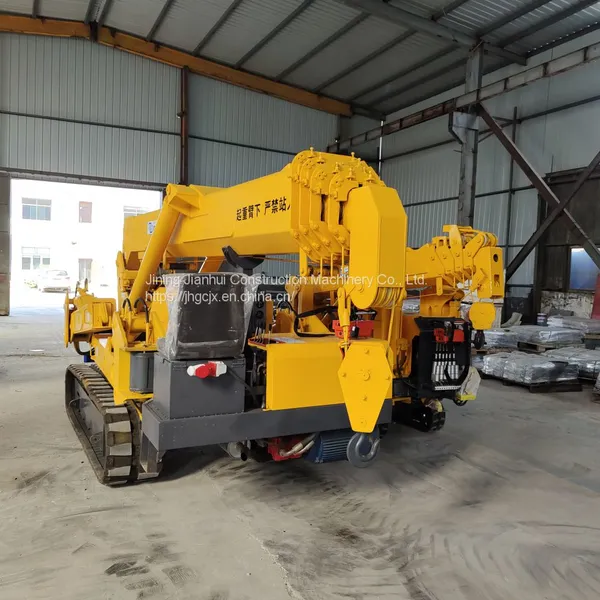

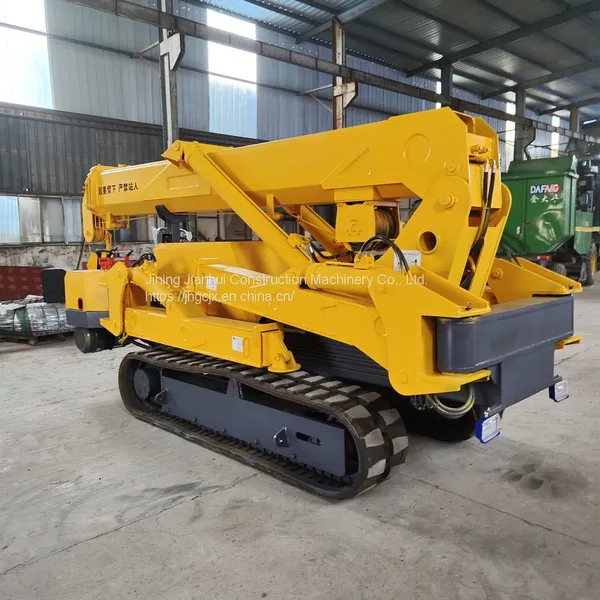

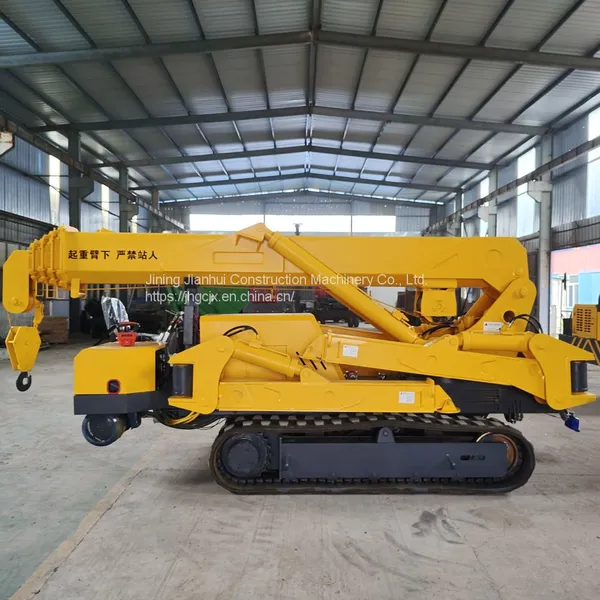

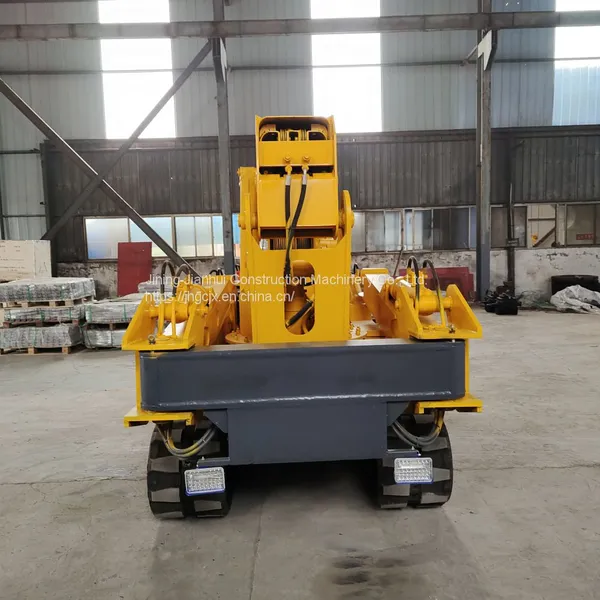

Supply Micro Crawler Crane

Crane capacity

t×m

5t×2.7m

Max. working radius

m×t

14m×0.5t

Max.lifting height (on the ground)

m

16.8m

Max.lifting height (underground)

m

-20.5m (4 falls)

Winch system

Hook speed

m/min

12m/min [18.0m/min] (4 layers, 4 falls)

Hoist wire rope

m

IWRC 11×WS(26) 11×95m

Telescoping system

Type

Fully automatic 5-section pentagonal telescopic boom

Boom length

m

4.735~16.475m

Boom telescoping stroke / time

m/sec

11.7m/54.2sec [41.3sec]

Boom hoist system

Hoist angle / time

deg/sec

0~78deg/24.5sec [17.0sec]

Swing system

swing angle / time

deg/rpm

360deg/2.1rpm [2.5rpm]

Outrigger system

Type

Extended Hydraulic cylinder direct acting
Setting up Hydraulic cylinder direct acting

Max.extended width

mm

(Lateral)3850× (Front)7800× (Rear)7800

Travel system

Type

Hydraulic motor driven , stepless speed changer

Travel speed

km/h

0~3.3

Gradability

deg

20

Crawler ground length × width

mm

2,720×410

Engine

Model

YunNei490

Displacement

L [cc]

1.642 [1,642]

Rated output

kw/min-1 [ps/rpm]

60kw/2400min-1

Starting method

Electric starting

Fuel / Fuel tank capacity

L

Diesel/60.0

Motor (MC405CRME)

Motor type

Totally enclosed fan-cooled motor 11kw, 3P 380V/480

Starting system

Inverter system (30Hz-60Hz)

Remote control system

Type

Wireless remote control

Micro/High speed mode

Available

Load display for transmitter

Available

Outrigger operation

Available

Voice

Available

Pick & Carry capacity

kg

500kg

Overall length × width ×height

mm

5000×1600×2200

Machine weight

kg

6700kg

Safety device

Overwind protection, Load indicator,
 Wire rope latch
