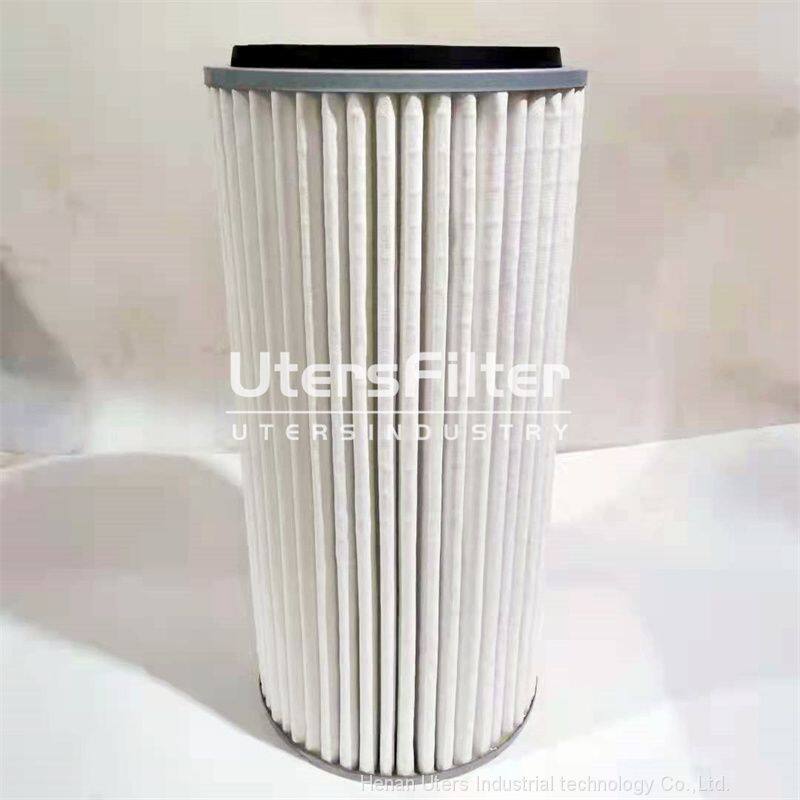

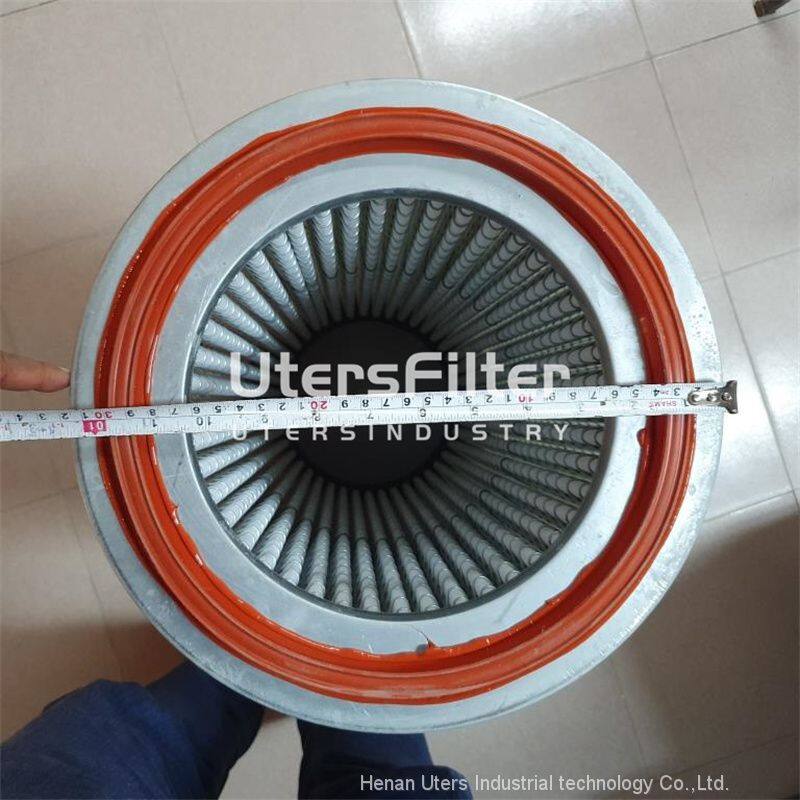

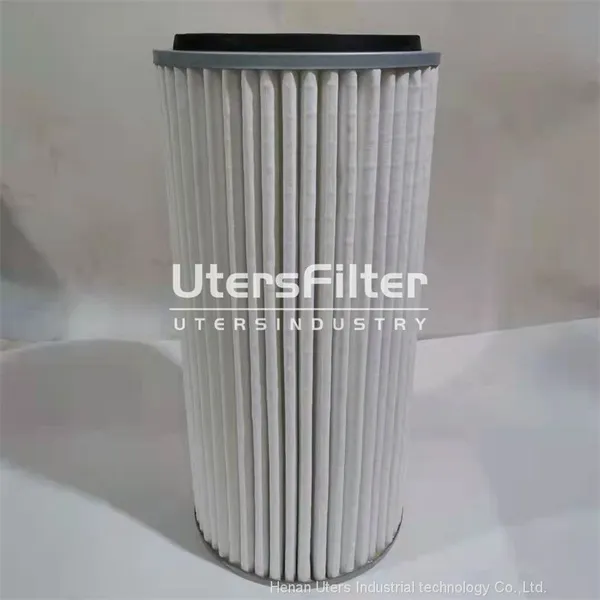

Help Center320x670mm UTERS Fly Ash Unloading Filter Element PTFE Coated Needle Felt Air Filter Element
Related Products
-
190x120x465 UTERS Shaker Dust Filter ElementUS$ 1 - 100MOQ: 1 Piece -
UTERS Replace Ingersoll Rand Air Compressor Oil and Gas Separation Core 22219174US$ 1 - 100MOQ: 1 Piece
-
Uters Replace Ingersoll Rand Air Compressor Oil and Gas Separation Core 54509435US$ 1 - 100MOQ: 1 Piece
-
UTERS Replace Sotras Air Compressor Pipeline Filter Compressed Air Precision Filter Element SM9952US$ 1 - 100MOQ: 1 Piece
-
SM9976 UTERS Replace Sotras Air Compressor Pipeline Filter Compressed Air Precision Filter ElementUS$ 1 - 100MOQ: 1 Piece
Filter Element Application:
The hydraulic oil filter element is an indispensable part of the pipeline series of the conveying medium. It is usually installed in the inlet filter of the hydraulic system to filter out metal particles and contaminants in the fluid medium and to protect the normal operation of machinery and equipment.
The application range of hydraulic oil filter elements is very wide, covering almost all industries: steel, electric power, metallurgy, shipbuilding, aviation, paper making, chemical industry, machine tools and construction machinery, construction machinery and other fields.
Filter Element Features:
1. Filtration accuracy: 1-200um filtration ratio: X≧99.9
2. Working pressure: (MAX) 21Mpa
3. Working medium: hydraulic oil; lubricating oil; fluid medium such as industrial water
4. Working temperature: -30℃~+110℃
5. Filter material: high-strength stainless steel mesh; glass fiber; filter paper and other materials
6. Structural strength: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa
Quality Standard:
ISO 2941------Collapse & Burst Resistant
ISO 2942------Fabrication & Integrity Test
ISO 2943------Material Compatibility with Fluids
ISO 3724------Flow Fatigue Characteristics
ISO 3968------Pressure Drop vs. Flow Rate
ISO 4572------Multi-pass Performance Testing
Package Pictures
Product Extension
3508094 Uters replace of Dollinger oil mist separation filter element
3507603 Uters replace of Dollingeroil mist separation filter element
DQ600KW25H1.0S Uters replace of 707 institute oil return filter element
QF9733W25H0.7C Uters replace of 707 Institute hydraulic filter element
CB13299-001V CB13299-002V Uters replace of MOOG hydraulic filter element
PL718-02-CN PL718-03-CN Uters replace of Hilliard hydraulic filter element
1700 R 005 BN4HC 1700 R 010 BN4HC Uters replace of HYDAC oil return filter element
0990 D003BH3HC Uters replace of HYDAC high pressure hydraulic filter element
300604 01.E.60.25VG.HR.E.P.VA Uters replace of Internormen hydraulic filter element
304939 01.E.150.25VG.HR.E.P.VA Uters replace of Internormen hydraulic filter element
