Automatic Backwash Filter (self-cleaning)
US$ 4000 - 8000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Lefilter
Place of Origin:
China
Model Number:
LESC-01
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao, Tianjin
Delivery Detail:
7 days
Related Products
-
Auto Back Wash Self Cleaning FilterUS$ 4000 - 8000MOQ: 1 Piece -
Automatic Self Cleaning Backwash FilterUS$ 4000 - 8000MOQ: 1 Piece
-
Auto Backwash Self Cleaning FilterUS$ 4000 - 8000MOQ: 1 Piece
-
Industrial Self-cleaning Filters for Water EmulsionsUS$ 4000 - 8000MOQ: 1 Piece
-
Self-cleaning Filter For Emulsion PaintUS$ 4000 - 8000MOQ: 1 Piece
Brand Name
Lefilter
Place of Origin
China
Model Number
LESC-01
Product introduction
When water runs through the water inlet into the filter cartridge, the impurities were intercepted on the inner wall of the filter
cartridge, and the clean water flows out of the outlet. As the impurities in the inner surface of the filter tube piles up, the
differential pressure between the inlet and outlet runs up to the pre-set value, the self-cleaning process will begin. The
self-cleaning process can also begin when it reaches the washing time or manual prefabrication. And it includes two steps: Open the automatic drain valve on the filter；The cleaning brush inside the filter mesh is drove by the motor, and the impurities stopped by the filter mesh will be discharged from the drain valve. When cleaning, the system does not cut off; the whole operation process of the filter is controlled by an intelligent control box which is equipped with the filter. Control mode consists of differential pressure, time, manual and PLC control.
cartridge, and the clean water flows out of the outlet. As the impurities in the inner surface of the filter tube piles up, the
differential pressure between the inlet and outlet runs up to the pre-set value, the self-cleaning process will begin. The
self-cleaning process can also begin when it reaches the washing time or manual prefabrication. And it includes two steps: Open the automatic drain valve on the filter；The cleaning brush inside the filter mesh is drove by the motor, and the impurities stopped by the filter mesh will be discharged from the drain valve. When cleaning, the system does not cut off; the whole operation process of the filter is controlled by an intelligent control box which is equipped with the filter. Control mode consists of differential pressure, time, manual and PLC control.

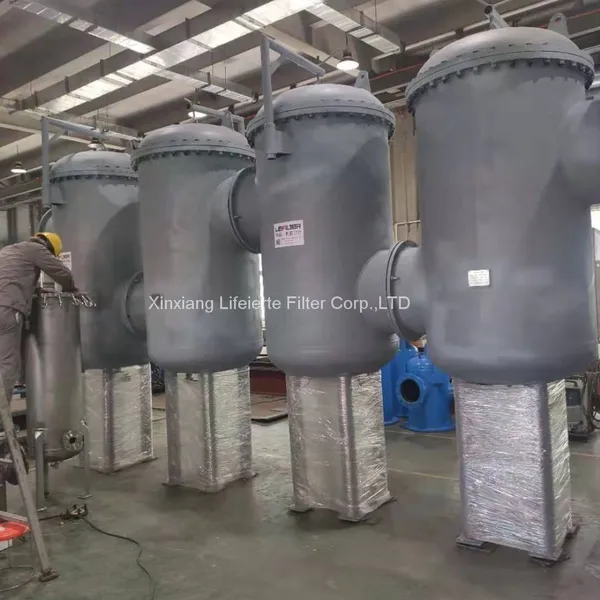

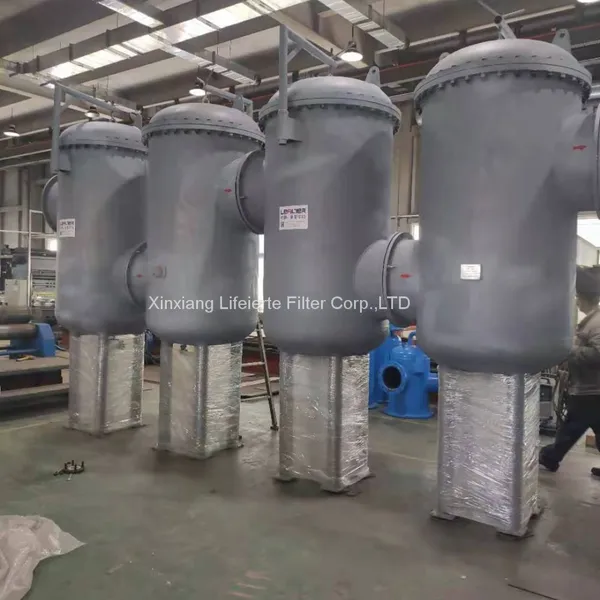

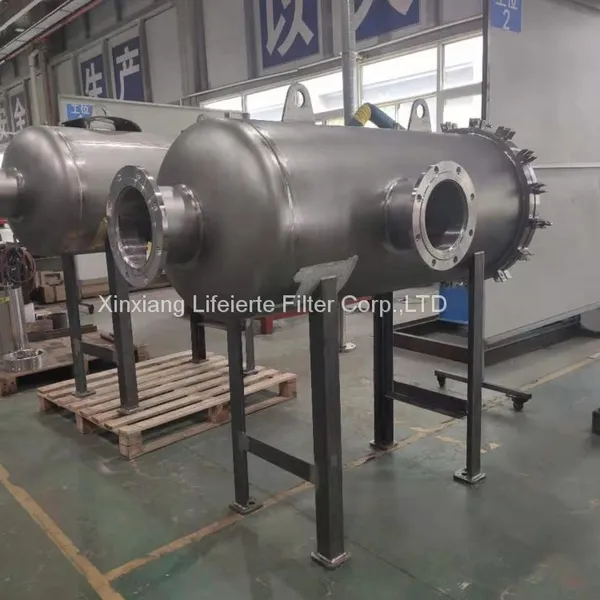

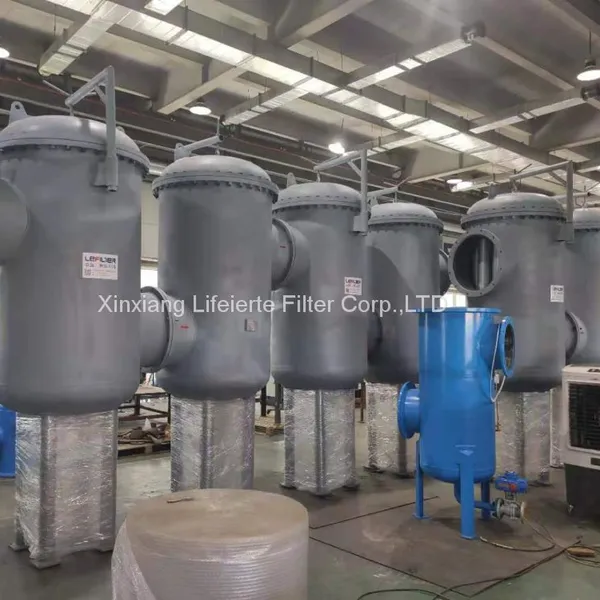

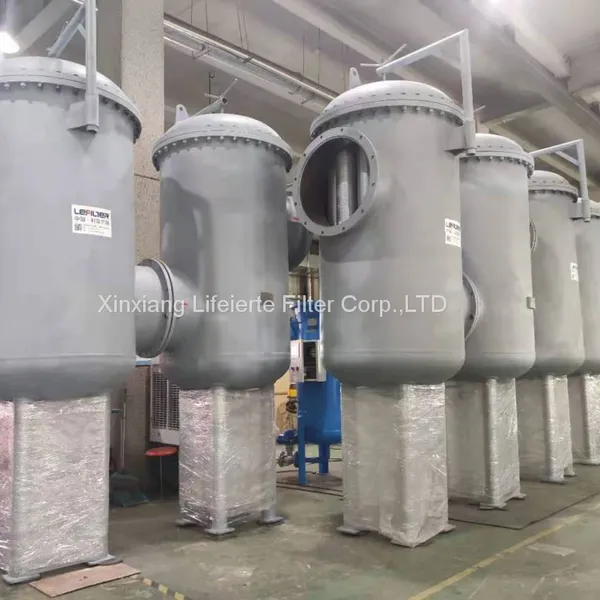

Workshop product display
Filter material of fully automatic sewage filter
Filter housing: carbon steel, 304 stainless steel, 316L stainless steel Filter screen: 304 stainless steel, 316 L stainless steel Brush holder: 304 stainless steel, 316 L stainless steel Drain valve: cast iron, stainless steel Controller: PVC, aluminum Seal gasket: EPDM rubber Cleaning brush: stainless steel, nylon
Product technical data sheet
Product structure diagram
The application of industrial filter:
cooling water filter; nozzle protection; sewage tertiary treatment; municipal water reuse; workshop water; pre-filtering of R.O. system; acid pickling; filtering of paper-making white water; injection molding machine; pasteurization system; vacuum pump system; air compressor system; continuous casting system; water treatment applications; refrigeration and heating water systems. The application of irrigation filter：groundwater; municipal water; rivers, lakes, sea water; orchard; nursery; Greenhouse; golf course; park.
