SpecificationName:Anti Aging Splitter Distribution Box
| Model No. | Type A |
|---|---|
| Cable inlet / outlet | 2/2 |
| Cable diameter(mm) | ≤Φ16 |
| Max splice capacity | 48 (single core) |
| Mounting type | Wall mounting(standard) / Pole mounting(optional) |
Features1. High quality synthetic plastics material, with aging resistant and UV resistant.
2. Special screw and key.suitable for wall mount or pole mounted.
3. Temporary pigtails storage area.

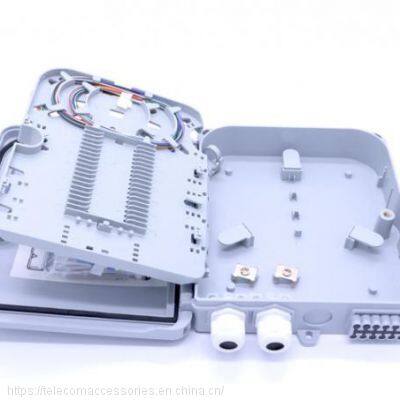

4. Bilayer structure,bottom for splicing and upper layer for splitting and distribution.
5. Turn-over middle panel,suitable for storage of butterfly cables,special lock device for cables.
6. Maximum 2 splice trays for satisfying different connection.
Application
The splitter distribution box is used for the distribution connection of cable and fiber optic communication devices. It leads out the optic signal from drop cable to pigtails by splicing in the box(also for surplus cables and adapters). It can be used for protective connection of cable and layout pigtails, and fiber optic terminations of optic access network. It’s applicable for wall or pole mounted outside the building when cables already come to building in the FTTH project.
It also finishes straight through connection, Cable shall be spliced with indoor cable after stripping and coiling in the box,which finishes straight through connection, complying to traditional network transportation requirement. The splitter distribution box can realize the functions of splitting,splicing,distribution and butterfly-like cable dispatch after cables to the floor in FTTH project. The bottom part is for incoming cable fixing,storage,splicing,and parking. The upper layer is for standard slot position for the installation of insert-style splitter. Cable strapping for splitter are optional.
