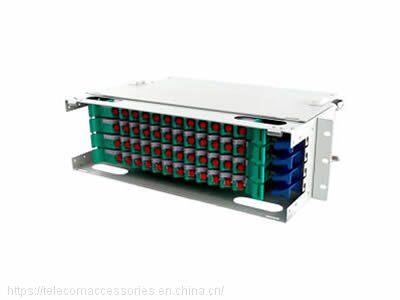

SpecificationName:High Density Optical Distribution Frame
Environmental requirements:
working temperature： +5℃～+40℃,Relative humidity： ≤85%（+30℃）,Atmospheric pressure：70KPa～106Kpa
Main technical specifications:
Insertion loss：≤0.2dB UPC Return loss：≥50dB Insert and plug durability：＞1000 APC Return loss：≥60dB
Thunder protective specifications:
High-pressure protection device of cabinet is insulation with cabinet's frame，Insulation resistance is not less than 1000MΩ/500V（direct current）
Withstand voltage between High-pressure protection device of cabinet and frame is not less than 3000V（direct current）/min no breakdown and no flashover.；
Features1 Large capacity,high density.
2 Modular structure,72 fibers fusion unit,splicing & distribution integration module,easy to adjust fusion and distribution units.
3 Suitable for inserting installation of SC,FC and ST adaptor.
4 Meet the demand of termination for both zonary cables and non-zonary cables.
5 Clear marking,fusion and distribution is marked for each fibers.
6 Every unit could be pulled out alone,easy to operate with the function of protecting fiber connection point and fiber storage.
7 Faced cable entry, safe and flexible,mounting against wall or back-to-back installation.
8 Separate incoming and outgoing ports for cables,pigtails and patch cords.
9 Reliable stripping,protection,fixing and earthing devices.
10 Supply all kinds of protection accessory to protect fibers against mechanical hurt.
11 Accomplishing scientific arrangement for patch cords,with clear mark for fiber distribution.
12 Ensure fiber and cable bend radius bigger than 40mm everywhere.
13 Each unit has the function of splicing and distribution.
Application
The Series is of large capacity and high density, applicable in the termination and distribution of partial trunk optical cable communication system,easy to realize connection,distribution and adjustment by through connection or cross-linking.
