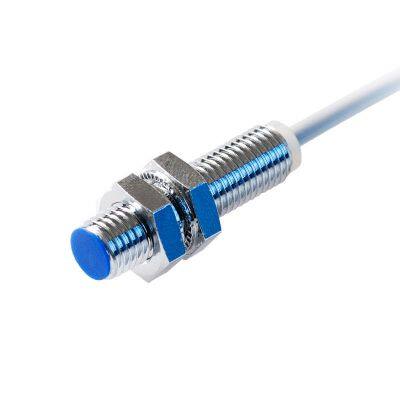

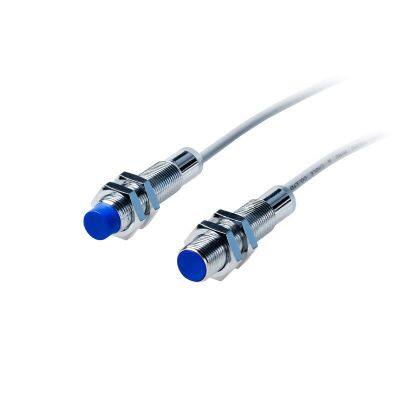

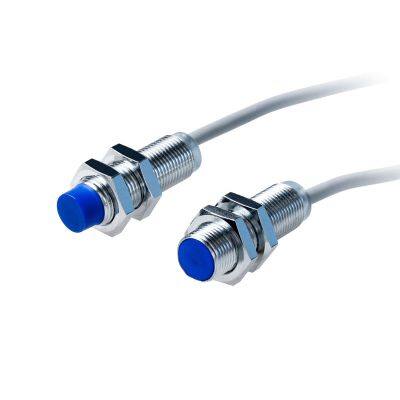

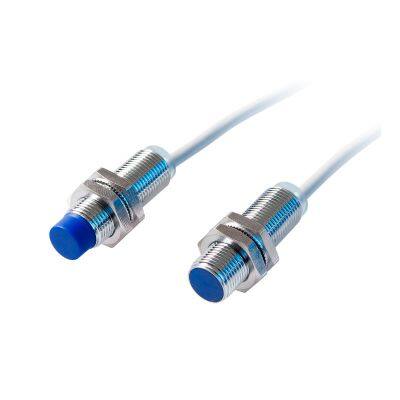

Help CenterNc Three Wires Inductive Hall Effect Current Proximity Switch Sensor
Related Products
-
Metal Head Inductive Transistor Output Hall Proximity Positioning Limit SensorUS$ 12 - 13MOQ: 10 Sets -
Metal Inductive Transistor Output Hall Proximity Sensor With CE CertificateUS$ 12 - 13MOQ: 10 Sets
-
Hg08 Inductive Hall Proximity Switch With High Repeat Positioning AccuracyUS$ 12 - 13MOQ: 10 Sets
-
Inductive Hall Effect Proximity Switch Sensor With High Positioning AccuracyUS$ 12 - 13MOQ: 10 Sets
-
IP67 Inductive Transistor Output Hall Effect Measurement Proximity SensorUS$ 12 - 13MOQ: 10 Sets
Parameter | |
Hall Proximity Switch | HG08 DC3-wires |
Detection distance | 10mm±10% |
Hysteresis | ≤15% |
Detection object | Φ8×5 magnet steel |
Supply voltage | 10~30V DC |
Un-load current | Max.5mA |
Voltage drop | Max.1V |
Switch frequency | Min.5KHz |
Control output | Transistor output |
Resistive load | Max.100mA |
Indicator | Operation indicator: Yellow |
Protection circuit | Over voltage, short circuit, reverse polarity protection |
Ambient temperature | －20℃~70℃(No-freezing) |
Storage temperature | －30℃~80℃(No-freezing) |
Humidity | 35~95%RH |
Housing material | Cr plated on Cu |
Thread specification | M8×1 |
Cable | Φ3, 3×0.12mm² |
Protection rating | IP67 (IEC) |
Model | ||
Installment | Product Model | Output Mode |
Embedded type | HG08B-10-NO-N | NPN Normal open(NO) |
HG08B-10-NO-S | NPN Normal open(NO) | |
HG08B-10-NC-N | NPN Normal close(NC) | |
HG08B-10-NC-S | NPN Normal close(NC) | |
HG08B-10-PO-N | PNP Normal open(PO) | |
HG08B-10-PO-S | PNP Normal close(PO) | |
HG08B-10-PC-N | PNP Normal open(PC) | |
HG08B-10-PC-S | PNP Normal close(PC) | |
