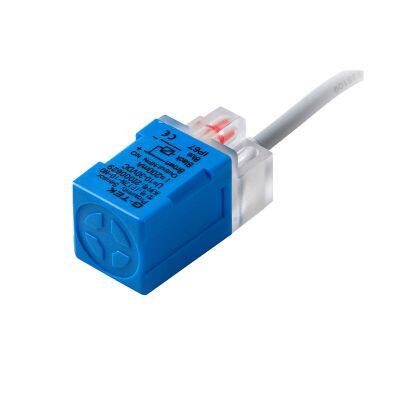

Help CenterInductive Plastic Proximity Sensor for Barrier-Free Optical Turnstile
Related Products
-
Three Wires Plastic Smart Inductive Proximity Switch for ElevatorUS$ 6 - 7MOQ: 10 Sets -
NPN Plastic Smart Inductive Proximity Switch for Elevator Passenger DetectionUS$ 6 - 7MOQ: 10 Sets
-
Three Wires Inductive Plastic Proximity Switch for Flap Barrier TurnstileUS$ 6 - 7MOQ: 10 Sets
-
Plastic PNP Smart Capacitive Inductive Proximity Switch for Access AutomationUS$ 6 - 7MOQ: 10 Sets
-
Wholesale IP67 Transistor Output NPN Plastic Square Proximity Inductive SensorUS$ 6 - 7MOQ: 10 Sets
Parameter | ||
Square Proximity Switch | IF17DC3-wires Standard housing | |
Standard detection object | 18mm×18mm×1mm (Fe360 carbon steel) | |
Detection distance | embedded | 5mm±10% |
Hysteresis | 5~20% | |
Set distance | embedded | 0-4mm |
Supply voltage | 10~30V DC | |
Un-load current | Max.20mA | |
Voltage drop | Max.1.7V | |
Switch frequency | 500Hz | |
Residual voltage | MAX.1.3VDC | |
Control output | Transistor output，open collector | |
Resistive load | Max.200mA | |
Indicator | Operation indicator:Red | |
Protection circuit | Short circuit 、 reverse polarity protection | |
Ambient temperature | －25℃~70℃ (No-freezing) | |
Storage temperature | －30℃~80℃ (No-freezing) | |
Humidity | 35~95%RH | |
Housing material | ABS | |
Shape and size | As dimension | |
Cable | Φ4, 3×0.2mm² | |
Protection rating | IP67 (IEC) | |
Model | ||
Installment | Product Model | Output Mode |
Embedded type | IF17B-05-NO | NPN Normal open(NO) |
IF17B-05-NC | NPN Normal close(NC) | |
IF17B-05-PO | PNP Normal open(PO) | |
IF17B-05-PC | PNP Normal close(PC) | |
Exposed type | IF17N-10-NO | NPN Normal open(NO) |
