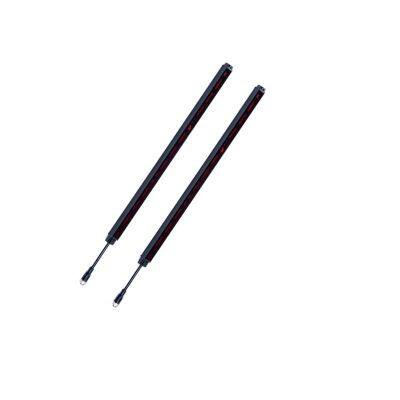

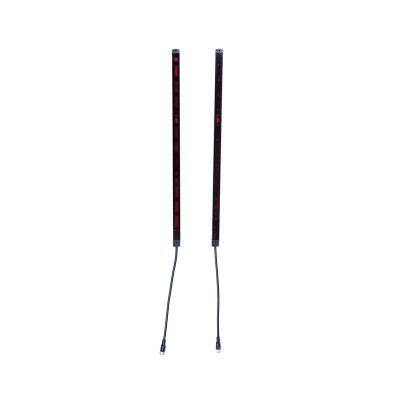

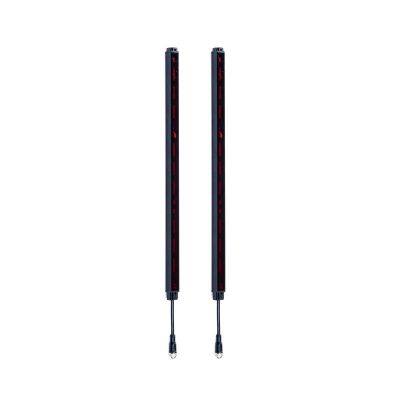

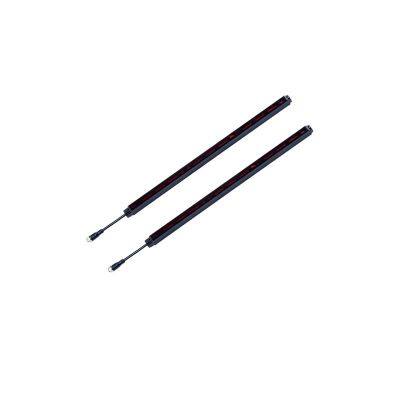

IP67 Cost-Effective Light Curtain Sensor for Entry Sliding Factory Door
US$ 160 - 170
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
G-TEK
Place of Origin:
China
Model Number:
LSE light curtain sensor
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
14 days
Related Products
-
Economical Light Monitoring Curtain Sensor for Electric Security Cantilever GatesUS$ 160 - 170MOQ: 1 Set -
Nc Economic Light Curtain Sensor for Industrial Suspended Sliding GateUS$ 160 - 170MOQ: 1 Set
-
Economical Light Barrier Curtains Sensor for Elevator Position Limit SolutionUS$ 160 - 170MOQ: 1 Set
-
Nc Multi-Parameter Through Beam Light Curtain Sensor for Pedestrian SafetyUS$ 160 - 170MOQ: 1 Set
-
Multiple-Beam Infrared Cost-Effective Through Beam Light Curtain SensorUS$ 160 - 170MOQ: 1 Set
Brand Name
G-TEK
Place of Origin
China
Model Number
LSE light curtain sensor
Usage
Other, logistics
Theory
Other, light curtain sensor
Output
Switching Transducer
Technical Parameters | ||||
Light Curtain | LSE | |||
Supply voltage | 24 VDC±20% | |||
Supply Current | ≤150mA | |||
Detection distance | 0.5-2m | 1-6m | ||
Space between optical axis | 40mm | 80mm | 160mm | |
Optical axis number | 12-48 | 6-24 | 4-12 | |
Mini detection object | 80mm | 90mm | 170mm | |
Control output | Switch output | Detection output，transistor PNP/NPN for selecting; output current＜150mA(30V DC) | ||
Indicator | Emitter | Power indicator (red)、Fault indicator (Red) | ||
Receiver | Power indicator (red)、Sheltering indicator (Red) | |||
Work mode | Normal Open (O)、Normal Close ( C)for selecting | |||
Response time | 1~7.5ms(on product model basis) | |||
Communication mode | Optical synchronous | |||
Work Temperature | -30℃~60℃ | |||
Work Humidity | 0~95%RH | |||
Housing material | Black PC housing, red PC window | |||
Protection rate | IEC IP67 | |||
