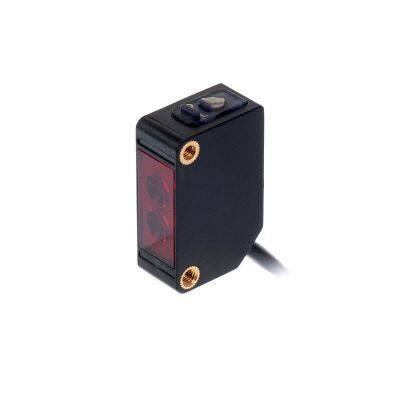

Help CenterRetro-Reflective Photoelectric Switch Sensor for Logistics Convey Spacing Control
Related Products
-
PNP Plastic Diffuse Reflection Optical Sensor for Object DetectionUS$ 16 - 17MOQ: 10 Sets -
IP67 NPN Plastic Diffuse Reflection Photo Sensor With CE CertificateUS$ 16 - 17MOQ: 10 Sets
-
15m Infrared Through Beam Photo Sensor for Machinery Carrying EquipmentUS$ 15 - 17MOQ: 10 Sets
-
Infrared Through Beam Optical Sensor for Logistics Tray IdentificationUS$ 15 - 17MOQ: 10 Sets
-
NPN Infrared Through Beam Photo Sensor Exporters With CE CertificateUS$ 15 - 17MOQ: 10 Sets
Product Parameters | |
Photoelectric sensor | PMF21R |

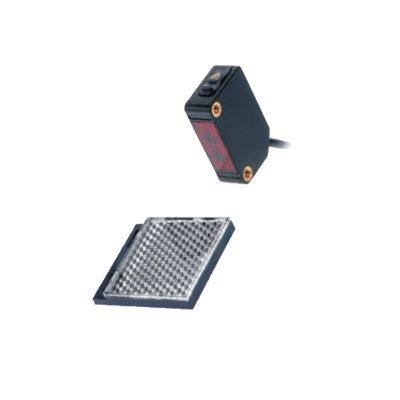

Detection type | Retro-reflective type |
Detection distance | 0.01~5.5m(RP02) |
Light | 630nm RED LED |
Supply voltage | 10-30v DC |
No-load current | Max.15mA |
Response time | Max.1ms |
Control output | NPN open collector，Load voltage: Max.30VDC， Load current: Max.100mA，Voltage drop: Max.0.7VDC； PNP open collector，Output voltage: supply voltage-0.7V， Load current: Max.100mA； |
Operation mode | Light on/Dark on for selecting |
Indicator | Action indicator: Yellow; Signal strength: Green |
Ambient temp/humidity | -20℃~60℃/35~90%RH (No condensation nor freezing) |
Storage temp/humidity | -25℃~70℃/35~95%RH (No condensation nor freezing) |
Housing material | Housing: ABS Lens cover: PMMA |
Shape and size | As dimension |
Protection rating | IP67 (IEC) |
Accessory | Bracket: IB 10; Screw: M3X12 |
Model | |||
Installation | Product Model | Detection Distance | Light Spot |
Retro—reflective type | PMF21R-NF | 0.01-3.5m | Φ30mm (350mm) |
PMF21R-PF | 0.01-3.5m | Φ30mm (350mm) | |
PMF21RS-NF | 0.01-3.5m | Φ10mm (350mm) | |
PMF21RS-PF | 0.01-3.5m | Φ10mm (350mm) | |
PMF21RSA-NF | 0.20-5.5m | Φ10mm (350mm) | |
PMF21RSA-PF | 0.20-5.5m | Φ10mm (350mm) | |
