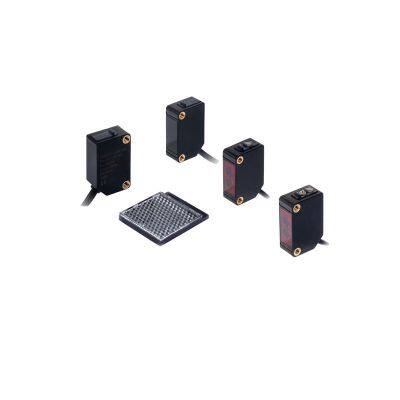

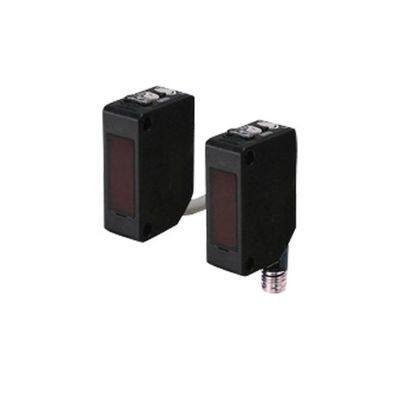

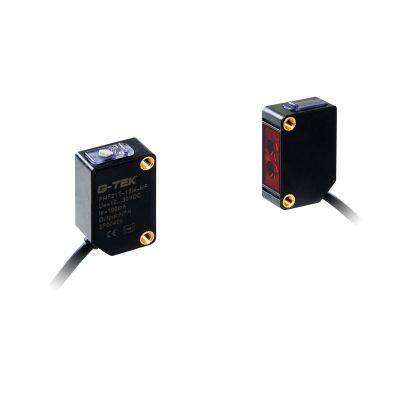

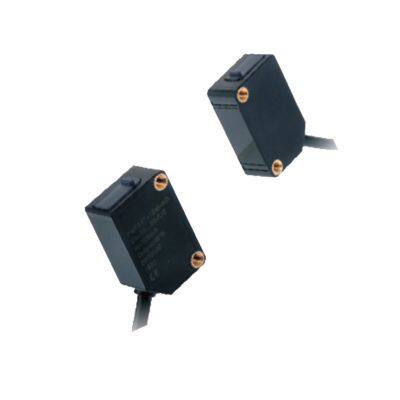

Help CenterThrough Beam Photo Sensor With 15m Distance for Flap Barrier
Related Products
-
30m Through Beam Infrared Photoelectric Switch for Pedestrian Barrier GateUS$ 15 - 17MOQ: 10 Sets -
15m Infrared PNP Photo Sensor for Optical Waist Height TurnstilesUS$ 15 - 17MOQ: 10 Sets
-
Opposed 15m Infrared Photoelectric Sensor for Turnover Box MeasurementUS$ 15 - 17MOQ: 10 Sets
-
PNP Safety Through Beam Photo Sensor for Object Intelligent SortingUS$ 15 - 17MOQ: 10 Sets
-
15m Opposed Infrared Photoelectric Sensor for Logistics Object Spacing ControlUS$ 15 - 17MOQ: 10 Sets
Product Parameters | ||
Photoelectric sensor | PMF21T DC3-wires | |
Detection type | Opposed type | |
Detection object | MinΦ12mm opaque object | |
Detection distance | 15m/30m | |
Light | Infrared LED | |
Supply voltage | 10-30v DC | |
No-load current | Emitter | 11mA.Max |
Receiver | 12mA.Max | |
Response time | Max.1ms | |
Control output | NPN open collector，Load voltage: Max.30VDC， Load current: Max.100mA，Voltage drop: Max.0.7VDC； PNP open collector，Output voltage: supply voltage-0.7V， Load current: Max.100mA； | |
Indicator | Emitter: Power indicator: Green； Receiver: Action indicator: Yellow; Signal strength: Green | |
Ambient temp/humidity | -20℃~60℃/0~90%RH (No condensation nor freezing) | |
Storage temp/humidity | -25℃~70℃/0~90%RH (No condensation nor freezing) | |
Housing material | Housing: ABS Lens cover: PMMA | |
Shape and size | As dimension | |
Protection rating | IP67 (IEC) | |
Accessory | Bracket: IB 10; Screw: M3X12 | |
Model | ||
Installation | Product Model | Detection Distance |
Opposed type | PMF21T-15M-ND | 15m |
PMF21T-15M-NL | 15m | |
PMF21T-15M-PD | 15m | |
PMF21T-15M-PL | 15m | |
PMF21T-30M-ND | 30m | |
PMF21T-30M-NL | 30m | |
PMF21T-30M-PD | 30m | |
PMF21T-30M-PL | 30m | |
