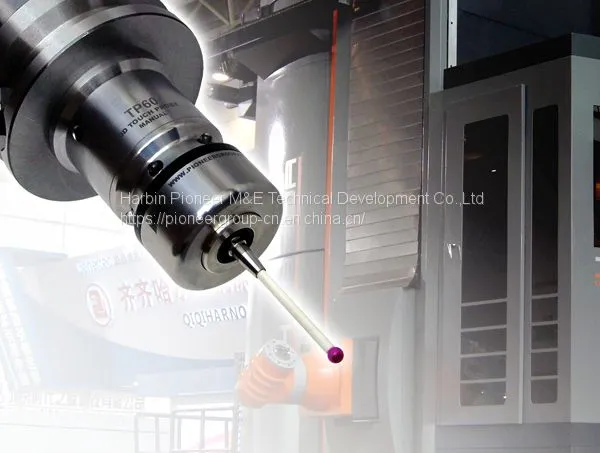

As an important component of the probe measurement system, the probe stylus/sensor is mainly composed of three parts: the stylus ball, the stylus rod, and the stylus handle. A stylus is the part of the measuring system which makes contact with the component, causing the probe's mechanism to displace. The generated signal enables a measurement to be taken. The feature to be inspected dictates the type and size of the stylus used. The CNC sensor is an important execution element when measuring as a trigger sensor in a machine tool probe. The stylus range comprises many different types, varying in size and material. We divided the styli into 4 types according to the different styli handles. M2, M3, M4, and M5. It attaches great importance to choose the right stylus for your application. We will help you choose the right design for each inspection need.
M2 Screw Probe Stylus
M2 screw probe stylus has a M2 screw handle. It has many different kinds of stylus with different materials, length and diameter. M2 screw stylus usually used for industry-standard coordinate measuring machine probes.
M3 Screw Probe Stylus
M3 screw probe stylus has a M3 screw handle. It has many different kinds of stylus with different materials, length and diameter. M3 screw stylus usually used for coordinate measuring machine probes and flexible scanning probes.
M4 Screw Probe Stylus
M4 screw probe stylus has a M4 screw handle. It has many different kinds of stylus with different materials, length and diameter. M4 screw stylus usually used for the high-precision probes and the special probes of the company's various series of machine tools.
M5 Screw Probe Stylus
M5 screw probe stylus has a M5 screw handle. It has many different kinds of stylus with different materials, length and diameter. M5 screw stylus usually designed for coordinate measuring machine probes and ultra-high precision scanning probes produced by other manufacturers.
Advantages of CNC Machine Tool Touch Probe Stylus/Sensor
A wide range of styli, suitable for various measurement needs
We can provide customized styli servic
Stylus technology is complete, reliable and durable
Various threads and lengths, rich in types and flexible configuration
Pioneer CNC is a professional probe company, we provide tip probe, machine tool sensors, touch probe sensor, probe sensor, touch probe sensor and etc. Want to know more? Please contact us.
