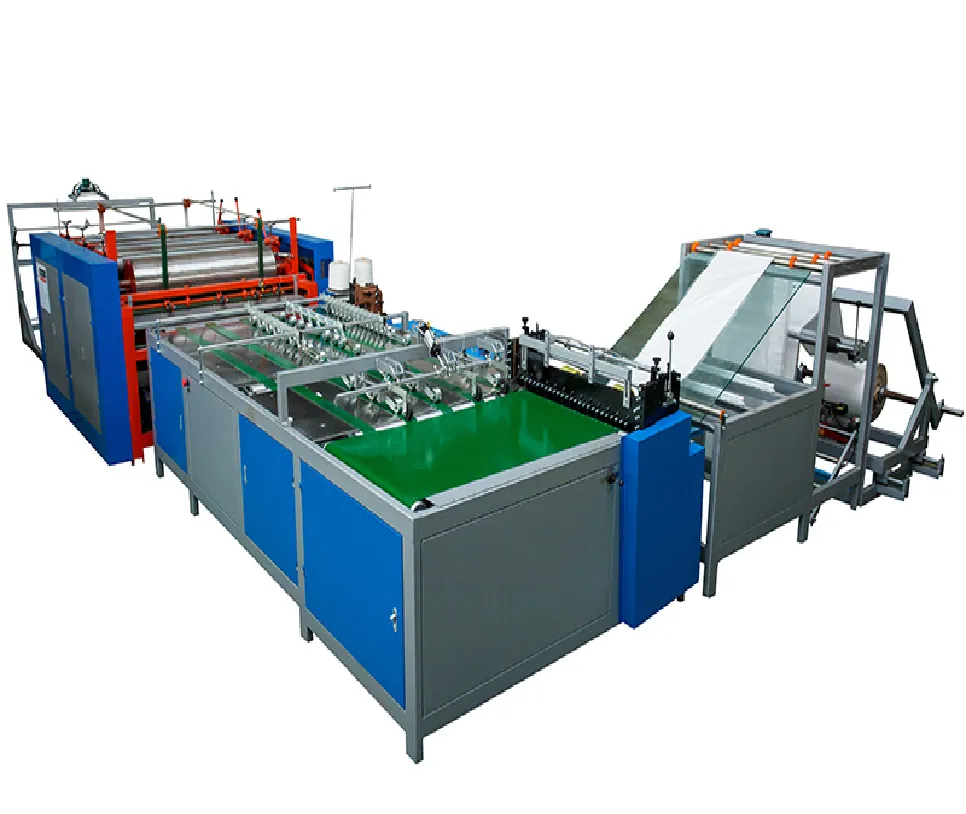

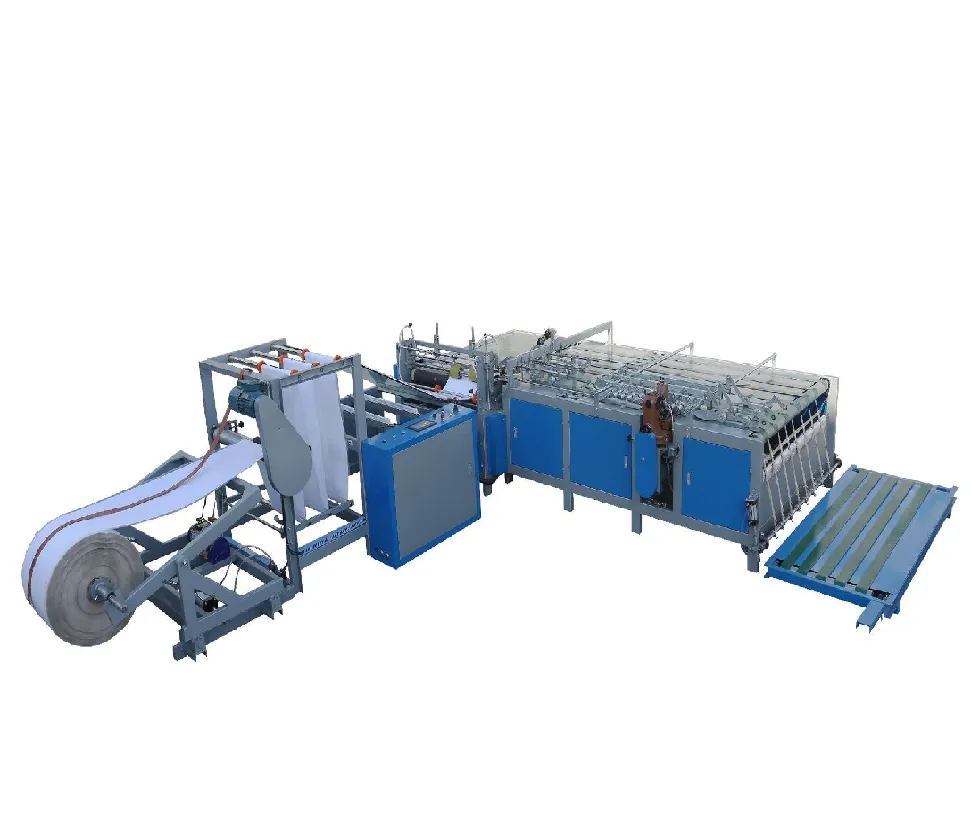

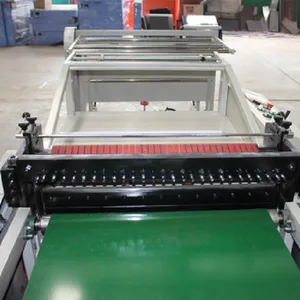

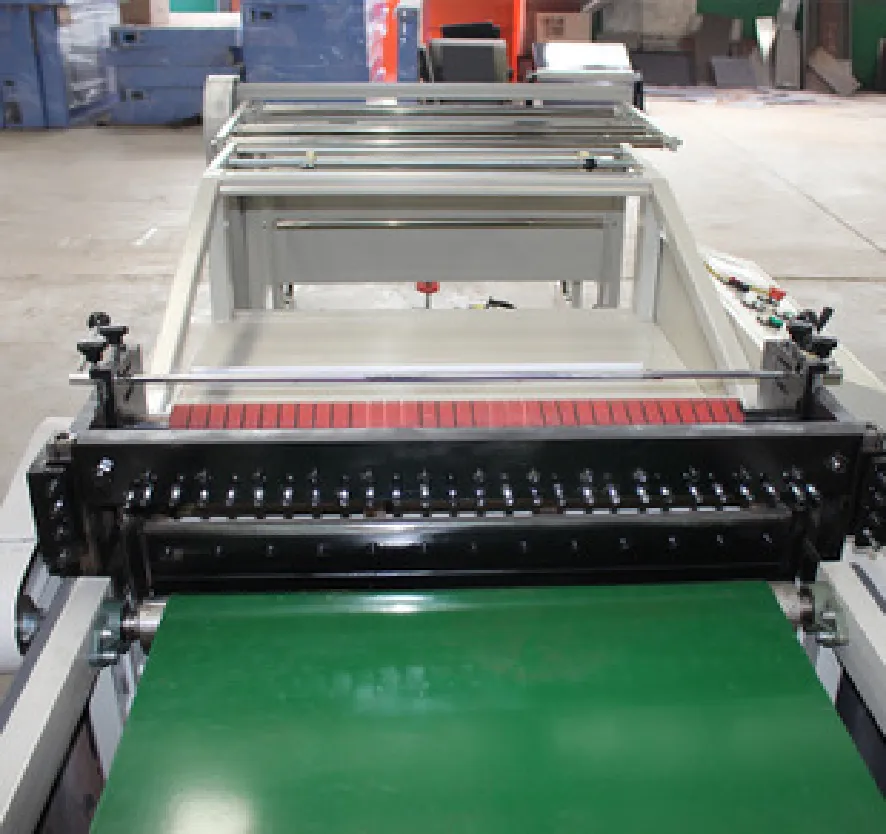

PP Woven Liner Bag Inserting Machine Woven bag machine

Machine introduction:

This machine is a medium-sized fully automatic equipment integrating automatic feeding, automatic deviation correction, fixed-length cutting, bottom sewing, printing, counting, and bag collection in one machine. It has a high degree of automation. It is easy to operate by one person and one machine. The machine adopts PLC control. Change the bag length, change the bag of different specifications, the adjustment is simple and quick, the system automatically calculates the proportional coefficient, and the printing of different lengths of sheets can be completed without changing the rollers and the front and back sides can be formed at one time. The slitting, slitting, and slitting can be converted mutually. One machine with multiple functions, high efficiency and energy saving.

Machine features：

◆Hot-cutting is mainly used for cutting uncoated bags. The resistance wire is not easy to fall off and the opening does not stick. Cold cutting is mainly used for cutting film-coated bags, using physical cutting, and the opening is flat. (Servo motor drives the cutter, cutting accurately, no printing accumulated error.)

◆This machine has multiple functions and integration, and can be used as a cutting and sewing machine, a cutting and printing machine, and a cutting and printing machine.

◆ Dual power cut bag portion, the smooth bags, cut neatly, and easy opening

◆ Stainless steel panel, beautiful and smooth running

◆ PLC computer centralized control, program upgrades can be performed regularly

◆ Single and double folding, uniform folding, adjustable thread length

◆Introducing the technical principles of foreign flexographic printing presses, through the fine-tuning device, the vertical/horizontal online (non-stop) quantitative positioning can be quickly registered at one time, which greatly reduces the repeated shutdown time for plate calibration and trial printing fabric losses, and improves production efficiency.

◆ Collect the bags neatly, chop them and push them, the number of bags can be adjusted, and the counting is accurate

◆According to customer needs, special specifications, can be processed and customized.

Machine parameters：

Model：RC-1300                         Voltage: 380v

Motor power: 12kW

Production speed: 30-50 pieces/min         Rubber sheet thickness：4-5mm

Folding width: 20-30mm                   Needle pitch: 8-15mm

Cloth roll maximum diameter: 1300mm      Cutting width: 300-800mm

Cutting length: 400-1300mm           Effective printing width: 900mm       Weight: 2800kg

Size(L*W*H)：11000×6000×1200mm
