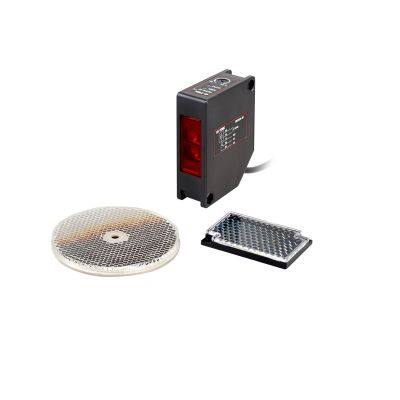

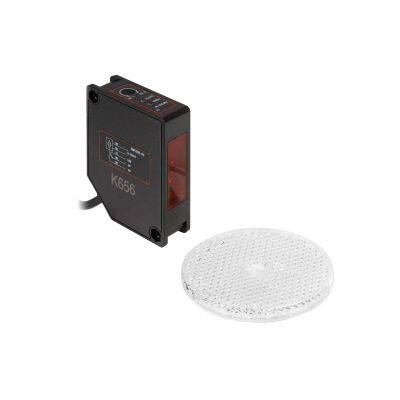

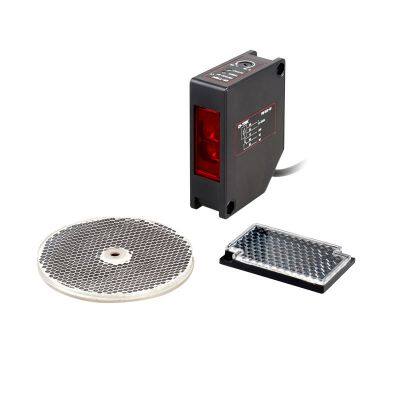

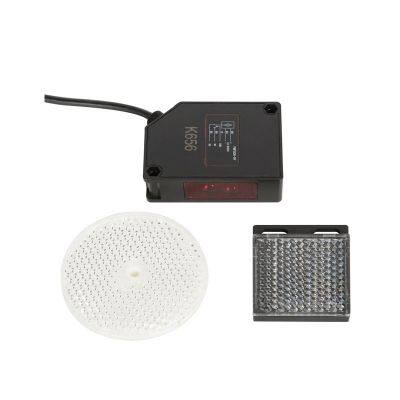

Help Center16m Retro-Reflective Photo Sensor for Big Industrial Rolling Sheet Door
Related Products
-
Relay Output Retro-Reflective Photo Sensor for High Speed Metal DoorsUS$ 27 - 28MOQ: 10 Sets -
16m Pmf80RF Retro-Reflective Photoelectric Switch for Industrial Insulated Sectional DoorsUS$ 27 - 28MOQ: 10 Sets
-
Infrared Mirror Reflector Photoelectric Sensor for Commercial Material Handling DoorsUS$ 27 - 28MOQ: 10 Sets
-
16m Pmf80RF Infrared Retro-Reflective Optical Sensor for Industrial Overhead DoorUS$ 27 - 28MOQ: 10 Sets
-
Pmf80RF 16m Retro-Reflective Photoelectric Sensor for Automated Aviation DoorUS$ 27 - 28MOQ: 10 Sets
Product Parameters | |
Photoelectric sensor | PMF80R |
Detection type | Retro-reflective type |
Detection object | MinΦ60mm opaque object |
Detection distance | 16m |
Supply voltage | 10-30v DC |
No-load current | Max.60mA |
Response time | Max.20ms |
Light | Laser (wave length: 650nm) |
Action mode | Selecting Light On or Dark On by potentiometer |
Control output | Relay output，(contact rating: 30VDC 1A resistance load， 120VAC，1A resistance load，contact component: 1C) |
Indicator | Power indicator: green；Action indicator: red |
Protection circuit | over-voltage、over-current & reverse polarity protection |
Ambient brightness | Sunlight: Max.60000Lux fluorescent: Max.3000Lux |
Ambient temperature | －30℃~65℃ (No-freezing) |
Ambient humidity | 0~90%RH |
Housing material | Housing: ABS Lens: PMMA |
Shape and size | As dimension |
Cable | Φ5, 5×0.2mm² |
Protection rating | IP65 (IEC) |
Accessory | Bracket: IB08，Screw: M4×30 |
