200m NPN Opposed Infrared Optical Sensor for Lifting Fabric Doors

200m NPN Opposed Infrared Optical Sensor for Lifting Fabric Doors photo-1

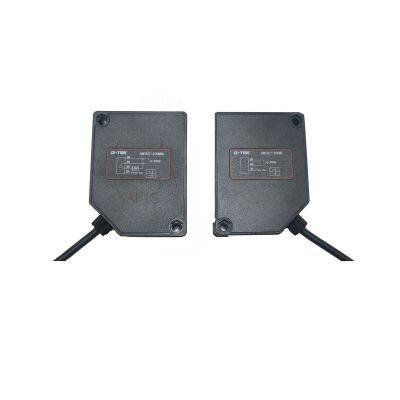

200m NPN Opposed Infrared Optical Sensor for Lifting Fabric Doors photo-2

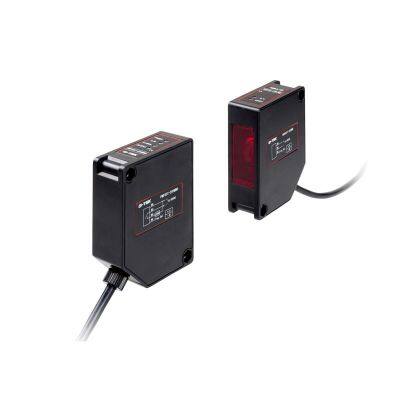

200m NPN Opposed Infrared Optical Sensor for Lifting Fabric Doors photo-3

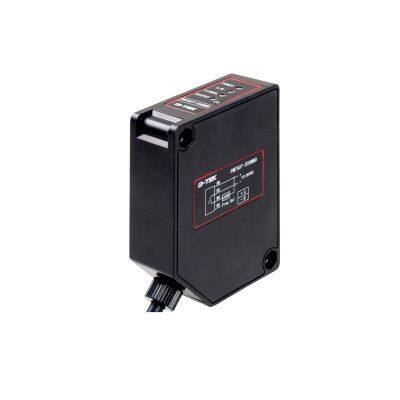

200m NPN Opposed Infrared Optical Sensor for Lifting Fabric Doors photo-4

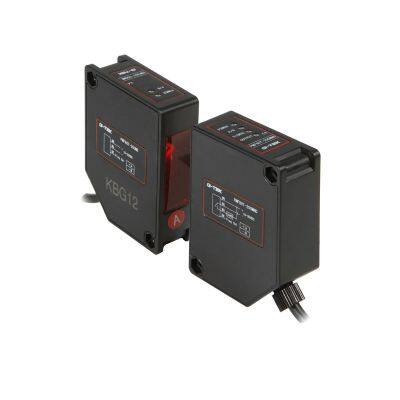

200m NPN Opposed Infrared Optical Sensor for Lifting Fabric Doors photo-5
US$ 110 - 120 MOQ: 10 Sets
Key Specifications
Get Latest Price
Brand Name:
G-TEK
Place of Origin:
China
Model Number:
PMF80T
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
14 days
Brand Name G-TEK
Place of Origin China
Model Number PMF80T
Usage Other, industrial doors
Theory Optical Sensor
Output Switching Transducer

Product Parameters

Photoelectric sensor

PMF80T

Detection type

Opposed type

Detection object

MinΦ60mm opaque object

Detection distance

200m

Supply voltage

10-30v DC

No-load current

Emitter: Max.30mA; Receiver:   Max.20mA

Response time

Max.30ms

Light

Infrared LED(modulated)

Action mode

Dark on



Control output

NPN

Indicator

Power indicator: green;Action indicator: red  Strength indicator:red

Protection circuit

Output short   circuit protection, over-voltage

over-current protection and reverse   polarity protection

Insulation resistance

Min.20Ω( 500VDC)

Ambient brightness

Sunlight: Max.10000Lux fluorescent:   Max.3000Lux

Ambient temperature

-30℃~65℃ (No-freezing)

Ambient humidity

0~90%RH

Housing material

Housing: ABS  Lens: PMMA

Shape and size

As dimension

Cable

Emitter: Φ 5, 3×0.3mm²; Receiver:   Φ5, 4×0.3mm²

Protection rating

IP65 (IEC)

Accessory

Bracket: IB08,Screw: M4×30
