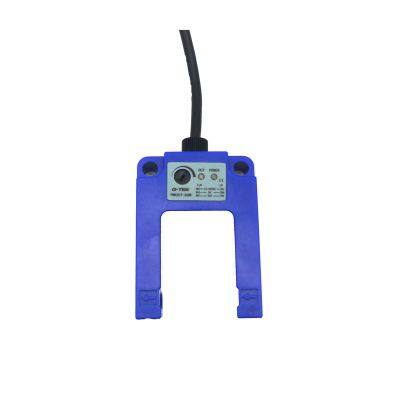

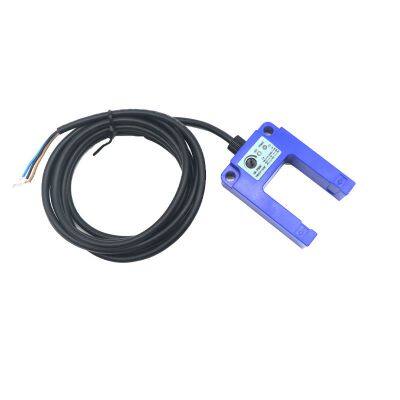

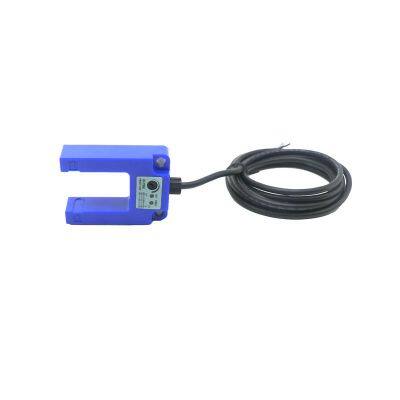

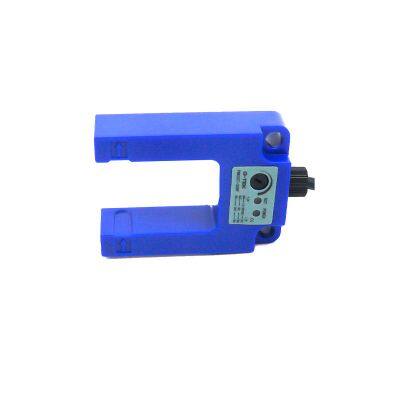

Help CenterPNP U-Shaped Infrared Through Beam Positioning 13mm Slot Sensor
Related Products
-
NPN Plastic U-Shaped Infrared Through Beam Slot Photo SensorUS$ 14 - 15MOQ: 1 Set -
U-Shaped Positioning 13mm Slot Photoelectric Sensor for Elevator LimitUS$ 14 - 15MOQ: 1 Set
-
PNP Opposed Infrared Slot Photo Sensor With CE CertificateUS$ 14 - 15MOQ: 1 Set
-
U-Shaped Positioning 13mm Slot Photoelectric Sensor for Elevator Pedestrian SafeguardingUS$ 14 - 15MOQ: 1 Set
-
U-Shaped Positioning 13mm Slot Photo Sensor for Elevator Layer DetectionUS$ 14 - 15MOQ: 1 Set
Product Parameters | |
Photoelectric sensor | PMK50T DC3-wires |
Detection type | Opposed type |
Detection object | MinΦ13mm opaque object |
Groove Width | 30mm |
Supply voltage | 12~35V DC |
No-load current | Max.25mA |
Response time | Max.1ms |
Light | Infrared LED |
Sensitivity adjustment | VR adjustment |
Action mode | Selecting L .On/D .On by changing wire connecting order |
Control output | NPN open collector，Load voltage: Max.35VDC，Load current: Max.200mA，Voltage drop: Max.1.5V； PNP open collector，Output voltage: supply voltage1- .5V，Load current : Max.200mA； |
Indicator | Power indicator: green；Action indicator: red |
Protection circuit | Over-voltage protection、 short circuit protection |
Insulation resistance | Min.100MΩ |
Anti-interference | ±4KV analog square wave interference (width: 0.1ms) |
Withstand voltage | Voltage: 1000VAC， time: 60s |
Shock resistance | Acceleration: 500m/s² |
Anti-vibration | Frequency: 10~50Hz，amplitude: 1mm |
Ambient brightness | Sunlight: Max.11000Lux fluorescent: Max.3000Lux |
Ambient temperature | －25℃~65℃ |
Ambient humidity | 0~90%RH |
Housing material | Housing: ABS |
Shape and size | As dimension |
Cable | Φ 5, 3×0.3mm² |
Protection rating | IP67 (IEC) |
