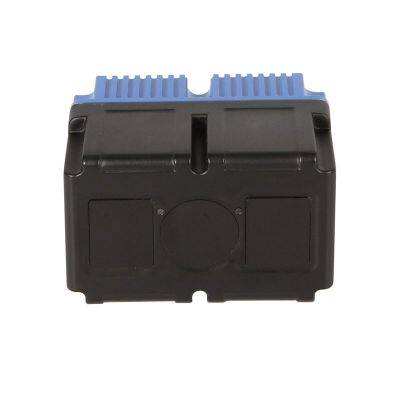

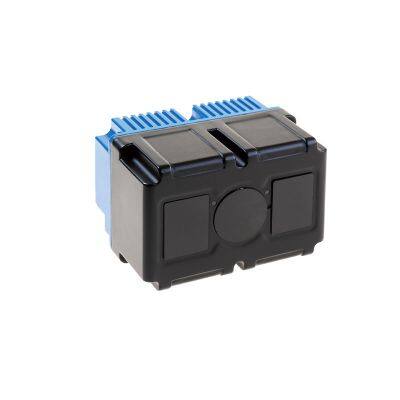

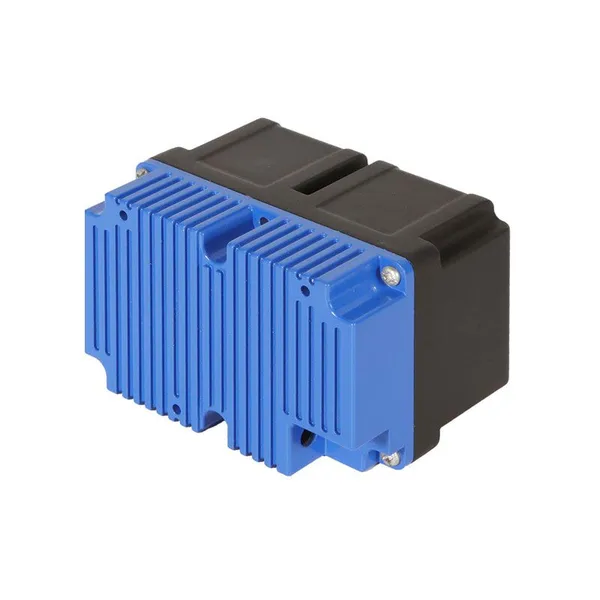

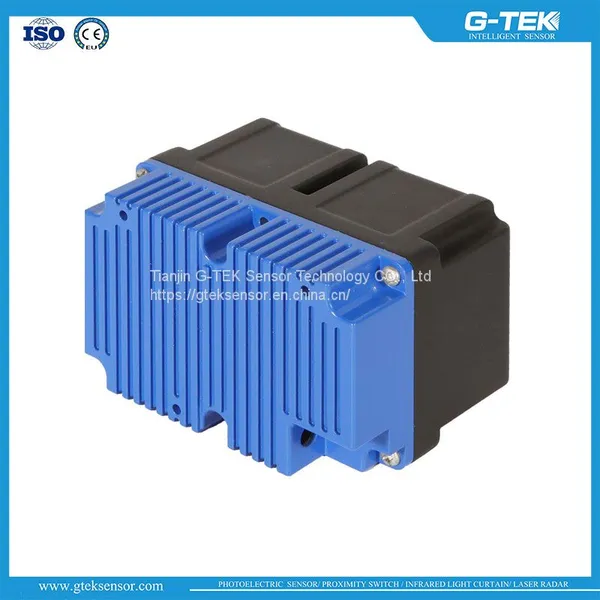

Tof 3D Laser Camera Sensor for Car Parking Barrier
US$ 190 - 200
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
G-TEK
Place of Origin:
China
Model Number:
GDC 3D camera
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
14 days
Related Products
-
Tof 3D Security Camera Access Control Sensor for Barrier GateUS$ 190 - 200MOQ: 1 Set -
IP65 Tof 3D Infrared Relay Output Security Camera SensorUS$ 190 - 200MOQ: 1 Set
-
Infrared Security Tof 3D Camera Sensor for Vehicle DetectionUS$ 190 - 200MOQ: 1 Set
-
3D Security Camera With High Precision Wide Measuring Range AngleUS$ 190 - 200MOQ: 1 Set
-
Laser Radar Traffic Measuring Sensor for Railway Station Train DetectionUS$ 1700 - 1800MOQ: 1 Set
Brand Name
G-TEK
Place of Origin
China
Model Number
GDC 3D camera
Usage
Other, industrial doors
Theory
Optical Sensor
Output
Switching Transducer
Parameter | |
TOF 3D Camera |
GDC 1000 |
Supply voltage |
12-30V DC/AC |
Distance range |
0.2-6m |
Detection angle |
45*10° |
Frame rate |
20fps |
Measurement resolution |
140*30 |
Repeatability |
±20mm |
Response time |
50ms |
Laser wavelength |
940nm |
Laser class |
I (safe to people’s eyes) |
Data interface |
RS485 |
Protection rating |
IEC IP65 |
Work Temperature |
-20℃ to ＋50℃ |
Output Mode |
Relay Output NO/NC |
Light interference |
80000Lux |
Shape |
90mm×60mm×63mm |
Electrical connection | ||
Number |
Color |
Signal Definition |
One |
Yellow |
Relay COM |
Two |
Brown |
Supply+ |
Three |
Red |
SetMode+ |
Four |
White Red |
/ |
Five |
White Black |
RS 485- |
Six |
Purple |
Rs 485+ |
Seven |
Green |
SetMode- |
Eight |
Black |
Relay NC Output |
Nine |
/ |
|
Ten |
Blue |
Supply- |
Eleven |
White |
Relay NO Output |
Twelve |
/ |
|
