Product Specification

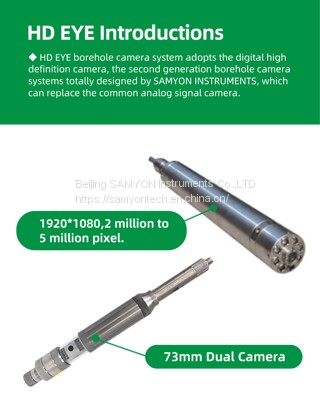

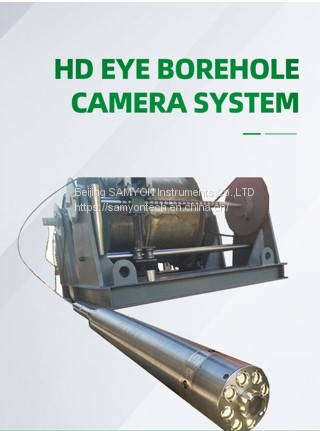

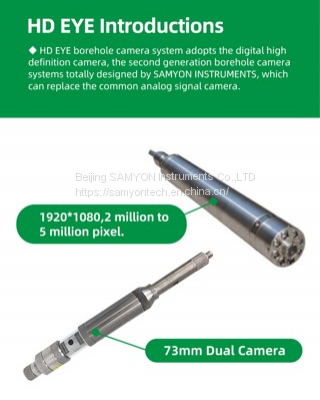

Digital HD Borehole Camera is the second generation of borehole camera which designed by our company.
Digital HD camera technology can totally replace the analog signal camera, 2 million pixel video resolution enhance the borehole camera clearance.
The camera can recognize the wall damages, defects, fissures, and falling objects inside well, real time collection and storage of dual video and shoot by matched software, also can provide the relevant testing report according to customer requirement.
Application Field
Water Well Testing; Geothermal Well Testing; Oil Well Testing; Drill Hole Testing; Coal Mine Ventilation Shaft Testing
Features

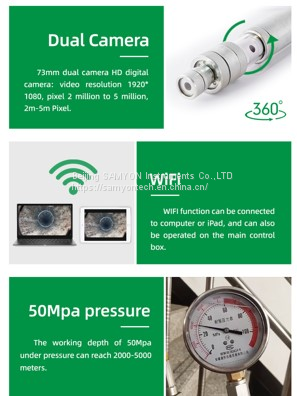

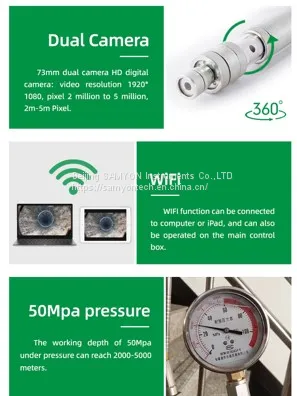

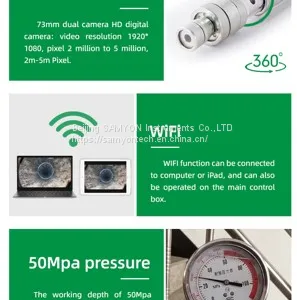

1.HD Digital camera ; Video Resolution: 1920* 1080, Pixel:2 million - 5 million.
2.Working Depth can reach to 2000m - 5000m, no signal interference, totally solve the problem of signal interference when the camera reach to 1000m inside well.
3.Tension Detection: The system is equipped with tension sensor, when the cable is blocked inside down hole and the tension is too high, the system tension value will alarm, avoid excessive force, cable fracture, probe drop down to the well.
4.Temperature Collection: temperature sensor can inspect the temperature change inside well in the real time.
5. Depth calibration: customer can manually input the diameter of the pulley and to proceed the depth measurement calibration.
6.Various video collection window, can be shifted easily between dual camera dual video collection window and dual camera single video collection window.
7.System function key can be controlled by PC, save time and easy for site operation, and also can be operated on the main control box.
8.System can automatically output the testing report, include the project name, inspector, well number, well depth, test condition, etc, and also can customized the report format according to the customer requirement.
Parameters

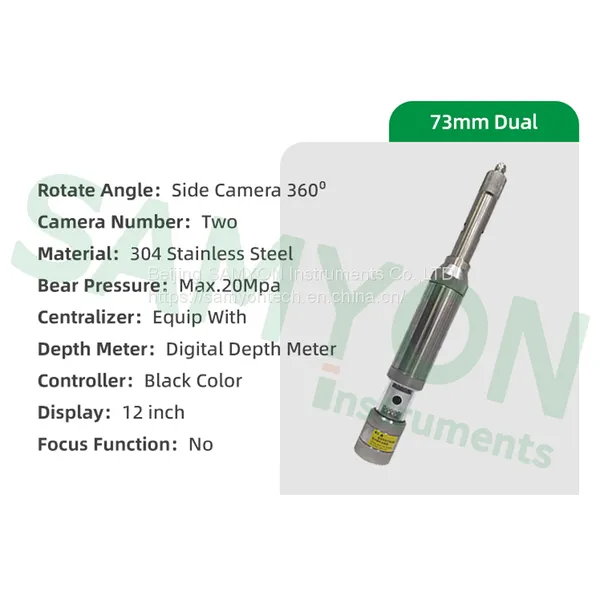

Outer Diameter |
73mm（Dual） |
360°Rotate |
Side Camera Support |
Resolution |
1920* 1080 |
Pixel |
2 Million |
Pressure |
20Mpa |
Light Brightness |
Adjustable |
Focus |
Adjustable |
Shelf Material |
304 Stainless Steel |
Outer Diameter |
78mm（panorama） |
Resolution |
1920*1080 |
Pixel |
2 Million |
Pressure |
50 MPa |
Environment Temp |
95℃ |
Shelf Material |
304 Stainless Steel |
