hothree HSR-K1300 (Sil-Pad Insulator Fiberglass Silicone) is a high performance insulator.
It combines special film with a filled silicone rubber.
The result is a product with excellent thermal performance.
hothree HSR-K1300(Thermal Conductivity Silicone Sheet) is designed to replace ceramic insulators
such as beryllium oxide, boron nitride and alumina.
hothree HSR-K1300 (Thermal Silicone Insulator) can be die-cut into various shapes,easy to operate.

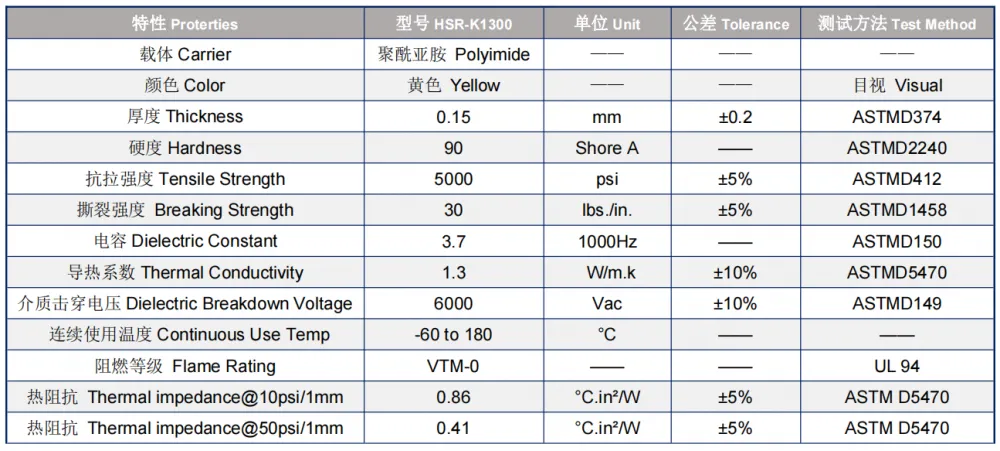

The thermal conductivity can reach 1.3w/m-k and the standard hardness is 90 shoreA.

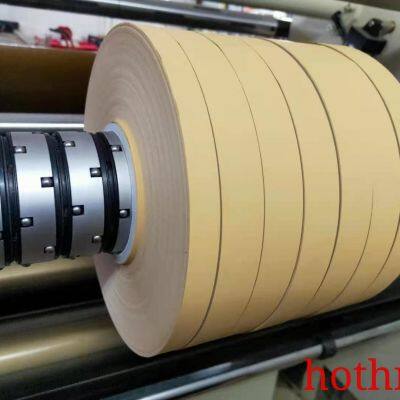

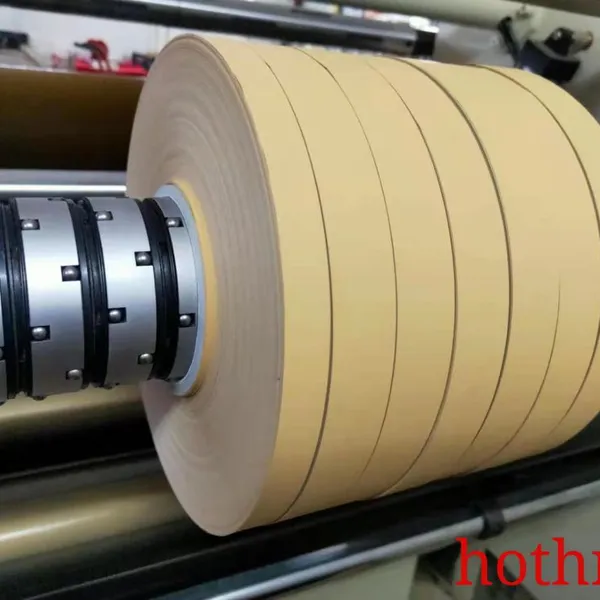

Thickness is 0.15mm and the standard specification is W300mm*L50m/roll
Produced by our own formula, we can customize the color, hardness and thickness according to the requirements.
hothree HSR-K1300 (Thermal Insulator Silicone Sheet) Applications
• Power supplies
• Motor controls
• Power semiconductors
Configurations Available
• Sheet form, die-cut parts and roll form
• With or without pressure sensitive adhesive
hothree HSR-K1300 (Sil-Pad Insulator Fiberglass Silicone) can replace BERGQUIST SPK10,Sil Pad K-10,SIL PAD TSP K1300
LAIRD TGARD-K52,LAIRD TGARD 220
