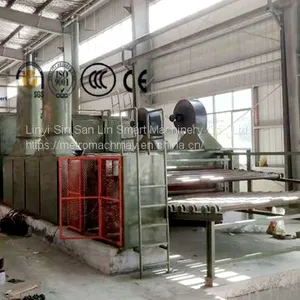

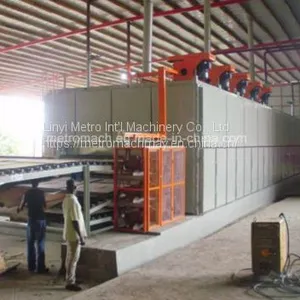

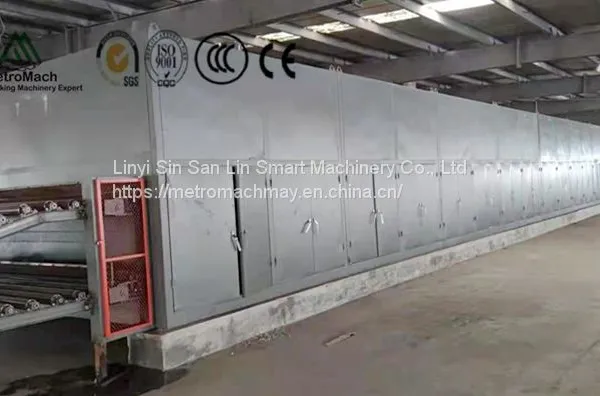

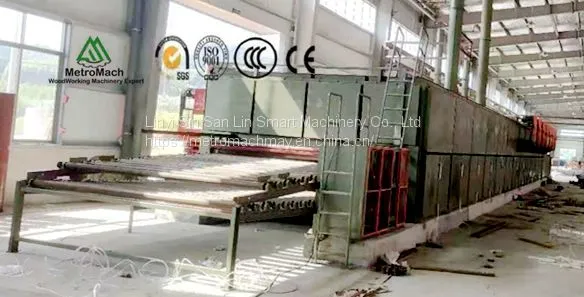

Woodworking Plywood Core Veneer Roller Conveyor Dryer Machine
US$ 30000 - 40000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
METRO MACH LEAD TOP
Place of Origin:
China
Model Number:
BG1333-2
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days
Related Products
-
Woodworking Plywood Veneer Roller Conveyor Dryer MachineUS$ 30000 - 40000MOQ: 1 Set -
Woodworking Plywood Veneer Hot Press Type Seamless Pipe Dryer MachineUS$ 9000 - 12000MOQ: 1 Set
-
Woodworking Plywood Core Veneer Roller Conveyor Dryer MachineUS$ 30000 - 40000MOQ: 1 Set
-
Woodworking Plywood Core Veneer Roller Conveyor Dryer MachineUS$ 30000 - 40000MOQ: 1 Set
-
Woodworking Plywood Core Veneer Roller Conveyor Dryer MachineUS$ 30000 - 40000MOQ: 1 Set
Brand Name
METRO MACH LEAD TOP
Place of Origin
China
Model Number
BG1333-2
Certification
CE,ISO,FDA,SGS CCC
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 Year
Weight
68000Kgs
Dimension(L*W*H)
23000*5200*4010mm
Condition
New
Voltage
380/415V
Power(W)
117.5KW
Type
Other, Veneer dryer machine

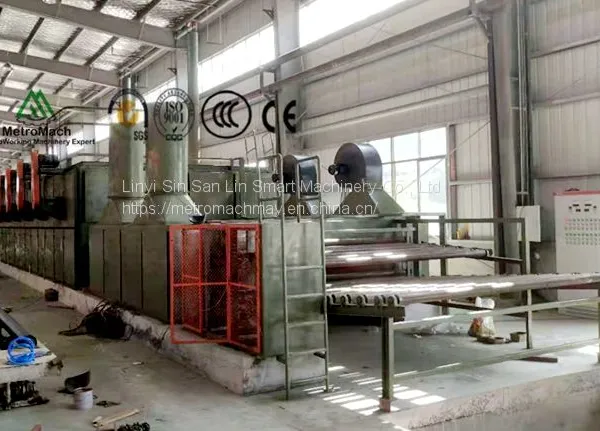

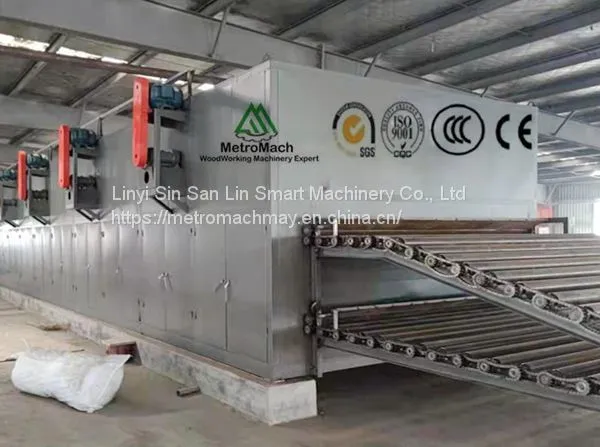

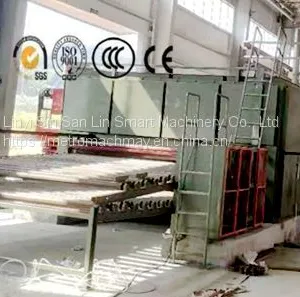

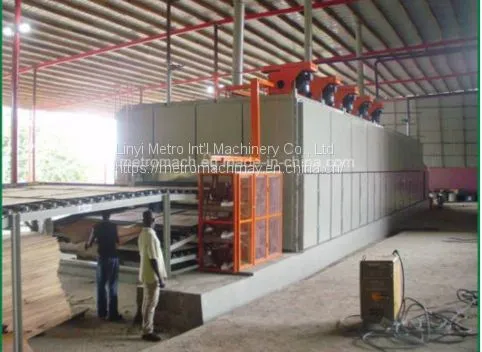

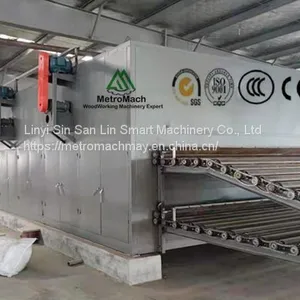

Plywood Roller conveyor veneer dryer machine
Main features:

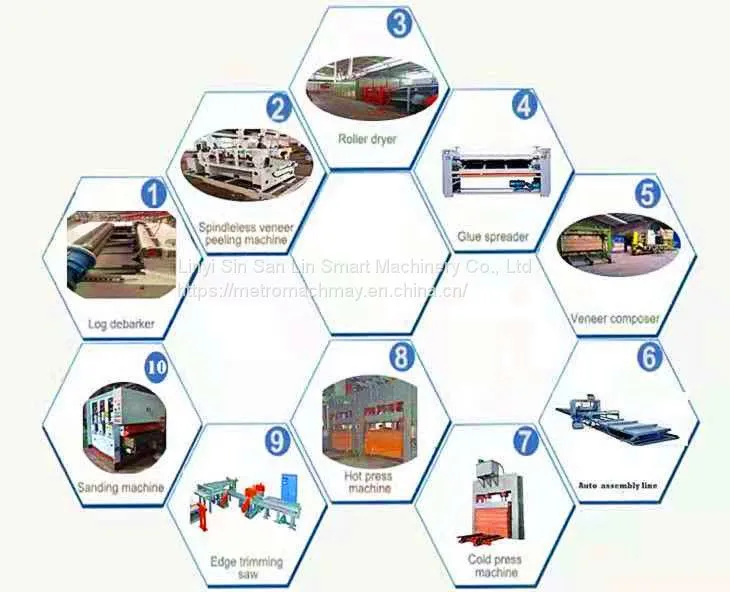

This series of roller dryer is one of the main machines in plywood production line. It is very suitable for wet clipping processing and drying thick veneer.
Advantage:
New technology and advanced PLC controlling system have been used for effective and quality drying veneers with lower energy consumption.
The BG1333 roller dryer machine is 13 sections as a standard, 2 meters as a standard for one heating section, one cooling section, one conveying system, one input roller table, and one output roller table. Customers can use the machine from 8 sections to 18 sections that it is up to your needs.
Technical specifications:
| Machine model | BG1333-I |
| Density | 550Kg/m3 |
| Veneer thickness range | 1.5-3.6mm |
| Initial moisture content | 80% |
| Final moisture content | 10% |
| Load ratio | 80% to 85% |
| Woking width | 2800mm |
| Working decks | 3decks |
| Length of heating section | 2000mm x 8 sections |
| Length of cooling section | 2000mm x 1 section |
| Transmission speed | 0-15m per min |
| Drying capacity | 3-4m3 per hour |
| Steam consumption | 2100kg per hour |
| Installation motor power | 117.5kw |
| Transmission motor power | 7.5Kw x 3sets |
| Ventilation motor power | 11Kw x 8sets |
| Cooling motor power | 7kw |
| Machine oveall dimension | 23000x5200x4010mm |
| Machine net weight | 68000Kgs |
