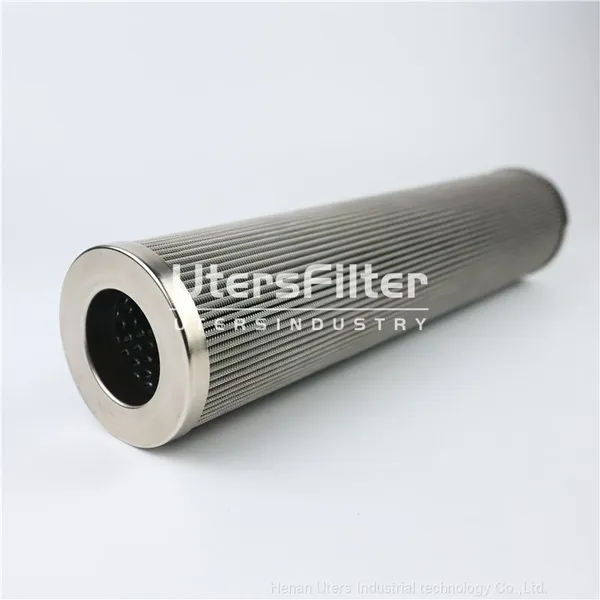

PI8408DRG60 Uters industrial filter element replace of Mahle stainless steel hydraulic oil filter element

PI8408DRG60 Uters industrial filter element  replace of  Mahle stainless steel hydraulic oil filter element

Filter Element Application:

The hydraulic oil filter element is an indispensable part of the pipeline series of the conveying medium. It is usually installed in the inlet filter of the hydraulic system to filter out metal particles and contaminants in the fluid medium and to protect the normal operation of machinery and equipment.

The application range of hydraulic oil filter elements is very wide, covering almost all industries: steel, electric power, metallurgy, shipbuilding, aviation, paper making, chemical industry, machine tools and construction machinery, construction machinery and other fields.

Filter Element Features:

1. Filtration accuracy: 1-200um filtration ratio: X≧99.9　　

2. Working pressure: (MAX) 21Mpa 　

3. Working medium: hydraulic oil; lubricating oil; fluid medium such as industrial water

4. Working temperature: -30℃~+110℃　　

5. Filter material: high-strength stainless steel mesh; glass fiber; filter paper and other materials

6. Structural strength: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa

Quality Standard:

ISO 2941------Collapse & Burst Resistant

ISO 2942------Fabrication & Integrity Test

ISO 2943------Material Compatibility with Fluids

ISO 3724------Flow Fatigue Characteristics

ISO 3968------Pressure Drop vs. Flow Rate

ISO 4572------Multi-pass Performance Testing

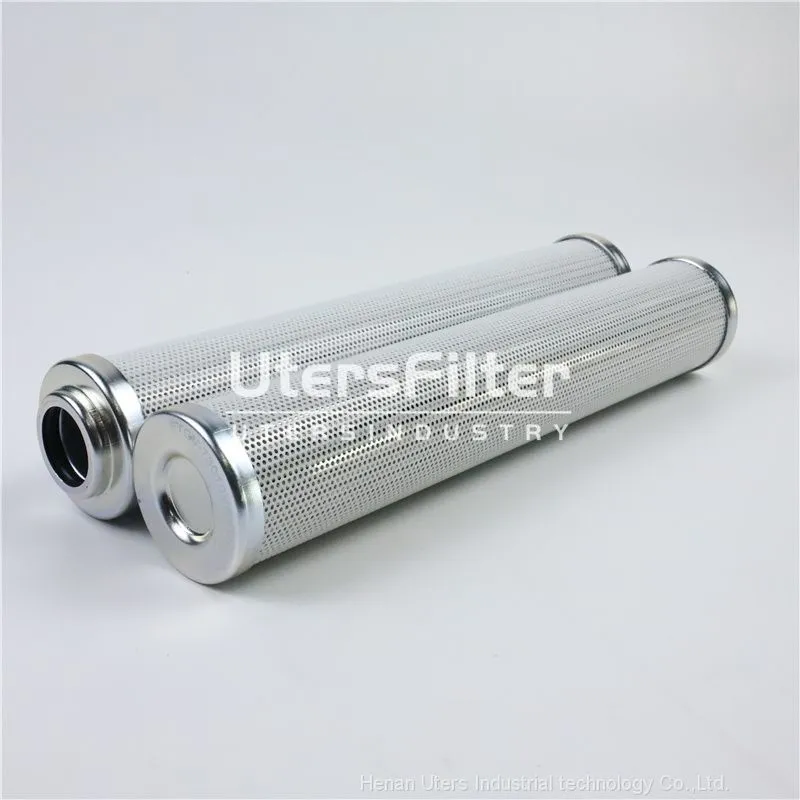

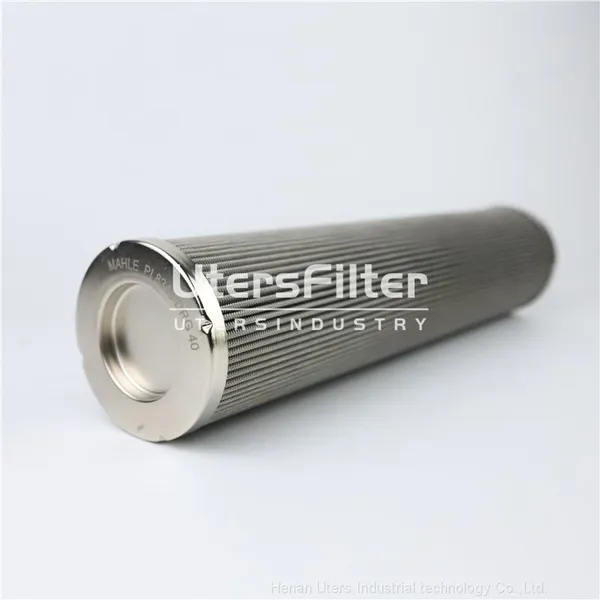

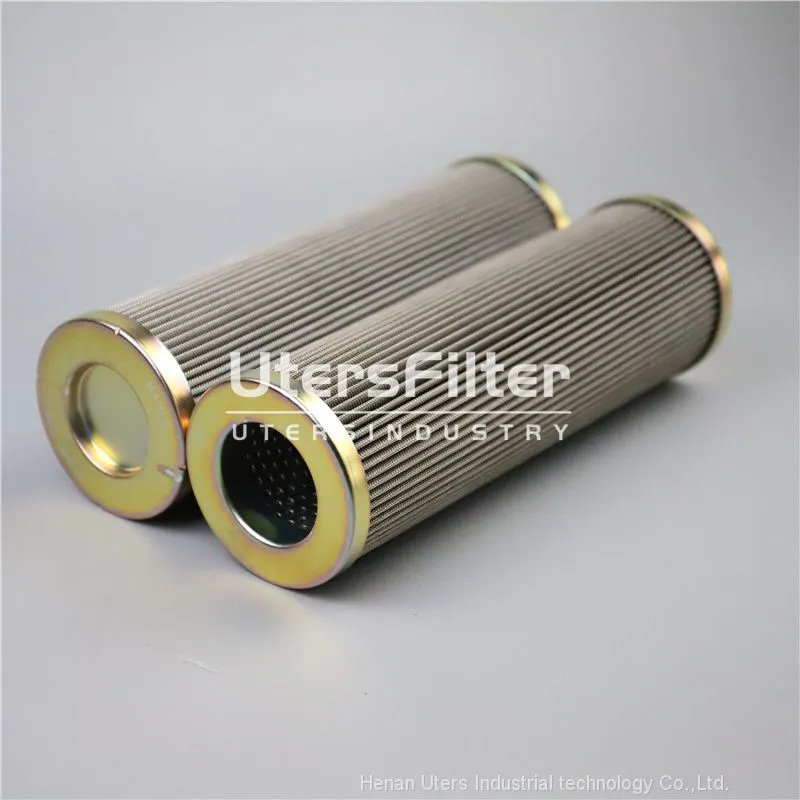

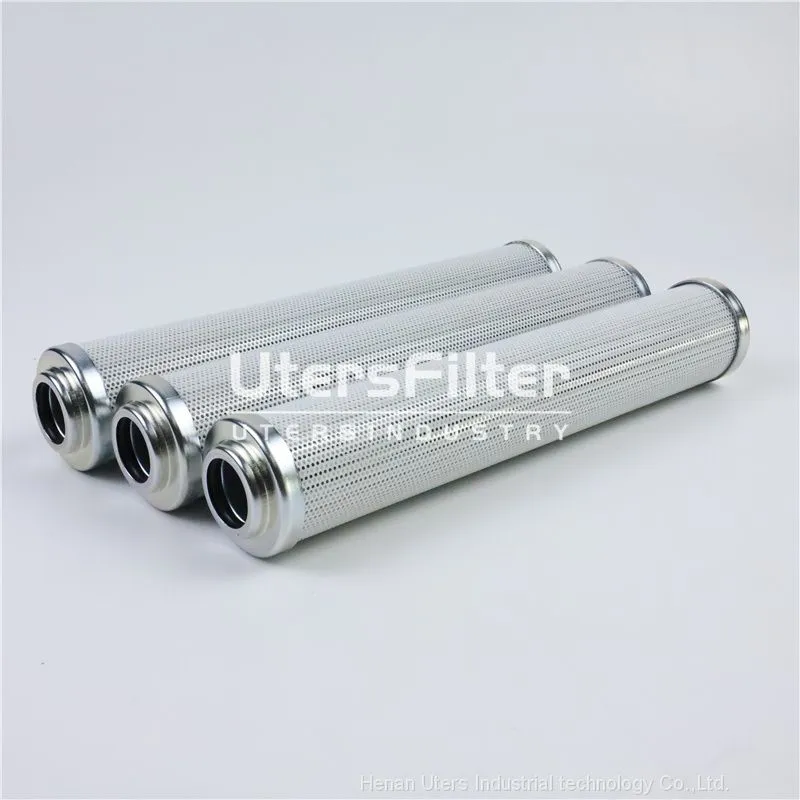

Package Pictures

Product Extension

Uters filter element LH0110D10BN3HC LH0160D030BN3HC LH0240D030BN3HC

Uters 10 micron hydraulic filter element R928006049 2.0004 G10-A00-0-M

Uters oil and gas separation filter element 96541700000

Uters stainless steel mesh hydraulic filter element PI8345DRG40

Uters high pressure filter element HC9601FUP11YGE

Uters hydraulic filter element HC0101FCP18H

Uters hydraulic filter element HC2618FCP18Z

Uters hydraulic filter element HC8300FKT26H HC8300FCT39H

Uters hydraulic filter element FAX-160X10
