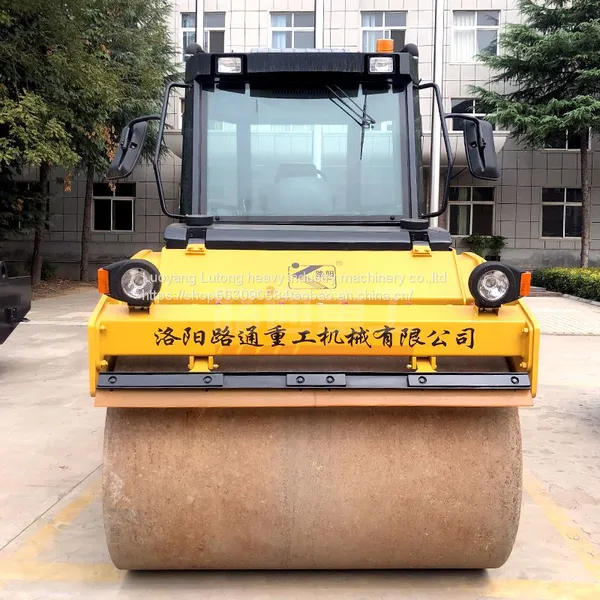

Hydraulic double drum vibratory roller
LTC210 Hydraulic vibratory rollers are manufactured according to international advanced technology and by use of imported components from abroad. The machine is a double drum tandem vibratory roller. It is Primarily used for the compaction of road bituminous course, sand gravel mixtures and RCC material, Being a universal compaction equipment for highway, municipal road, park area and industry ground etc.
Main Features
Full hydraulic two wheel drive and vibration.
Double frequency double vibration system.
Hydrostatic center articulated steering, Optional unique crab agency.
Cabin with air conditioner, comfortable and spacious, the flexible steering seat facilitates the operation.
The driver' s cabin can be turned on one side as a whole, to facilitate maintenance.
Fork-type frame, good hold-down property
Hydraulic pump and vibrating motors are of the products made by American manufacturer SAUER.
An adaptive intelligent compaction management system.
Main Technical Parameters
| MODLE | UNIT | LTC210 |
| Operating mass | kg | 10000 |
| Front axle load | kg | 5000 |
| Rear axle load | kg | 5000 |
| Static linear load | N/cm | 289 |
| Form of frame | Fork-type | |
| Water tank capacity | L | 2×450 |
| Fuel tank capacity | L | 134 |
| Hydraulic tank capacity | L | 75 |
| Vibration amplitude | mm | |
| High ampl. | 0.67 | |
| Low ampl. | 0.34 | |
| Vibration frequency | Hz | |
| High ampl. | 40 | |
| Low ampl. | 46 | |
| Centrifugal force | KN | |
| High ampl. | 160×2 | |
| Low ampl. | 90×2 | |
| Travel speed | km/h | 0-10 |
| Turning radius | mm | 6000 |
| Grade ability | % | 30 |
| Steering angle | ° | ±30 |
| Drum diameter | mm | 1150 |
| Drum width | mm | 1730 |
| Transverse swing angle of the vibrating wheel | ° | ±8 |
| Type of water spray | mm | Pressure |
| Wheelbase | mm | 3217 |
| Overall length | mm | 4558 |
| Overall width | mm | 1840 |
| Overall height | mm | 2674 |
| Ground clearance | mm | 258 |
| Diesel model | QSB3.9 | |
| Diesel power | kw | 74 |
| Diesel speed | r/min | 2400 |
