10tons-30tons LTP2030H/LTP1016H Hydraulic Pneumatic

10tons-30tons LTP2030H/LTP1016H Hydraulic Pneumatic thumbnail-1
10tons-30tons LTP2030H/LTP1016H Hydraulic Pneumatic thumbnail-2
10tons-30tons LTP2030H/LTP1016H Hydraulic Pneumatic photo-1

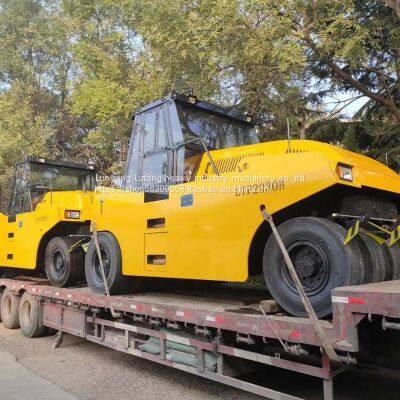

10tons-30tons LTP2030H/LTP1016H Hydraulic Pneumatic photo-2
CNY 290000 - 360000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Luyang
Place of Origin:
China
Model Number:
Email: Lutonglena@gmail.com / Phone:+86 13137902629
Contact Supplier Request Quote Chat Now
Luoyang Lutong Heavy Industry Machinery Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai,china
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Luyang
Place of Origin China
Model Number Email: Lutonglena@gmail.com / Phone:+86 13137902629
Certification ISO 9001:2000
After-sales Service Provided No overseas service provided
Weight 10tons-30tons
Dimension(L*W*H) 4950×2850×3200mm
Power Type Diesel
Power(W) 125000
Condition New
LTP2030H/LTP1016H

Hydraulic pneumatic


Pneumatic tyre roller series are designed for the compact cohesive and non-cohesive materials, such as asphalt concrete, cement or lime stabilized soils, gravels, sands and clay mixtures, Rolling Cement Concrete(PCC)in the construction projects, especially suitable for the preparation of the upper courses of high grade highway.


 Main Features

LTP2030, LTP1016 low gravitational center designed for safe and comfortable operation.

LTP2030abopt CUMMINS QSB5.9 diesel engine. Powerful strength, Energy conservation and environmental protection,which is suitable to all environments

Three forward speed and two backward changes. Reinforced plastic spraying box and multi-layer water filter ensure the stability of the system.

With stepless speed changes LTP2030H, LTP1016H is easy and reliable to operate

Power strength,LTP1016, LTP1016H which adopted QSB3.9 Cummins engine,Energy conservation and environmental protection, is suitable to all environments

Main Technical Parameters

MODEL 　UNIT LTP2030H LTP1016H
Operating mass kg 20000/30000 10000/16000
（Unballast/Ballast）
Max. travel speed Km/h 20.75 14
Tyre quantity(front+back) pcs 5+6 4+5
Min.turning radius mm 8000 7500
The presses the width mm 2790 2280
Grade ability % 25 25
Overall dimension mm 4950×2850×3200 4780×2280×3200
Wheelbase mm 3800 3700
Diesel power KW 125 74
Diesel model
QSB5.9 QSB3.9


Product Tags: road roller , 10tons-30tons
