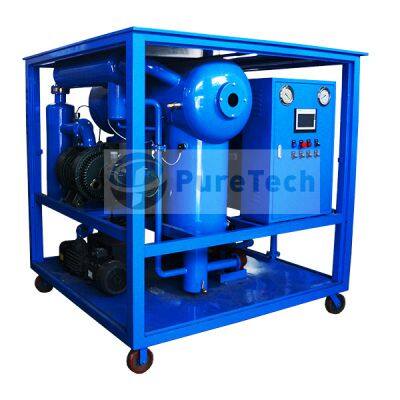

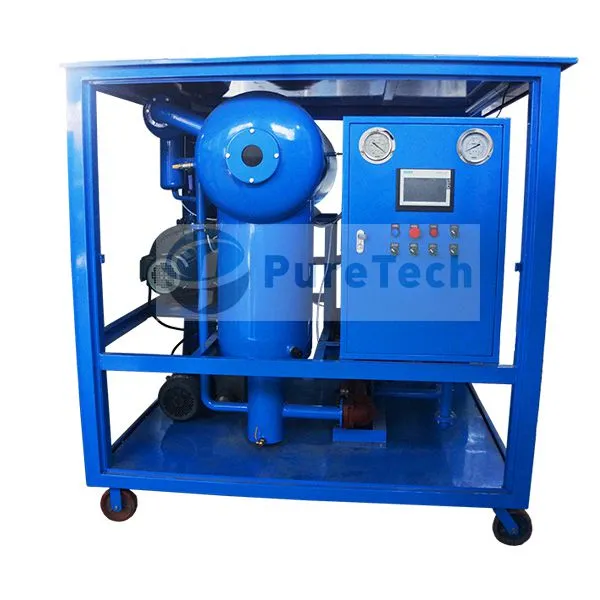

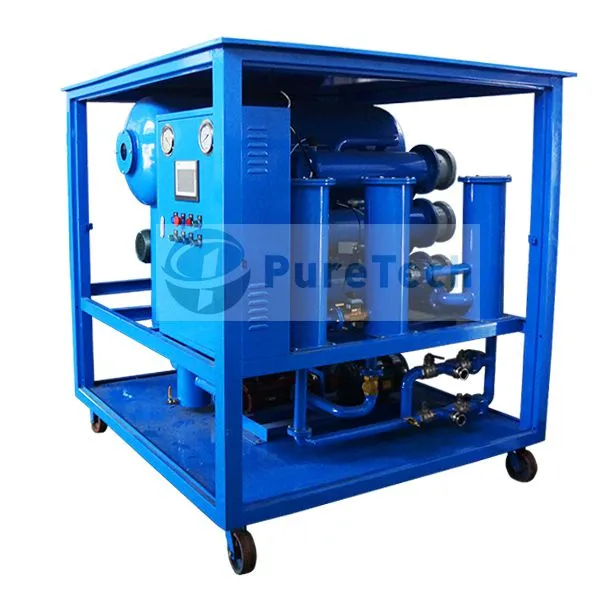

The PureTech mobile Double-Stage High Vacuum Transformer Oil Purifiers (Model DVOP) are used for transformer oil dehydration, degasification and filtration. As a necessary maintenance tool for power transformers, it can effectively remove free and soluble water, gases and particulate matters contained in the transformer oil, thereby increasing and maintaining the dielectric strength of transformer oil, performing good insulation function in power transformers.

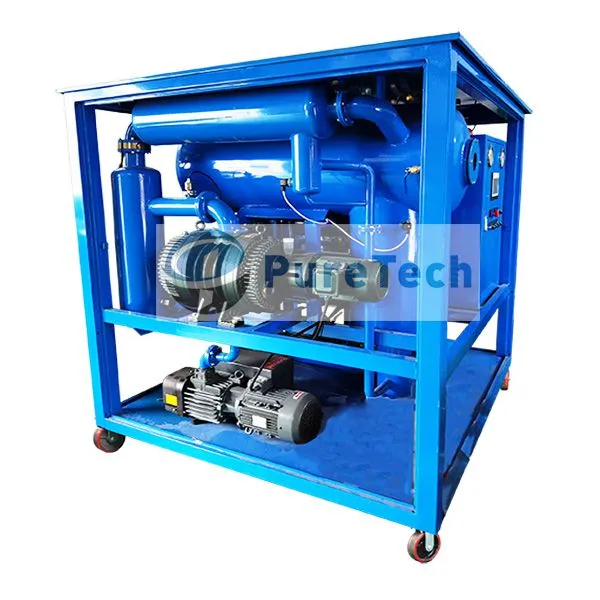

Double-Stage High Vacuum Transformer Oil Purifiers (Model DVOP) adopt two-stage vacuum pumps, namely rotary vane vacuum pump and roots booster vacuum pump, they are especially applied to transformer oil treatment of 110KV,220KV,500KV,750KV,1000KV power transmission line.
In addition, Model DVOP can also be used as an vacuum drying and vacuum filling equipment during transformer maintenance.
Features of Transformer Oil Filtration Machine
• Double-stage high vacuum improve the effect and efficiency of oil dehydration and degasification.
• Multi-stage filtration ensures the high oil filtering accuracy.
• Multifunctional integrated equipment, can be used oil treatment, vacuum oil filling and vacuum drying. (*More functions can be customized according to your requirements.)
• The uniquely designed “T” vacuum chamber enlarges the oil evaporation area more than the traditional design, so as to achieve a better dehydration and degassing effect.
• Model DVOP Transformer Oil Purifier can work offline or online under the safe operation.
• A standalone oil regeneration device can be mounted or connected on its basis for transformer oil regeneration.
• Online oil testers, trailer type with road-worthy wheels, weather-proof enclosure and other spare parts are available for selection.
Specification of Transformer Oil Filtration Machine
Machine Parameter |
Item | Unit | DVOP-30 | DVOP-50 | DVOP-75 | DVOP-100 | DVOP-150 | DVOP-200 | DVOP-300 | |
| Flow rate | liters/hour | 1800 | 3000 | 4500 | 6000 | 9000 | 12000 | 18000 | ||
| Vacuum degree | Mpa | (-0.08) ~ (-0.099) | ||||||||
| Working pressure | Mpa | ≤ 0.3 | ||||||||
| Temperature range | ℃ | 40 ~ 80 | ||||||||
| Power supply | 380Volts, 50Hz, 3Phase (Or customized) | |||||||||
| Heating power | kw | 24 | 30 | 48 | 60 | 90 | 120 | 130 | ||
| Total power | kw | 26 | 34 | 54 | 68 | 100 | 135 | 146 | ||
| Inlet/outlet diameter | mm | 32 | 32 | 44 | 44 | 50 | 58 | 65 | ||
| Size | Length | mm | 1250 | 1350 | 1550 | 1800 | 2000 | 2100 | 2300 | |
| Width | mm | 900 | 1000 | 1150 | 1400 | 1750 | 1850 | 2000 | ||
| Height | mm | 1450 | 1500 | 1700 | 1750 | 1800 | 2250 | 2300 | ||
| Weight | kg | 500 | 600 | 800 | 1100 | 1300 | 1900 | 2300 | ||
| Oil index after purification | Breakdown voltage | kV | ≥75 (Spherical electrodes) | |||||||
| Water content | ppm | ≤5 | ||||||||
| Gas content | % | ≤0.1 | ||||||||
| Filtering accuracy | micron | 1 | ||||||||
* OPTIONAL CONFIGURATIONS: PLC automatic control system, Fully-Touch Screen, Mobile Trailer, Weather-proof Enclosure, Online Oil Testing Instruments, etc.
* Please inquire us for other flow rates or types.
* The machine size and weight will change slightly due to different configurations.
• 12 months of quality guarantee for non-human damage.
• Lifelong maintenance and spare parts supply.
• Free training on operation, maintenance and troubleshooting at PureTech factory.
• Puretech engineers go to customer site for commissioning and training (payable service).
• Design accept user's customization.
