Transformer Oil Filtration Machine
- 200 Set / Sets per Month
- Chongqing Guangzhou Shanghai
- T/T
- Waste Oil Regenerating Equipment for Various Dielectric Oils
- BZ Transformer oil regeneration Equipment
- Transformer OLTC On-load Tap Changer Oil Purifier//separator/Regeneration/Dehydration Machine
- Insulation Oil Regeneration Machine
- On-load Tap Changer Oil Filter Oil Filtration Machine Oil Decanter
- Specilize Model BZ Transformer Oil Regeneration Unit
Product Details
Condition: | New | Flow: | 1200~18000L/H | Working Pressure: | 0.2Mpa max |
Place of Origin: | Chongqing, China | Brand Name: | NSH | Model Number: | VFD |
Usage: | Insulation Oil | Voltage: | 75Kv min | Power(W): | 35~254Kw |
Dimension(L*W*H): | ** | Weight: | 550~2200kg | Certification: | ISO9001:2008 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

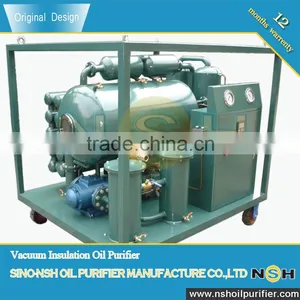

Transformer Oil Filtration Machine
Custom Products are Accepted
Description
NSH VFD series utilizes coacervation technology, coalescing technology, separating technology and refined purification technology. To remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly.
Technical Specification
Item | Unit | VFD-30 | VFD-50 | VFD-80 | VFD-100 | VFD-150 | VFD-200 | VFD-300 | |
Flow Rate | L/H | 1800 | 3000 | 4800 | 6000 | 9000 | 12000 | 18000 | |
Vacuum Range | Mpa | _0.092 ~ -0.099 | |||||||
Working Pressure | Mpa | ≤ 0.3 | |||||||
Max Vacuum Range | Pa | ≤ 50 | |||||||
Temperature Range | centidegree | 45 ~80 | |||||||
Breakdown Voltage | kV | ≥ 75 | |||||||
Impurity Size | μ m | ≤ 5 | |||||||
Dielectric Loss | tgδ | ≤ 0.005 | |||||||
Interfacial Tension | mN/m | ≥ 40 | |||||||
Water Content | PPM | ≤ 5 | |||||||
Gas Content | % | ≤ 0.1 | |||||||
Power Supply | V | 380V/50Hz( or as needed) | |||||||
Working Noise | dB(A) | ≤ 72 | ≤ 78 | ||||||
Heating Power | Kw | 30 | 48 | 72 | 90 | 120 | 180 | 240 | |
Total Power | Kw | 33 | 52 | 77 | 96 | 128 | 188 | 252 | |
Pipeline Diameter | mm | DN20 | DN25 | DN32 | DN32 | DN40 | DN50 | DN65 | |
Net Weight | Kg | 600 | 800 | 1000 | 1300 | 1800 | 2100 | 2400 | |
Size | length | mm | 1500 | 1600 | 1700 | 1900 | 2200 | 2300 | 2350 |
width | mm | 1100 | 1400 | 1500 | 1600 | 1700 | 1750 | 1850 | |
high | mm | 1750 | 1800 | 1850 | 1900 | 2100 | 2250 | 2250 |
More information on us you may be interested in ~
We package the machine in a wooden case, suit to long distance sea transportation. Usually, the shipping time would be 20 to 30 days.

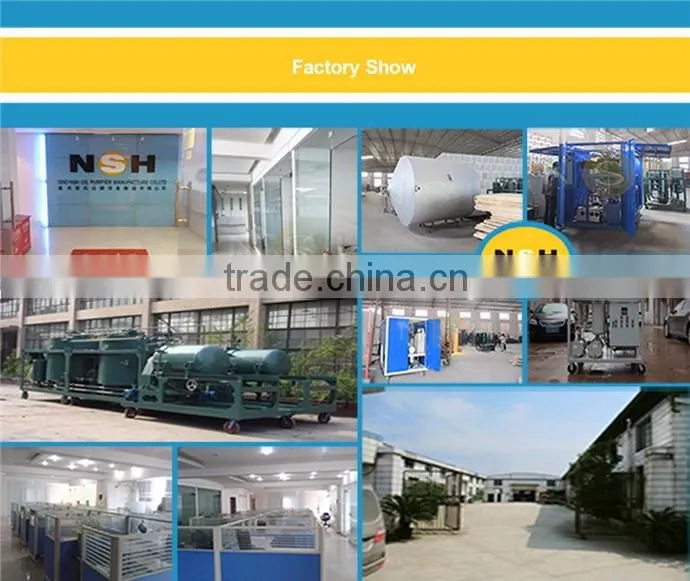

Sino-NSH Oil Purifier Manufacture Co., Ltd is a high-tech Company which is engaged in researching, developing and manufacturing lubrication purification equipment. Its parent company, Sino-NSH High-Tech Company, was established in 1992. NSH is located at Chongqing China where the third biggest river of the world, Yangtze, passes through it. The transportation is very convenient. Our vision is to be a first class company in the world; we will work hard to pursue it step by step.
We are Manufacture with high and new technology and own letter patent. The qualtiy of the products are guaranteed.
So far, we have a lot of clients from many countries in Middle East area, South Asia area, Southern East Asia area as well as Europe and Africa and America. You, as our potential client, are warmly welcome.
