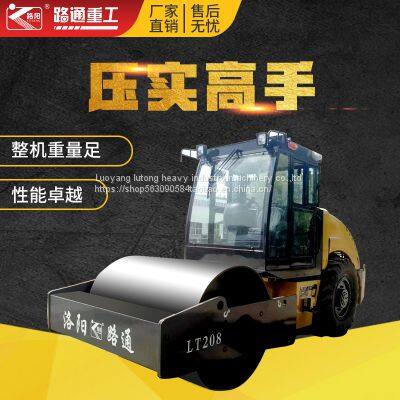

Help Center8tons 10tons LT208 LT210 Single Drum Vibratory Roller
Related Products
-
4tons LTS204H Tyre Drive Single Drum Vibratory RollerCNY 90000 - 96000MOQ: 1 Unit -
6tons 8tons LTS206H LTS208H-II Hydraulic Drive Single Drum Vibratory RollerCNY 110000 - 135000MOQ: 1 Unit
-
1.2tons LTC2012H Hydraulic Double Drum Vibratory RollerCNY 39000 - 41000MOQ: 1 Unit
-
2tons LTC2020H Hydraulic Double Drum Vibratory RollerCNY 85000 - 89000MOQ: 1 Unit
-
3tons 4tons LTC203P /LTC204P Tire Combined Hydraulic Vibratory RollerCNY 106000 - 116000MOQ: 1 Unit
Single drum vibratory roller
LT208/LT210 suitable for compaction of various non-adhesive materials such as soil, gravel, gravel, gravel mixture, rock fill and various subgrade and pavement works such as stabilized soil. it can be widely used in compaction of engineering foundation of high grade highway, railway, municipal engineering, airport, port, wharf, dyke and various industrial construction sites.
Main Features
Front wheel hydraulic vibration, hydraulic steering, rear wheel mechanical drive, equipped with four gears forward and backward non clutch power shift gearbox, easy to operate, strong climbing ability and fast transition speed.
Special vibrating wheel technology, large centrifugal force, high compactness and high working efficiency.
Strengthen special rear axle. The brake system adopts the Air-over-oil caliper disc brake, which has good braking effect and is safe and reliable.
Articulated frame, light steering, small turning radius, flexible maneuver.
The rear hood can be turned freely at large angle , Engine inverted, the humanized layout, and the maintenance is within reach.
Unique appearance modeling, compact structure, low center of gravity, smooth driving, good front and rear view.
Adopt two-stage damping, install adjustable elastic suspension damping seat, driving comfortable.
Main Technical Parameters
MODEL |
UNIT |
LT208 |
LT210 |
Operating mass |
kg |
8000 |
10000 |
Vibration round width |
mm |
1220 |
1220 |
Compaction width |
mm |
1700 |
1800 |
Static linear load |
N/cm |
235 |
293 |
Ground clearance |
mm |
320 |
320 |
Wheelbase |
mm |
2750 |
2750 |
Turning radius |
mm |
6000 |
6000 |
Grade ability |
% |
35 |
35 |
Vibration amplitude（Nominal amplitude） |
mm |
0.4 |
0.4 |
Vibration frequency |
Hz |
40 |
40 |
Centrifugal force |
KN |
82 |
110 |
Travel speed |
Km/h |
2.2/5.1/8.2/12.8 |
2.2/5.1/8.2/12.8 |
Diesel model |
CF4C90G-Z |
CF4C90G-Z |
|
Rated power |
kw |
66.3 |
66.3 |
Rated speed |
r/min |
2400 |
2400 |
Overall dimension |
mm |
5050*1880*2690 |
5050*1880*2690 |
Fuel tank volume |
L |
190 |
190 |
Hydraulic oil tank volume |
L |
96 |
96 |
