LFP135Ah Standard Module (VDA) Vda Lithium Iron Phosphate Battery Wholesale Vda Lithium Ion Battery Exporter
LFP135Ah Standard Module is the typical 355 VDA module and is composed of 1P4S LFP79148102-135Ah, data collecting unit of BMS and fixed fittings. The capacity and voltage of LFP135Ah Standard Module is 12.8V135Ah. Standard module as the standard group structure can be connected in series to expand voltage and in parallel to expand capacity.
Standard Module VDA Specification
No. |
Items |
STANDARD MODULE |
Note |
|
LFP135Ah 1P4S-12.8V135Ah | ||||
1 |
Nominal voltage(V) |
12.8 |
||
2 |
Operating voltage(V) |
min |
10 |
T: 25±3℃ |
3 |
max |
14.6 |
T: 25±3℃ |
|
4 |
Nominal capacity(Ah) |
135 |
1/3C，100%DOD |
|
5 |
Nominal energy（KWh ） |
1.728 |
1/3C，100%DOD |
|
7 |
Group mode |
1P4S |
||
8 |
Module weight（kg） |
11.6 |
||
9 |
Maximum continuous charge current（A） |
187.2 |
||
10 |
Maximum continuous discharge current（A） |
270 |
||
11 |
Maximum pulse charge current（A） |
270 |
@10S，SOC≤70% |
|
12 |
Maximum pulse discharge current（A） |
405 |
@10S，SOC≥30% |
|
14 |
SOC operating range（%） |
10~90 |
||
15 |
Module cooling method |
Natural cooling |
||
16 |
Module heating method |
No |
Or heating film |
|
17 |
Temperature detector qty. |
2 |
||
18 |
Shipping capacity (SOC) |
50%±5 |
SOC is consistency in the same batch |
|
19 |
Temp. Condition（℃） |
Charge |
0~55 |
|
Discharge |
-20~55 |
|||
Storage |
-30~55 |
|||
20 |

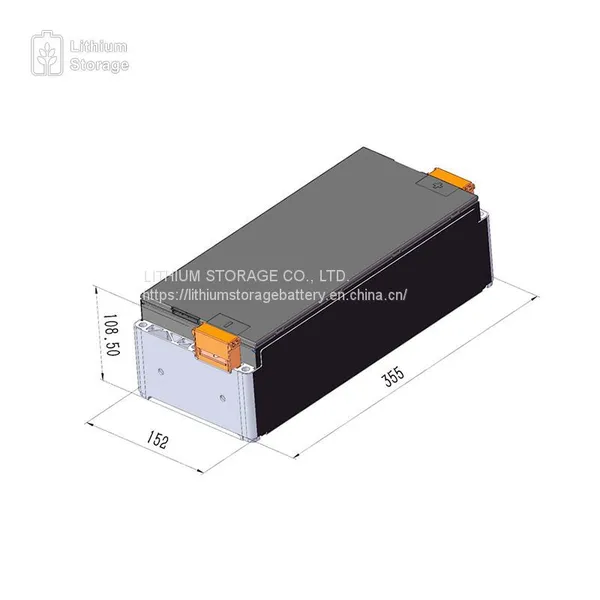

Dimension L （mm） |
355 |
||
21 |
Dimension W（mm） |
152 |
||
22 |
Dimension H（mm） |
108.5 |
||
23 |
Relevant product standard |
GB/T 31484—2015 GB/T 31485—2015 GB/T 31486—2015 |
||
Lfp Prismatic Cells (Prismatic Lithium Iron Phosphate Battery) Chinese manufacturer, offering competitive price, high quality 12.8v Lithium Ion Prismatic Battery, 51.2v Lithium Ion Prismatic Battery Wholesale.
