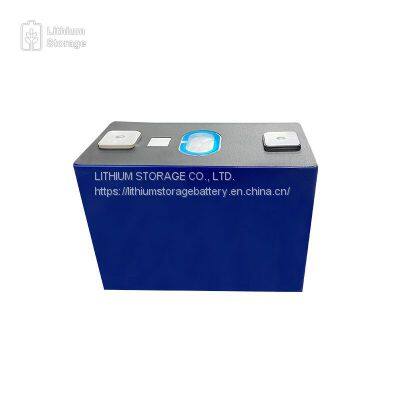

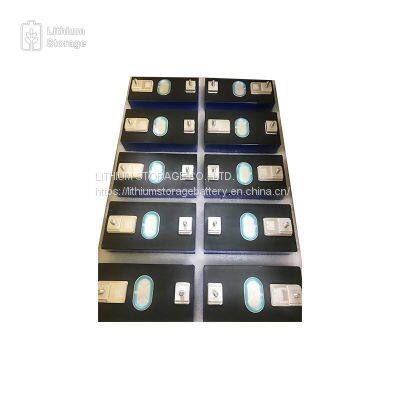

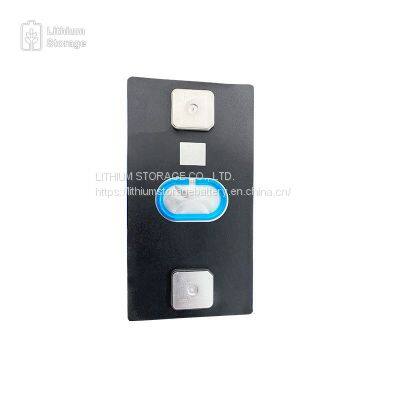

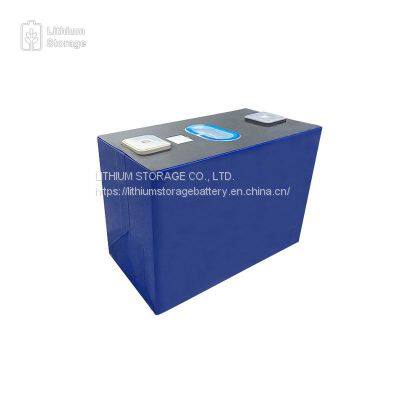

NCM79148102-177Ah Lithium Ion Battery Lfp Prismatic Cells Prismatic Ternary Lithium Battery
NCM79148102-177Ah is prismatic ternary lithium battery (NCM) and is designed to conform to VDA dimension standard. The battery energy density of NCM79148102-177Ah is more than 240Wh/kg. This product has been widely applied for passenger vehicles and vehicles with limited space.
Product Parameter Table
No. |
Item |
Specification |
Note |
1 |
Rated Capacity |
177Ah |
@1/3C |
2 |
Nominal Voltage |
3.73V |
@1/3C |
3 |
Actual Voltage Range |
2.8-4.35V |
|
4 |
Rated Discharge Current |
≤348A |
2C@10min |
5 |
Peak Discharge Current |
≤500A |
@30s |
6 |
Rated Charge Current |
≤210A |
1.2C |
7 |
Peak Charge Current |
≤348A |
2C@10s |
8 |
Operating Temperature |
Charge: -20℃~55℃ |
|
9 |
Storage Temperature |
-30℃~55℃ |
|
10 |
Cell Dimensions |
Thickness: 79.22±0.3mm Length: 149.10±0.6mm Height: 102.77±0.6mm |
|
11 |
Cathode Material |
NCM 523 |
|
12 |
Weight |
2.70±0.1kg |
|
13 |
Energy density |
240Wh/kg (1/3C ) 550Wh/L (1/3C) |
|
14 |
Cycle life |
≥2500 times |
@0.5C/0.5C 100%DOD, 75%EOL |
15 |
Terminal |
Welding/Screw terminal-Nut |
LITHIUM STORAGE can offer different terminal solution for cells with welding terminals, including screw terminals and Nut terminals. These solutions have passed the multiple inspection testing items such as drawing force, shear force and torque testing etc. and have been applied in the various electric vehicle and energy storage projects in the different countries.
