Csbattery 12V50ah Bateria Energy Storage Lead Carbon Battery for Off-Grid-System/Solar-System/Control-System/Ada

Csbattery 12V50ah Bateria Energy Storage Lead Carbon Battery for Off-Grid-System/Solar-System/Control-System/Ada photo-1
Csbattery 12V50ah Bateria Energy Storage Lead Carbon Battery for Off-Grid-System/Solar-System/Control-System/Ada photo-2
Csbattery 12V50ah Bateria Energy Storage Lead Carbon Battery for Off-Grid-System/Solar-System/Control-System/Ada photo-3
Csbattery 12V50ah Bateria Energy Storage Lead Carbon Battery for Off-Grid-System/Solar-System/Control-System/Ada photo-4
Csbattery 12V50ah Bateria Energy Storage Lead Carbon Battery for Off-Grid-System/Solar-System/Control-System/Ada photo-5
US$ 44.77 - 47.83 MOQ: 24 Pieces
Key Specifications
Get Latest Price
Brand Name:
CSBattery
Place of Origin:
China
Model Number:
HDC12-50
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Brand Name CSBattery
Place of Origin China
Model Number HDC12-50
Type Other, lead - acid battery
Size Other, 229*138*208*212mm
Nominal Capacity 50Ah
Nominal Voltage Other, 12v

CSBattery Sealed Lead Carbon 12V Battery HDC serise

---------------------------------------------------------------------------------

CSBattery Sealed Lead Carbon 12V Battery HDC12-50 sepcification


HDC12-50
Nominal Voltage 12V (6 cells per unit)
Design Floating Life @ 25ºC 12 Years
Nominal Capacity @ 25ºC 20 hour rate@ 2.75A, 10.8V 55Ah
Capacity @ 25ºC 10 hour rate (5.0A, 10.8V) 50Ah
5 hour rate (8.8A, 10.5V) 44Ah
1 hour rate (33.6A, 9.6V) 33.6Ah
Internal Resistance Full Charged Battery@ 25ºC ≤9.6mΩ
Ambient Temperature Discharge -15ºC~45ºC
Charge -15ºC~45ºC
Storage -15ºC~45ºC
Max.Discharge Current @ 25ºC 330A(5s)
Capacity affected by Temperature (10 hour ) 40ºC 105%
25ºC 100%
0ºC 85%
-15ºC 65%
Self-Discharge@25ºCper Month 3%
Charge (Constant Voltage) @ 25ºC Standby Use Initial Charging Current Less than 16.5A Voltage 13.6 - 13.8V
Cycle Use Initial Charging Current Less than 16.5A Voltage 13.6 - 13.8V
Dimension (mm*mm*mm) Length 229±1 * Width 138±1 * Height  208±1 (Total Height 212±1)
Weight (kg) 16.1±3%






CSBattery Factory


CSBattery ENERGY CO.,LIMITED is a professional manufacturer and exporter of environmental friendly Rechargeable
Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life
GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as

Solar inverter, Solar charger controller, Solar panel and so on.


Product specifications and models
-----------------------------------------------------


Lead Carbon SEALED FREE MAINTENANCE BATTERY
Model Nominal Voltage (V) Capacity (Ah)  Dimension (mm) Net Weight Gross Weight Terminal
Length Width Height Total Height kgs kgs
HDC12-38 12 38 198 166 174 174 14.5 15 M8
HDC12-50 12 50 229 138 208 212 16.3 16.8 M8
HDC12-65 12 65 350 167 178 178 23.6 24.1 M8
HDC12-80 12 80 260 169 208 227 26.4 26.9 M8
HDC12-90 12 90 307 169 211 216 30.5 31 M8

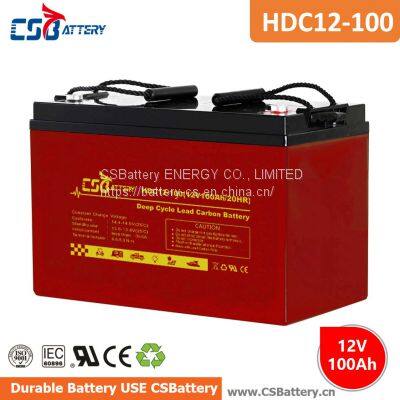

HDC12-100 12 100 331 174 214 220 33.6 34.1 M8
HDC12-110 12 110 407 173 210 233 39.5 40 M8
HDC12-120 12 120 344 172 280 285 41.1 41.6 M8
HDC12-135 12 135 484 171 241 241 45.8 46.3 M8

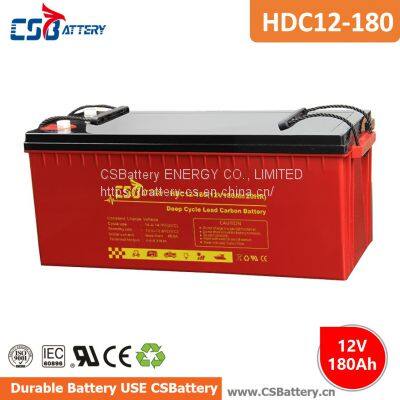

HDC12-180 12 180 532 206 216 222 58.7 59.2 M8
HDC12-200 12 200 522 240 219 225 65.3 65.8 M8
HDC12-230 12 230 520 268 203 209 71.3 71.8 M8
HDC12-250 12 250 520 268 220 226 77.3 77.8 M8
HDC6-200 6 200 306 168 220 222 31.8 32.3 M8
HDC6-225 6 225 260 180 265 272 35 35.5 M8
HDC6-300 6 300 295 178 354 360 46.9 47.4 M8
HDC6-350 6 350 295 178 404 410 55.6 56.1 M8
HDC6-380 6 380 295 178 404 410 57.1 57.6 M8
HDC2-600 2 600 301 175 331 366 39 39.5 M8
HDC2-800 2 800 410 176 330 365 53 53.5 M8
HDC2-1000 2 1000 475 175 328 365 63 63.5 M8
HDC2-1500 2 1500 401 351 342 378 98 98.5 M8
HDC2-2000 2 2000 491 351 343 383 132 132.5 M8
HDC2-2500 2 2500 712 353 341 382 182 182.5 M8
HDC2-3000 2 3000 712 353 341 382 192 192.5 M8



Product Tags: solar battery , gel battery , lead acid battery , 12v battery , ups battery
