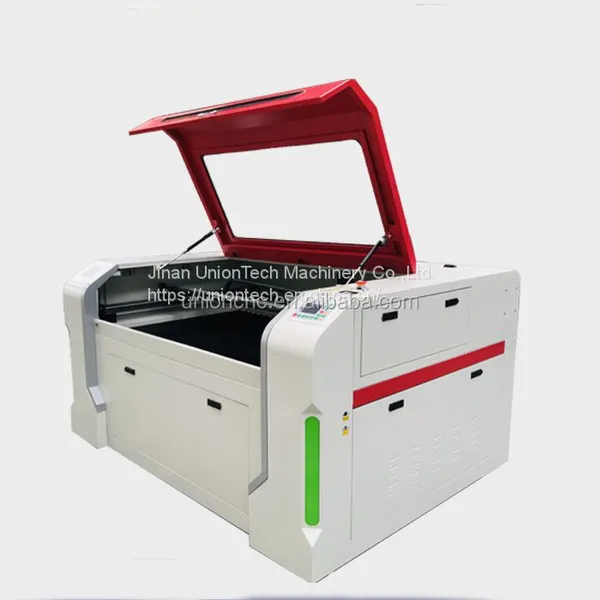

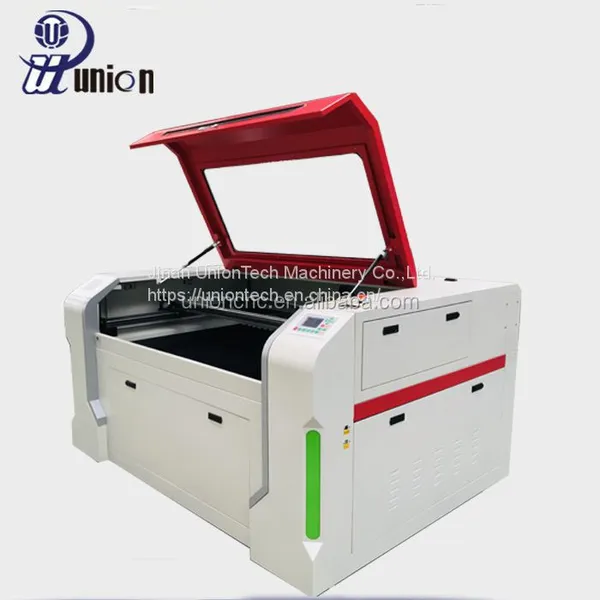

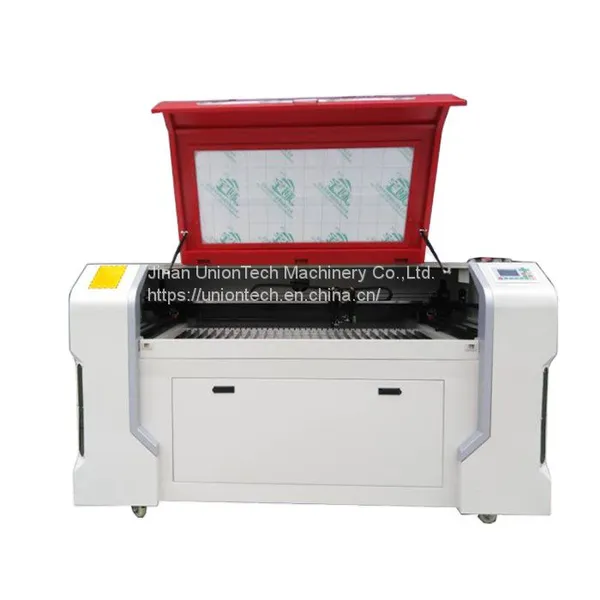

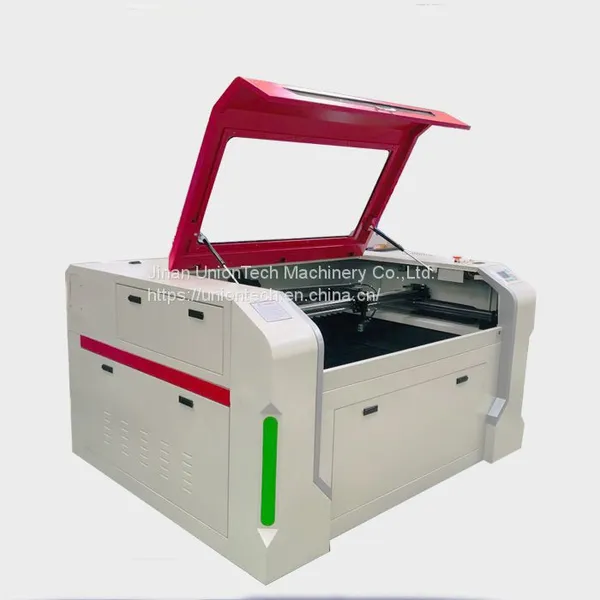

Help CenterDiscounted New Designed 1390 Laser Cutter Wood Acrylic Co2 Laser Engraver Cutting Machine
Related Products
-
High Speed Co2 Laser Wood Acrylic Engraving And Cutting Machine Co2 Laser Non-metal Carving CutterUS$ 3000 - 3999MOQ: 1 Set -
Professional Factory 100w Co2 Acrylic Leather Wood Cutter Nonmetal 1390 3D Co2 Laser Engraving MachineUS$ 3000 - 3999MOQ: 1 Set
-
1500*3000mm CNC Plasma Cutting Metal Machine For Steel AluminumUS$ 16500 - 18000MOQ: 1 Set
-
Brand New Multi Purpose 1530 Metal CNC Plasma Cutting Machine With Best PriceUS$ 16500 - 18000MOQ: 1 Set
-
CE Certified Plasma Cutting Machine Stainless Steel CNC Plasma Cutter For SaleUS$ 16500 - 18000MOQ: 1 Set
High Quality Co2 Laser Engraving PVC Cutting Laser Wood Engraver Machinery For Wood
(For more size,we have:1400*1000mm, 1600*1000mm, 1300*1800mm, 1300*2500mm; we also have smaller size like 300*400mm, 400*500mm, 600*400mm, 600*900mm and so on)
| Advantages of laser cutting for wood: |
--No chips
--thus, no clearance of the machine area necessary
--Cutting of extremely fine, virtually radius
--free contours
--No need to clamp and fix of panels
--Less breakage and waste through contactless laser cutting
--Burr-free cut edges
--no post-processing necessary
--No tool wear and thus
--constant high cutting quality
| Technical parameters: |
Model |
UTL-1390 |
Cutting area |
1300*900mm |
Laser power |
Reci W2 90-100w |
Laser type |
Co2 sealed laser tube, water-cooled |
Engraving speed |
0-60000mm/min |
Cutting speed |
0-40000mm/min |
Laser output |
1-100% software setting |
Resetting positioning accuracy |
≤±0.01mm |
Power supply |
220v, 50hz/60hz |
Operating temperature |
0 degree-45 degree |
Operating humidity |
5-95% |
Min shaping character |
English 1.0*1.0mm |
Graphic format support |
BMP, PLT,DST,DXF,AL |
Software supported |
TAJIMA, CoreIDraw, Photoshop, AutoCAD |
Driving system |
Stepper motor |
Working table |
Aluminum blade working table |
Cooling mode |
Water cooling and protection system |
Optional spare parts |
Up-down worktable, rotary system, honeycombs Double laser heads |
| Machine details: |
| Optional parts: |
Up-down working table Rotary device
CCD camera:
| Applications: |
Applicable Materials: Rubber,plastic,cloth ,leather, woollens ,crystal,organic glass,tile,jade,
bamboo, wood ,etc.
Applicable Indusries:Rubber,plastic,cloth toys,leather ,computer cutting, mould,
crafts ,bamboo and wood ,advertising and building decoration ,packaging and printing, paper
products.
Typical Application:Acrylic crystal words,acrylic fish tank,ceramic crafts,rubber board printing,
applique,special-shaped trademark,engraving and hollowing out patterns or designs on garment
and leather.
| The factory to show: |
Jinan UnionTech Machinery Co., Ltd. is located in Jinan City, Shandong Province. We have always been devoted to the research and manufacture of CNC machines. We have R & D Production Department, Quality Control Department, and Sales & Service Department. Our products are widely used in Woodworking, Advertising, Model, Electricity, CAD/CAM Industrial Models, Clothing, Package Printing, Marking, Laser Sealing and so on. We can offer you high quality products with the competitive price. Our products got the CE certificate. Our main products are robot arm CNC Routers, 5 axis CNC router, Laser Engraving and Cutting Machines, Fiber Laser Cutting Machines, Plasma Metal Cutting machines and so on. With advanced technology, high quality, reasonable price and perfect post-sales service, our products have attained favorable comments among other our clients and our business has developed rapidly. Our products are exported worldwide, including Southeast, the Middle East, Africa, Europe and the U.S.A. We are looking forward to establishing relationships with you in the near future.
| Certificate showing: |
| FAQ: |
UnionTech standard size and configuration CNC router machine delivery time is 7 days, ATC series machine delivery time is 15 days, 4 axis and 5 axis series machine delivery time is 25 days.
Q2. Can you send machine to my home?
Yes, we have cooperation long time shipping agent, famous team in China, they can offer FCA,FOB, CIF, DDU, DDP price, usual suggest receiver address is Business district, usual less big car drive in the Civil area.
Q3. This is the first time to use cnc router machine, is it easy to operate?
Yes, it is easy for a newer, if you can draw with software, the machine operation is no problem, because we will support:
1).English guide video and instruction book together with the cnc router.
2).Free training course in our factory. Engineers are available to serve overseas.
| Product process: |
| Packing and delivery: |
1) Packaging:
Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.
2) Shipping:
We cooperate with COSCO and Maersk company whose experience in the ocean transportation will guarantee your machine safety. We also provide train transport, especially to Russia, Ukraine and other inland countries.
| more other machines: |
|
|
|
|
1325 CNC ROUTER ATC cnc router 4axis cnc router EPS cnc router
1. 24 months quality guaranty, the machine with main parts(excluding the consumables) of Fiber Laser Cutting Machine shall be changed freely if there is any problem during the warranty period.
2. Charge freely lifetime maintenance of Fiber Laser Cutting Machine.
3. Free training course of Fiber Laser Cutting Machine in our factory.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours on line service every day, free technical support.
6. Fiber Laser Cutting Machine has been adjusted before delivery.
7. Our staff can be sent to your company to install or adjust Fiber Laser Cutting Machine if necessary.
