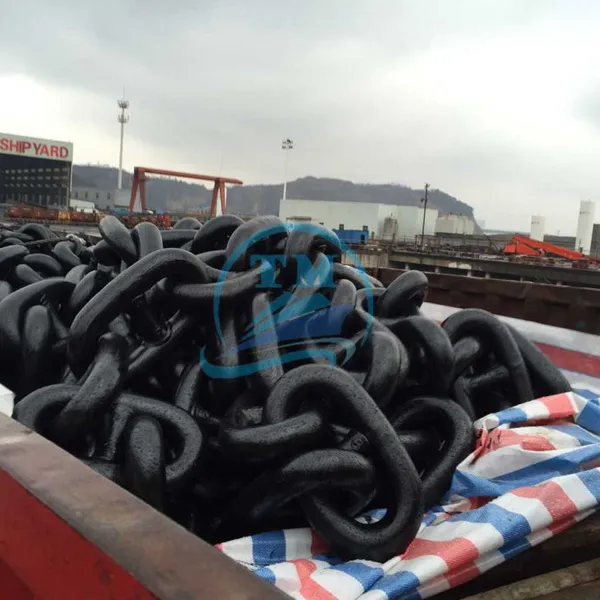

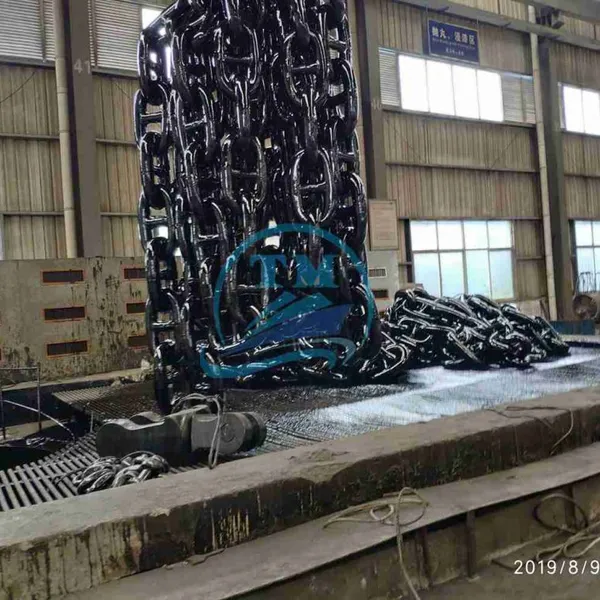

Black coated Studless and Stud Link Anchor Chain

FOB Price

USD $268 - $7100 / Short Ton

1 Short Ton(Min.Order)

Supply Ability 500 Short Ton / Short Tons per Month
Port shanghai
Payment Terms:T/T
Delivery Detail:7 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Model Number:	stud anchor chain	Material:	Steel	Size:	12.5-120mm
Type:	Other, Black Coated / Hot DIP Galvanizing

Product Description

TREASURE MARINE EQUIPMENT CO., LTD is a company specializing in anchor chains and accessories, anchors, hatch cover chains and stainless steel chain products.

Marine anchor chain and accessories: Grade 2, Grade 3 φ12.5 ~φ152 anchor chain and anchor chain accessories (Kenter shackle, end shackle, Joining shackle, Buoy shackle, Crown shackle, etc.);
Mooring Outfittings: Chock, bollards, rollers, fairleads, chain stoppers, etc.;
Anchor: JIS stockless anchor, Hall anchor, SPEK anchor, AC-14 HHP anchor, POOL anchor, MK5, etc.
High-strength chain: φ10~φ42 high-strength short link chain, G80 lifting chain, φ6-φ62 hatch chain, stainless steel chain, etc.

Product Name	Marine Anchor Chain
Material	U2 U3
Surface finish	Black coated or hot dip galvanized or electro galvanized
size	12.5-170mm
Type	Stud or studless
Advantage	In stock and delivery fast
Package	T- bag, Nude or as per your requests
Used	These can be used for a variety of applications.Sail boats and yachts, railings
Cert	ABS,BV,CCS,DNV,GL,KR,LR,NK


Diameter	Proof load		Breaking load		Approx mass (27.5m)
Diameter	AM2 Grade 2	AM3 Grade 3	AM2 Grade 2	AM3 Grade 3	Approx mass (27.5m)
mm	kn	kn	kn	kn	kg
12.5	66	92	92	132	98
14	82	116	116	165	122
16	107	150	150	216	161
17.5	127	179	179	256	193
19	150	211	211	301	227
20.5	175	244	244	349	264
22	200	280	280	401	305
24	237	332	332	476	362
26	278	389	389	556	425
28	321	449	449	642	493
30	368	514	514	735	566
32	417	583	583	833	644
34	468	655	655	937	727
36	526	732	732	1050	815
38	581	812	812	1160	909
40	640	896	896	1280	1007
42	703	981	981	1400	1110
44	769	1080	1080	1540	1218
46	837	1170	1170	1680	1331
48	908	1270	1270	1810	1450
50	981	1370	1370	1960	1573
52	1060	1480	1480	2110	1701
54	1140	1590	1590	2270	1835
56	1220	1710	1710	2430	1973
58	1290	1810	1810	2600	2117
60	1380	1940	1940	2770	2265
62	1470	2060	2060	2940	2419
64	1560	2190	2190	3130	2577
66	1660	2310	2310	3300	2741
68	1750	2450	2450	3500	2909
70	1840	2580	2580	3690	3080
73	1990	2790	2790	3990	3353
76	2150	3010	3010	4300	3634
78	2260	3160	3160	4500	3828
81	2410	3380	3380	4820	4128
84	2580	3610	3610	5160	4440
87	2750	3850	3850	5500	4720
90	2920	4090	4090	5840	5097
92	3040	4260	4260	6080	5326
95	3230	4510	4510	6440	5679
97	3340	4680	4680	6690	5920
100	3530	4940	4940	7060	6292
102	3660	5120	5120	7320	6546
105	3850	5390	5390	7700	6937
107	3980	5570	5570	7960	7204
111	4250	5940	5940	8480	7752
114	4440	6230	6230	8890	8177
117	4650	6510	6510	9300	8613
120	4850	6810	6810	9720	9060
122	5000	7000	7000	9990	9360
