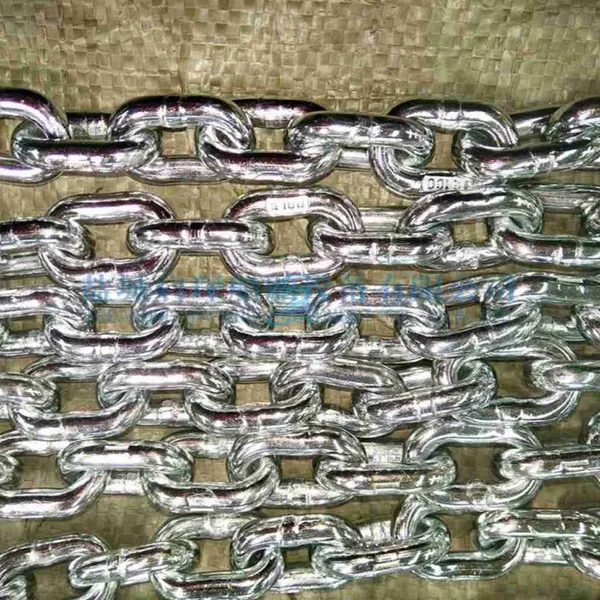

Help CenterHot Dip Galvanized Din 764 Steel Lifting Welded Link Chain
Related Products
-
13mm Stainless Steel Chain Marine Anchor ChainUS$ 1 - 100MOQ: 5 Meters -
Stainless Steel 304 Welded Long Link ChainUS$ 2 - 100MOQ: 5 Meters
-
304 Stainless Steel 12mm Marine Ship Anchor ChainUS$ 2 - 122MOQ: 5 Meters
-
Japanese Standard Chain JISF Stainless Steel ChainsUS$ 2 - 122MOQ: 5 Meters
-
Standard DIN5685 Short/ Long Link ChainUS$ 9 - 122MOQ: 5 Meters
TREASURE MARINE EQUIPMENT CO., LTD is a company specializing in anchor chains and accessories, anchors, Mooring Outfittings,hatch cover chains and stainless steel chain products.
Supply

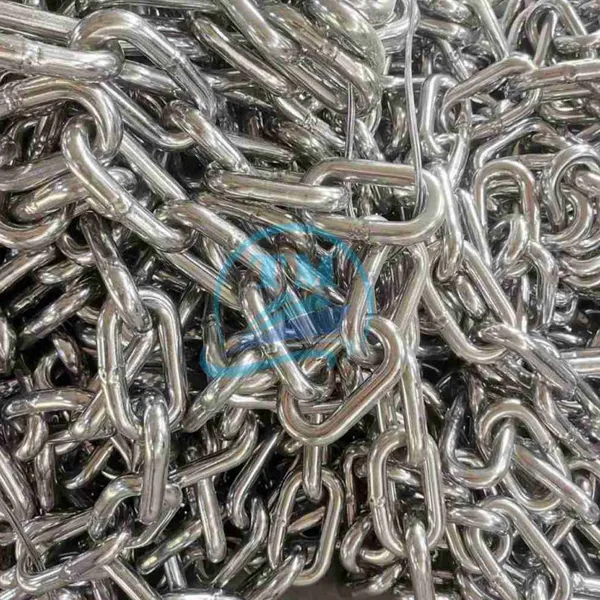

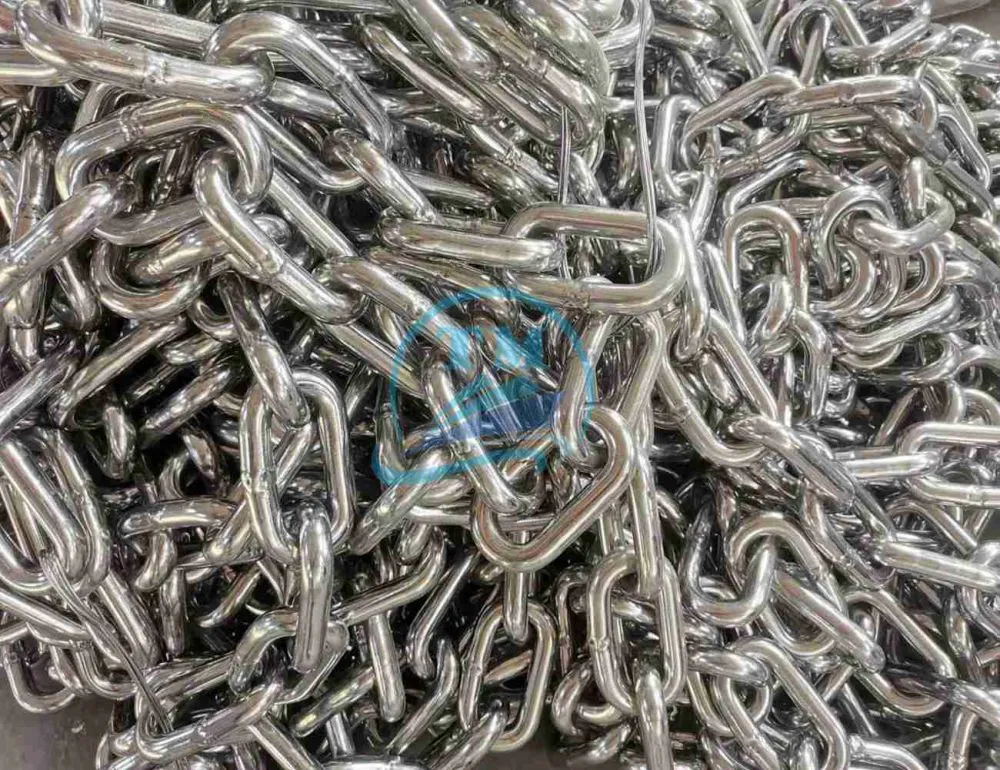

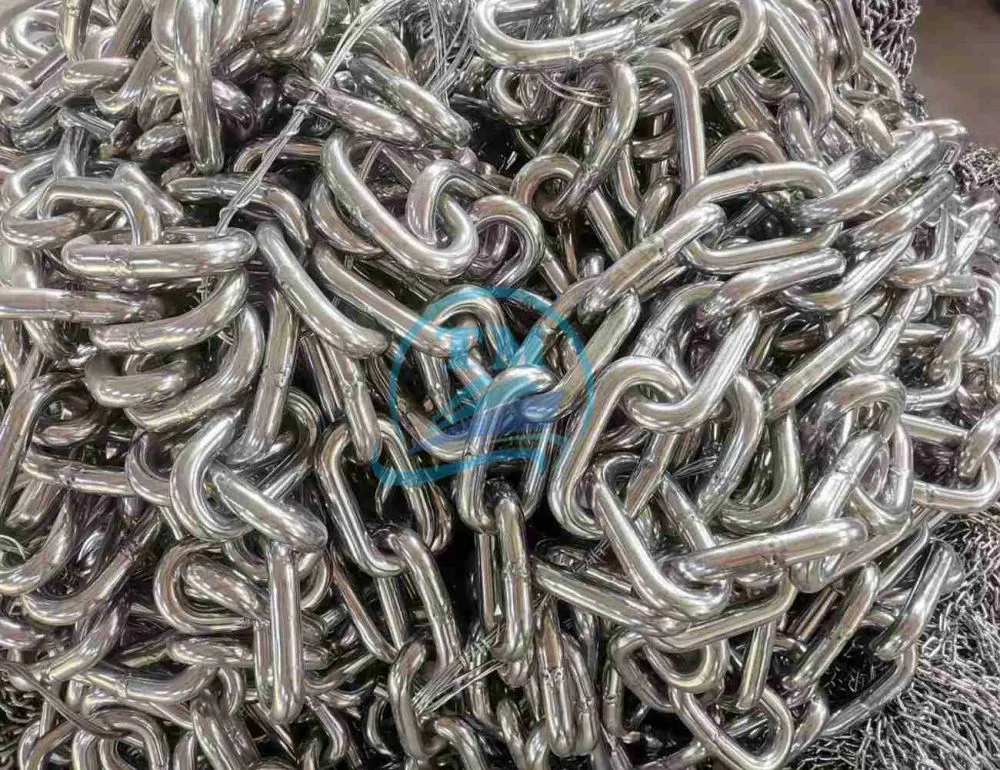

1) Item: stainless steel Chain
2) Material: stainless steel 316 or stainless steel 304 or carbon steel
3) Standard: Australian type Korean type, US type, Japanese type and so on
4)Surface treatment: hot dip galvanized, electro galvanized, oil coated and ect
5) Customer design: our experienced engineer team can developed the products and manufacture in accordance with samples, drawings or only ideas

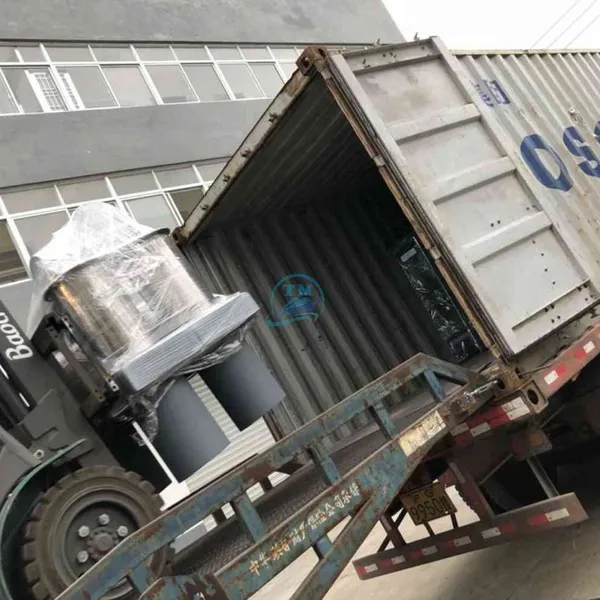

6) Delivery: by sea, by air or by express service
7) Price term: FOB or EXW
8)Diameter: From 2mm to 45mm

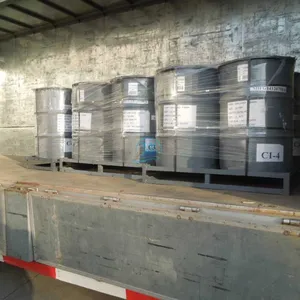

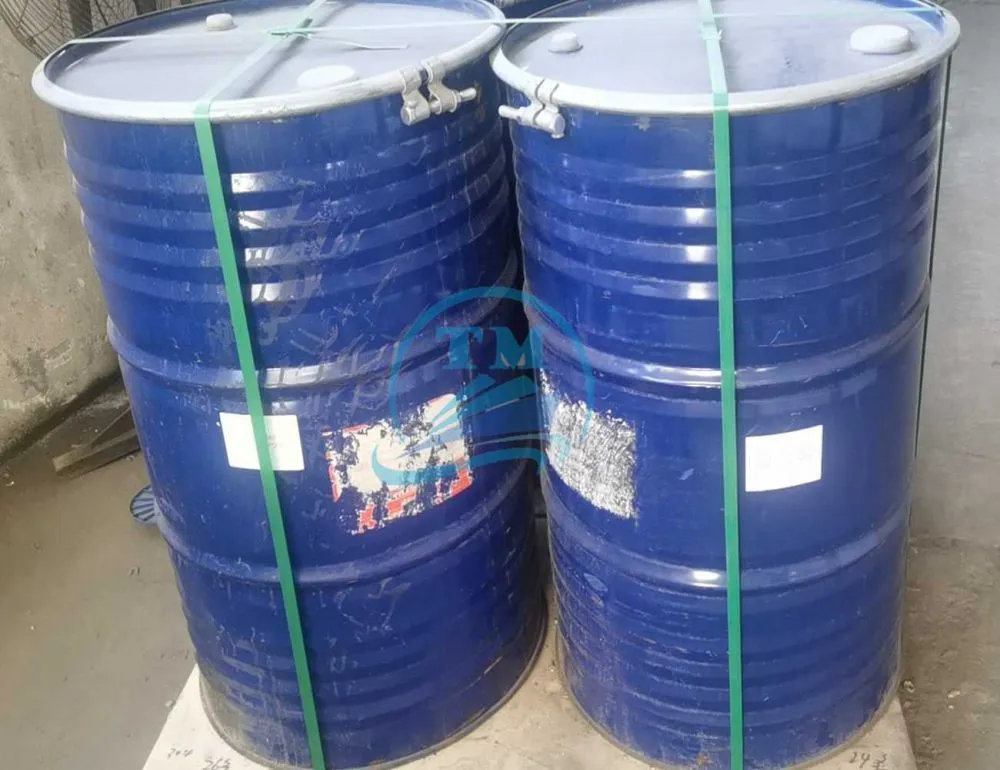

Package: Gunny bag, plastic reel, wooden reel, carton, steel drum or as per your requests
| DIN764 | ||||||||||
|
Diameter |
inside length |
inside width |
outside width |
length 11 link |
100M weight per 100M |
breaking load |
proof test |
|||
| MM | ±MM | MM | ±MM | MM | ±MM | MM | ±MM | KG | KN | KG |
| 4 | 0.2 | 16 | 0.3 | 5 | 14 | 176 | 1.6 | 31.3 | 7 | |
| 0.2 | 0.9 | |||||||||
| 5 | 0.2 | 18 | 0.4 | 7 | 18.2 | 198 | 1.8 | 51.4 | 11.8 | 680 |
| 0.2 | 1 | |||||||||
| 6 | 0.2 | 21 | 0.5 | 8 | 21.5 | 231 | 2 | 74 | 16.5 | 850 |
| 0.2 | 1.1 | |||||||||
| 8 | 0.2 | 28 | 0.5 | 11 | 29 | 308 | 2.2 | 131.5 | 32 | 1680 |
| 0.3 | 1.2 | |||||||||
| 10 | 0.3 | 35 | 0.6 | 14 | 36 | 385 | 2.7 | 200 | 50 | 2630 |
| 0.3 | 1.5 | |||||||||
| 13 | 0.5 | 45 | 0.7 | 18 | 47 | 495 | 3.5 | 350 | 80 | 4200 |
| 0.4 | 2 | |||||||||
| 16 | 0.5 | 56 | 0.9 | 22 | 58 | 616 | 4.3 | 520 | 125 | 6700 |
| 0.5 | 2.8 | |||||||||
| 18 | 0.8 | 63 | 1 | 24 | 65 | 693 | 4.7 | 650 | 160 | 8400 |
| 0.5 | 2.8 | |||||||||
| 20 | 1 | 70 | 1.1 | 27 | 72 | 770 | 5.4 | 820 | 200 | 1000 |
| 6 | 3.2 | |||||||||
| 23 | 1.2 | 80 | 1.3 | 31 | 83 | 880 | 6.2 | 1100 | 250 | 13000 |
| 0.7 | 3.5 | |||||||||
| 25 | 1.3 | 91 | 1.5 | 35 | 94 | 1001 | 7 | 1400 | 320 | 1600 |
