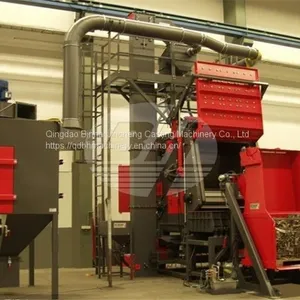

The Barrel Blast Machine
- 0 Set / Sets per Month
Product Description
QGT Series Tilting Drum Type Shot Blasting Machine from professional shot blasting companies is one of the updated products based on GN series steel track shot blasting machine, with the features of high efficiency and uniformity.
Due to the use of the roller mechanism, the drum not only rotates but shakes up and down during steel shot operating. Therefore, the products in the drum are stirred without impact, and the steel shot is evenly shot.
Especially suit for small pieces and thin-walled pieces. All kinds of small castings; forgings; stamping parts which may be stuck in other kinds of shot blasting machines also can be handled.
The Advantages of The Barrel Blast Machine
The main features of this machine are as follows:
(1) High efficiency and uniformity.
Due to the use of the roller mechanism, the drum not only rotates but shakes up and down during steel shot operating. Therefore, the products in the drum are stirred without impact, and the steel shot is evenly shot.
(2) Small pieces and thin-walled pieces are also very suitable.
The cleaning room is manufactured with a roller structure; All kinds of small castings; forgings; stamping parts which may be stuck in other kinds of industrial shot blasting machine also can be handled.
Application of The Barrel Blast Machine
Applicable to the surface cleaning of various types of stamping parts, small and medium-sized castings, forgings, hardware, pipes,etc.,
Diameter of tilting drum: 1000mm
Equipment dimensions: 3972mm x 2600mmx4800mm (length x width x height)
Maximum weight of cleaned work-piece: 25kg
Maximum loading capacity: 300kg
Production efficiency: 300kgs-800kgs / hour
Working principle of The Barrel Blast Machine
First, the preparation work, that is, the dust removal system, separator, elevator, spiral drum screen, drum rotation system, etc., starts to run in sequence, the equipment is ready for work.
Second, load the work-piece into the front hopper, the work-piece enters the drum through the lifting and dumping of the hopper, the gate is automatically closed by the hydraulic cylinder.
Third, the Impeller Head which installed on the gate is activated, and the shot gate valve is automatically opened to start the work-piece cleaning.
The work-piece rotates slightly with the drum while swinging back and forth slightly to receive the steel shot uniformly to remove oxide, welding slag, rust and dirt on the surface of the work-piece until the shot blasting time is reached, the shot gate and Impeller Head are closed.
After the PLC delay, the steel shots mixed in the work-piece completely flow out of the roller, the door opens automatically, and the roller slowly dumps the work-piece.
Then repeat this process until the work is completed and stop in order.
Composition and Main features of The Barrel Blast Machine
Tilting drum:
① The drum is made of 10mm thick rolled high-quality Mn13 high-manganese steel plate, and the service life can reach 1-2 years.
② Compared with traditional equipment, it reduces wearing parts, saves time and money for maintenance and repair, and greatly reduces the use cost and maintenance costs.
③ The drum shell is a 10mm high-quality carbon steel plate; and the diameter of the holes which in the drum is 6mm.
Screw Conveyor:
① 1 set screw conveyor, which located at the top of the shot blasting chamber, used to convey the mixer materials to the Separator. One high-performance gear motor is used to drive this screw conveyor.
② Another set of screw conveyor is located at the bottom of the shot blasting room and is shared motor with the bucket elevator.
③ Spiral blades are made of wear-resistant steel (Mn16).
Bucket Elevator:
① The maximum conveying capacity of the Bucket elevator is 30t / h, which is used to lift the mixer materials to the Separator.
② The Bucket elevator is made of precisely welded steel plates and can be disassembled in sections. With maintenance and inspection windows, easy to overhaul.
③ One drive motor is located on the top of the Bucket elevator, which is used as the power source.
④ The system includes 2 precision-machined wheels, 1 Bucket elevator cover, 1 high-performance wear-resistant belt and several hoppers.
Separator:
① Mainly Used to separate qualified steel shot, broken steel shot and dust.
② Welded structure, there are multiple well-designed cells inside for wind guide. The front is an openable access door for daily observation and maintenance.
③ Multi-stage baffle structure, adjustable. Used to adjust the uniformity of the sand curtain.
④ The following is connected to the bin. After sorting, the qualified steel shot flow through the bin for storage, ready to be reused.
Steel shot distribution system:
① The shot gate valve controlled by the cylinder is used to control the supply of the steel shot at a long distance.
② We can through adjust the bolts on the shot controller to obtain the required shot blasting amount.
③ This technology is independently developed by our company.
Impeller Head assembly:
① Independently developed and manufactured by our company which in accordance with the characteristics of the equipment, has the features of extremely high dynamic balance performance, perfect shot output efficiency and convenient maintenance.
② One impeller, 8 high-hardness, wear-resistant and high-chromium blades, directly pluggable, installed on the impeller; an orientation sleeve and a distribution wheel, which respectively control the shot direction and pre-accelerated shot.
③ The shell of the Impeller Head is made of highly wear-resistant material, and the inner wall is attached with a wear-resistant steel plate, which is easy to replace.
④ Main technical parameter of the Impeller Head:
Impeller size: 380mm
Blade: 8 pieces
Impeller: Double Disc Venturi Sealing Technology
Motor power: 22kw / blasting special motor
The maximum initial velocity of steel shot: 70m / s
Maximum flow of steel shot: 200kg / min
Frequency conversion speed regulation technology can be used to adjust the strength of shot blasting.
