Home > Products > Touch switch > Factory Direct Sale BZCN TS-B003 Hot Sale High Quality Tact Switch

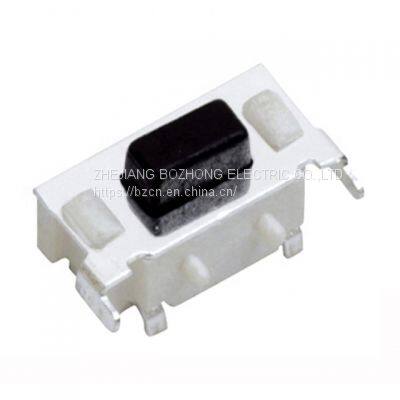

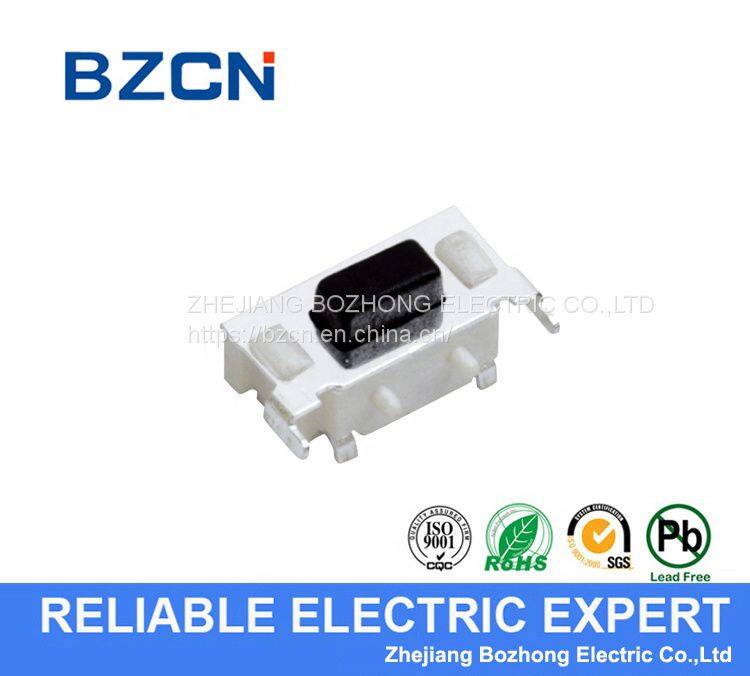

Factory Direct Sale BZCN TS-B003 Hot Sale High Quality Tact Switch
- 9000000 Set / Sets per Month
- Cash
- Side press sinking board switch, game controller, light touch switch, handle button 3 * 4 * 3.5, side press smiling face switch
- Original C&K genuine PTS647SK38SMTR2 LFS 4.5x4.5x3.8-250GF SMT switch
- Original C&K genuine PTS645SK43SMTR92 LFS 6X6X4.3H 260GF SMT switch
- Original C&K genuine PTS641TK25SMTR2LFS 6.2x6.2x2.5 five pin 250GF SMT switch
- USB3.0 two-way switch usb converter
- GO SWITCH switch
Product Details
Brand Name: | BZCN | Place of Origin: | China | Model Number: | B003 |
Max. Voltage: | 12V | Max. Current: | 0.5A |
Product Description

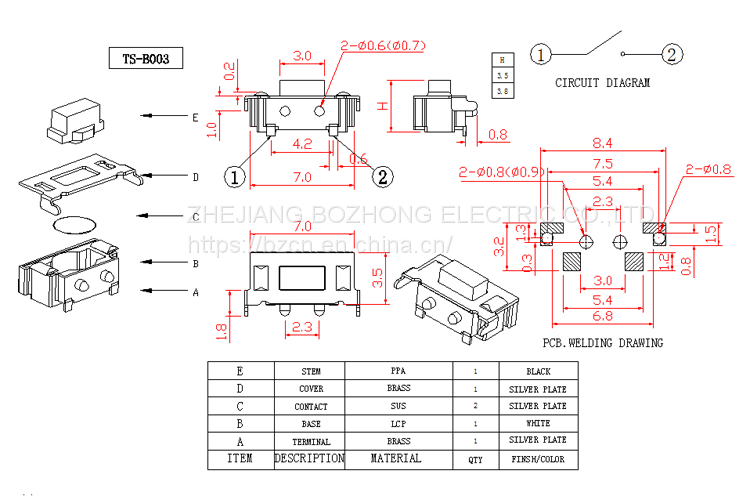

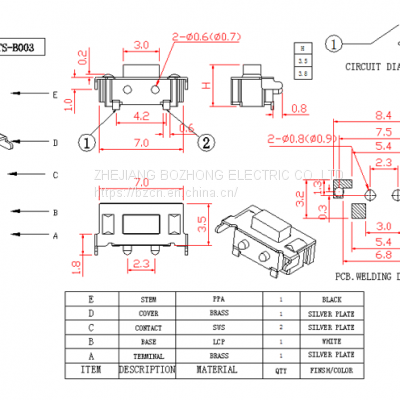

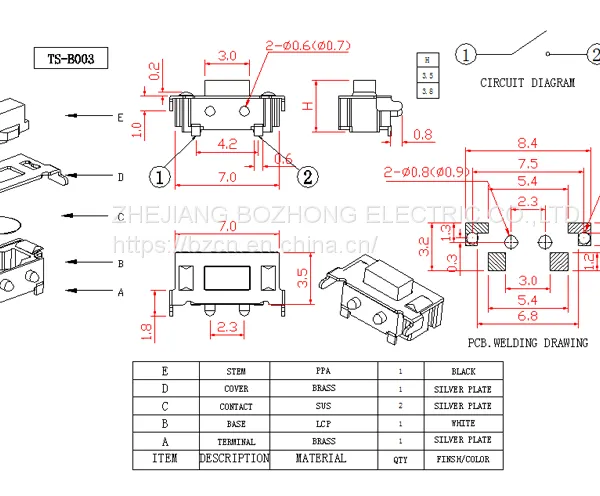

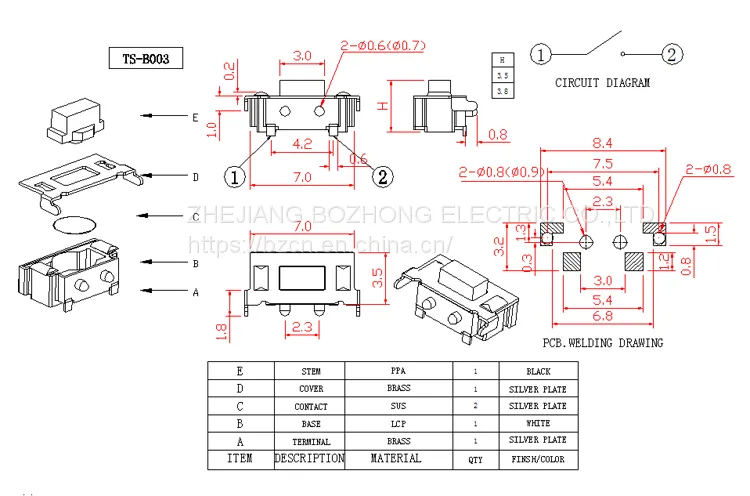

Tact switch series
The main technical parameters:
Contact Resistance: ≤30M?Ω
Insulation Resistance: ≥100MΩ
Withstand Voltage: 250V, AC/min
Temperature range: -40 ~ +80℃
Rated Load: 12V DC 0.1A
Operation force: 180/250 ±50gf
Life of electrical appliances: 10,0000 times
1. Audio-visual products: MP3, MP4, DVD audio;
2. Digital products: digital cameras;
3. Remote control: remote control for vehicles, rolling doors, home anti-theft products;
4. Communication products: mobile phones, telephones, telephones, PDAs, etc.;
5. Household appliances: TVs, microwave ovens, rice cookers, electric fans, electronic human bodies
Scales, electronic fat scales, electronic kitchen scales, etc.;
6. Security products: video walkie-talkies, monitors, etc.;
7. Toys: electronic toys, etc.;
8. Computer products: LCD monitors, flat panels, etc.;
9. Fitness equipment: running machine, etc.;
10. Medical equipment: sphygmomanometer, clinical thermometer, hospital call system, etc.
11. Others: currency detector pen, laser pen, etc.;
1. Question: Are you a factory or a trading company?
Answer: Our factory and all products produced by ourselves.
2. Question: I need a price list for all your products. Do you have a price list?
A: We don't have a price list for all products. Because we have so many products, it is impossible to put all the prices on one list. And the price will continue to change due to production costs. If you want to check any prices of our products, please feel free to contact us. We will send you a quotation as soon as possible!
3. Question: I can't find the product in your catalog. Can you make this product for me?
A: Our catalog shows most of our products, but not all of them. So please tell us what product you need,
And how much you want. If we don't have it, we can also design and make a new mold to produce it. For your reference, it takes about 35-45 days to make an ordinary mold.
4. Q: Can you customize products and custom packaging?
A: Yes. We have customized many products for our customers before. (Mainly wiring harness)
We have made many molds for our customers.
Regarding customized packaging, we can put your logo or other information on the packaging. no
problem. Just point out that this will cause some additional costs.
5. Q: Can you provide samples? Are the samples free?
A: Yes, we can provide samples. Usually, we provide free samples for testing or quality inspection.
But you have to pay for shipping. If you need a lot of items, or each item needs more quantity, we will charge a sample fee.
6. Q: What is your delivery time?
A: We have a lot of products in stock. We can ship products in stock within 3 working days.
If there is no stock, or the stock is insufficient, we will check the delivery time with you.
7. Q: How to ship my order? is it safe?
Answer: For small packages, we will send it by express, such as DHL, FedEx, UPS,,, TNT, EMS. Adoor from there serves the door.
For large packages, we will send them by air or sea. We will use good packaging and ensure the safety.We will be responsible for any product damage caused by delivery.
