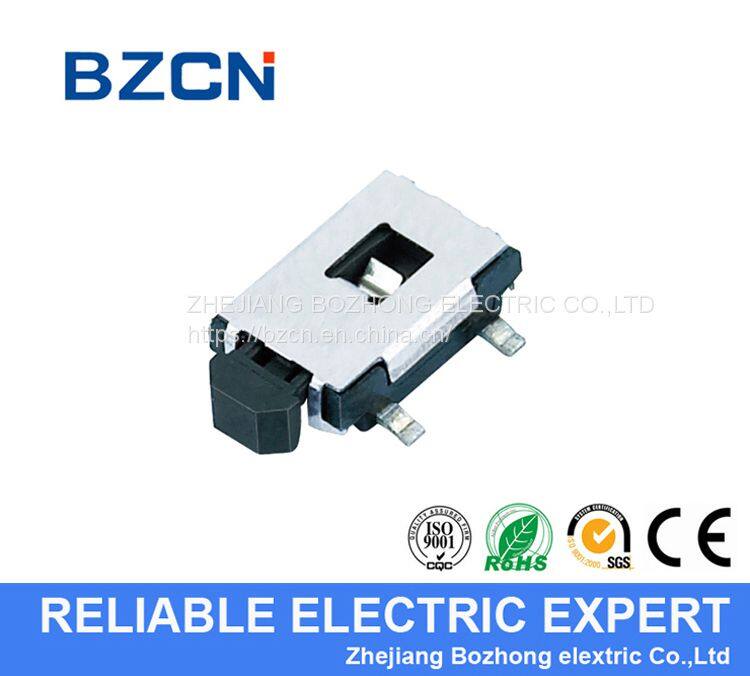

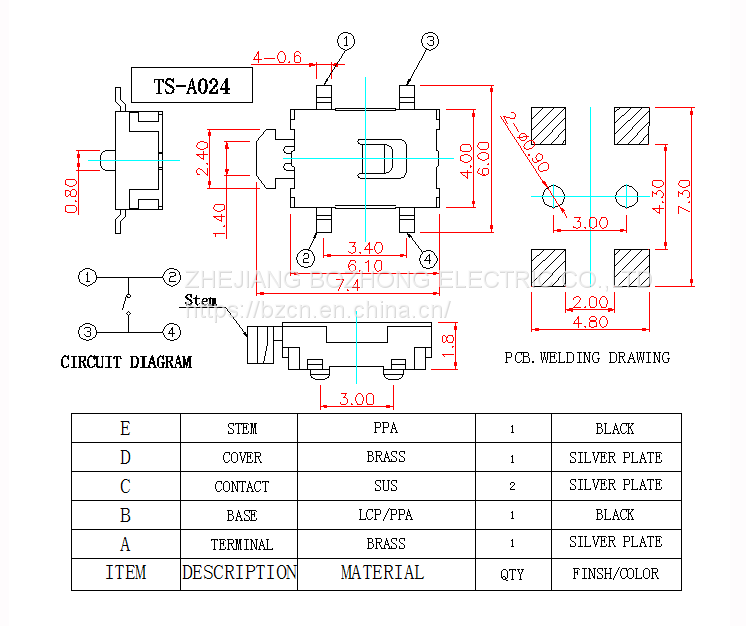

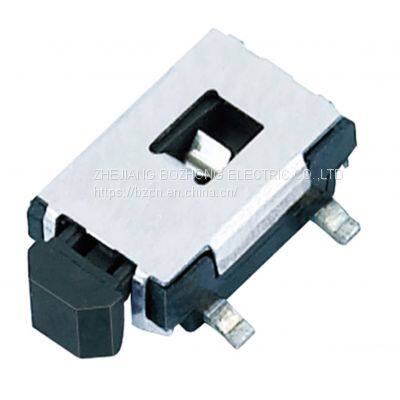

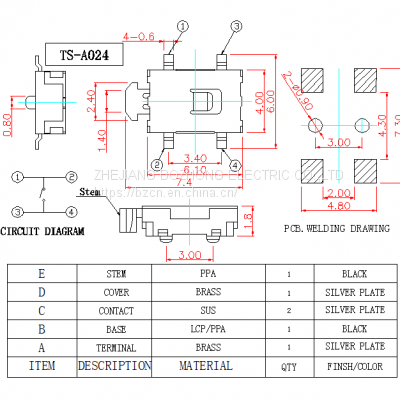

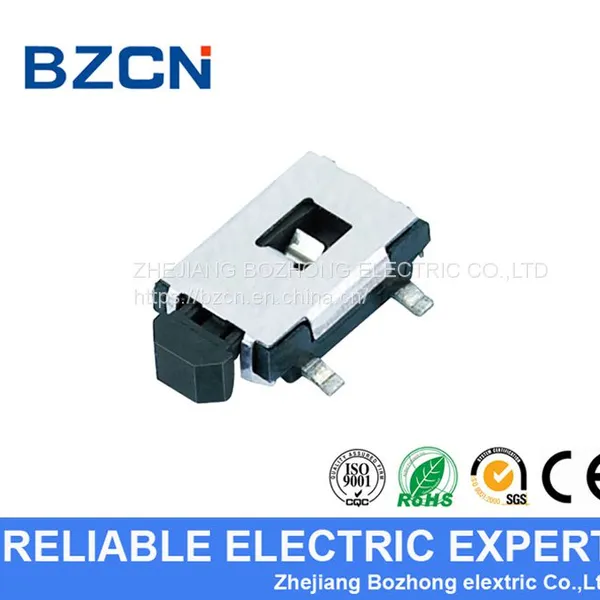

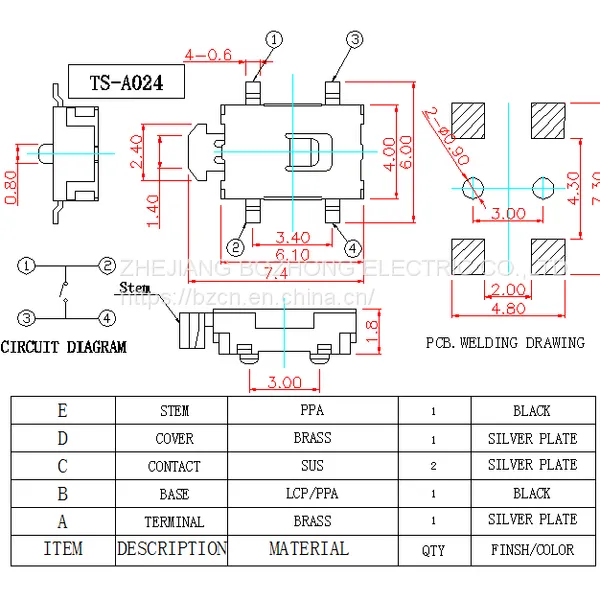

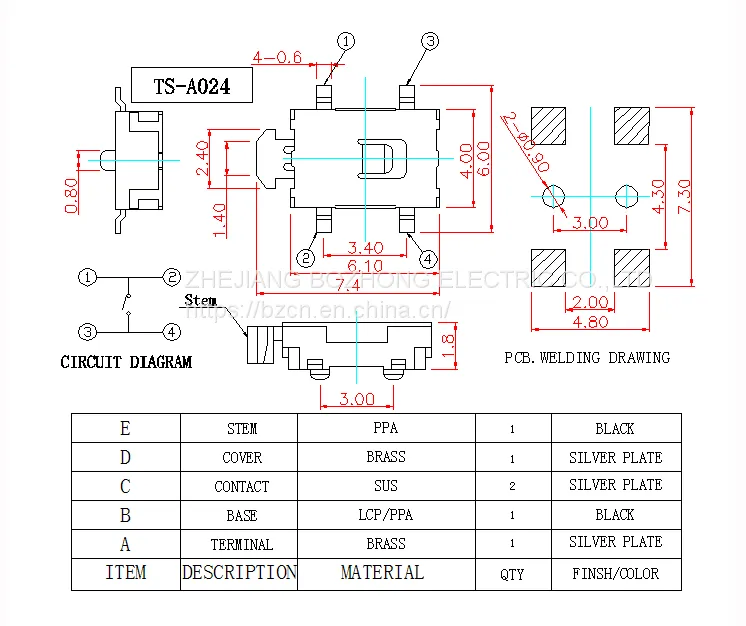

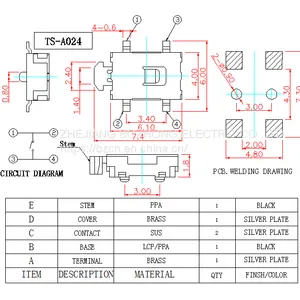

TS-A024 4*6.1 Push Button Switch SMD For Electronic Mobile Devices

Tact switch series

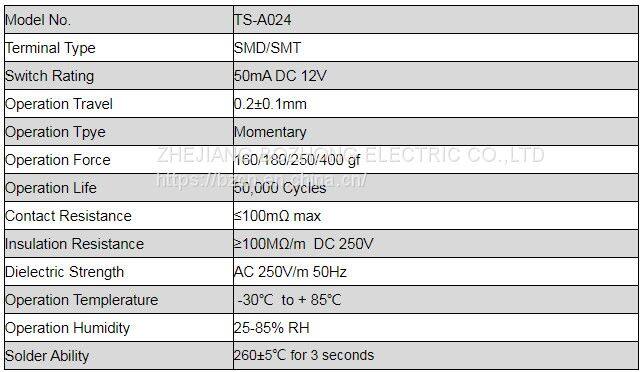

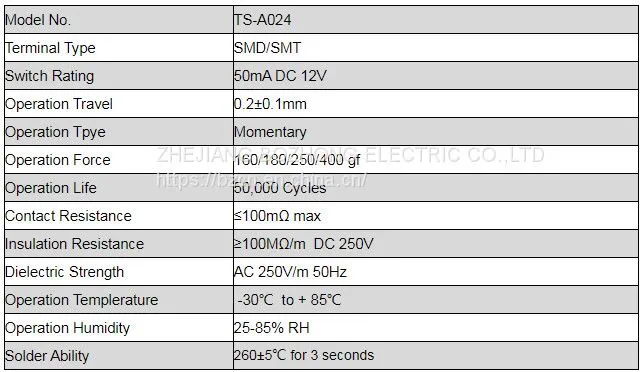

The main technical parameters:

Contact Resistance: ≤30M?Ω

Insulation Resistance: ≥100MΩ

Withstand Voltage: 250V, AC/min

Temperature range: -40 ~ +80℃

Rated Load: 12V DC 0.1A

Operation force: 180/250 ±50gf

Life of electrical appliances: 10,0000 times

1. Audio-visual products: MP3, MP4, DVD audio;

2. Digital products: digital cameras;

3. Remote control: remote control for vehicles, rolling doors, home anti-theft products;

4. Communication products: mobile phones, telephones, telephones, PDAs, etc.;

5. Household appliances: TVs, microwave ovens, rice cookers, electric fans, electronic human bodies

Scales, electronic fat scales, electronic kitchen scales, etc.;

6. Security products: video walkie-talkies, monitors, etc.;

7. Toys: electronic toys, etc.;

8. Computer products: LCD monitors, flat panels, etc.;

9. Fitness equipment: running machine, etc.;

10. Medical equipment: sphygmomanometer, clinical thermometer, hospital call system, etc.

11. Others: currency detector pen, laser pen, etc.;
