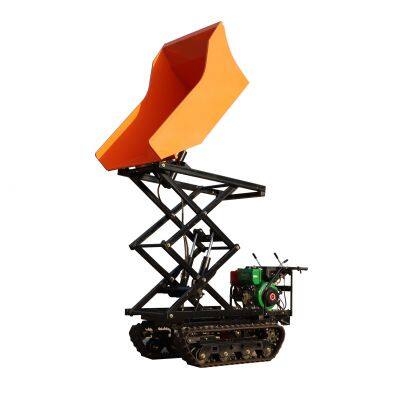

Lifting Height All Terrian Tracked Transporter

mini  crawler type truck dumper with lift container Features

1.Maximum loading weight is 800kgs.

2.The main parts have high quality with global warranty.

3.Easy and comfortable operation due to the intuitive controls.

4.Self-loading shovel not only can be used as a small excavator but also keep the balance of the machine during unloading.

5.Easy climbing and stable crossing the obstacles.

 Model WL-500H

Engine Changfa diesel engine 186F/10HP

Track grounding length 800 mm

Track gauge 600 mm

Track width 200 mm

Start type Electric

Loading weight 500 KG

Gear box (3+1) * 2  configuration high low

Drive speed F 1.8-6.1/R1.8-3.6 km/h

Container size 1400x900x700 mm

Package size 2160x1100x1430 mm

Overall size 2060x1000x1280 mm

Net weight 632  KG

Ground distance 140 mm

Slope angle 20 degree

Lift height 1800 mm

Control type Hydraulic hand hold

Lift container /dumper Hydraulic cylinder
