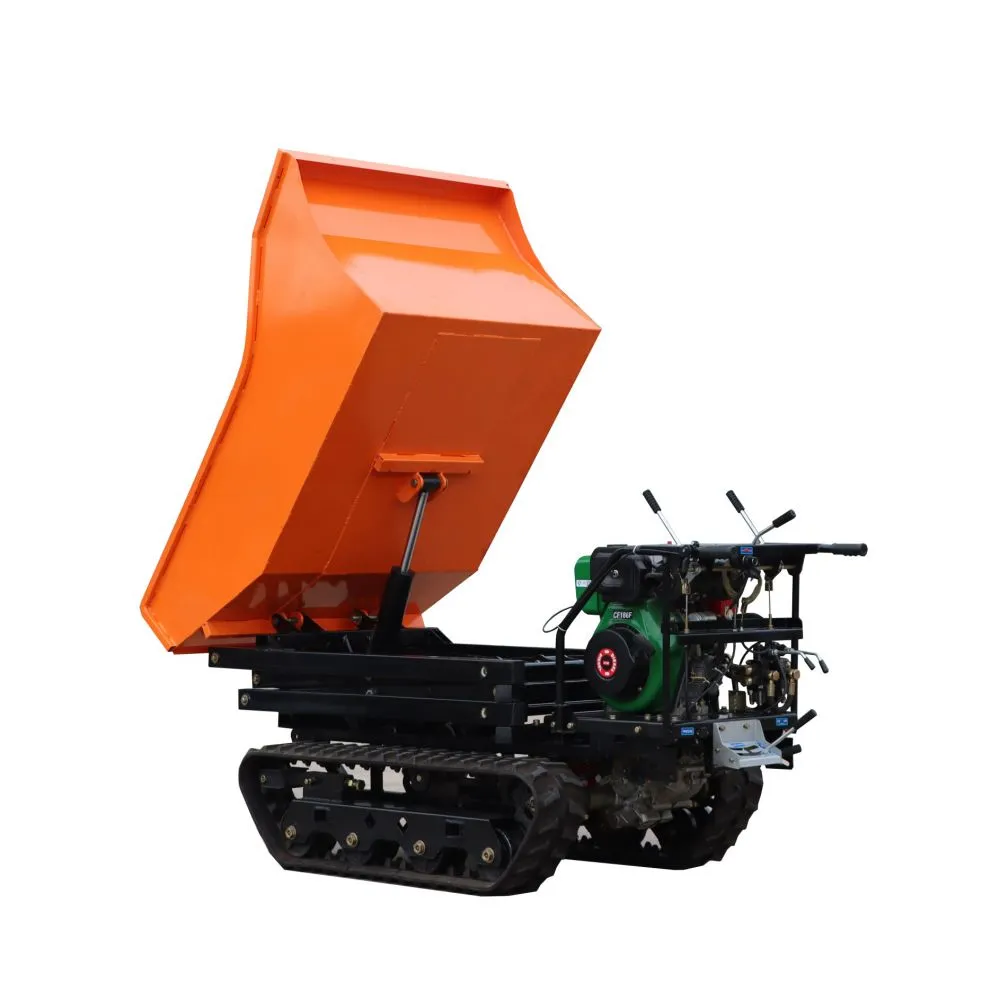

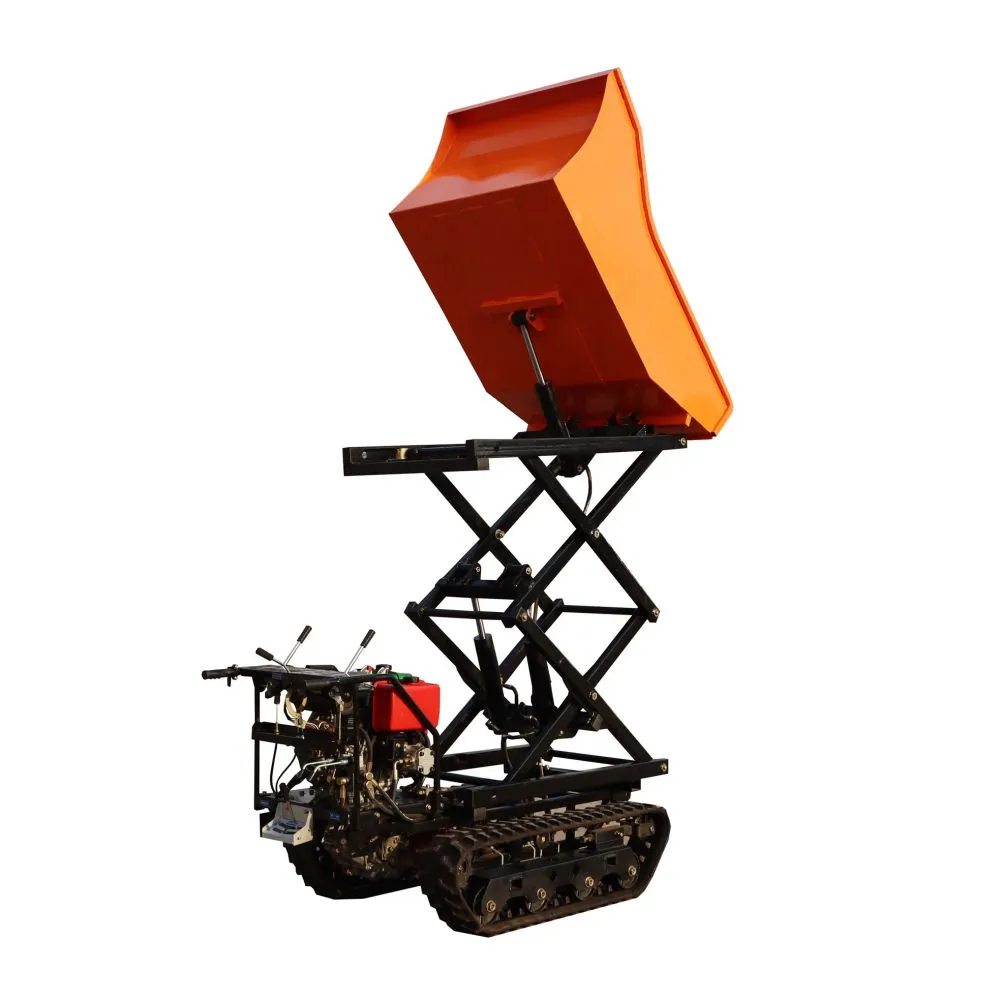

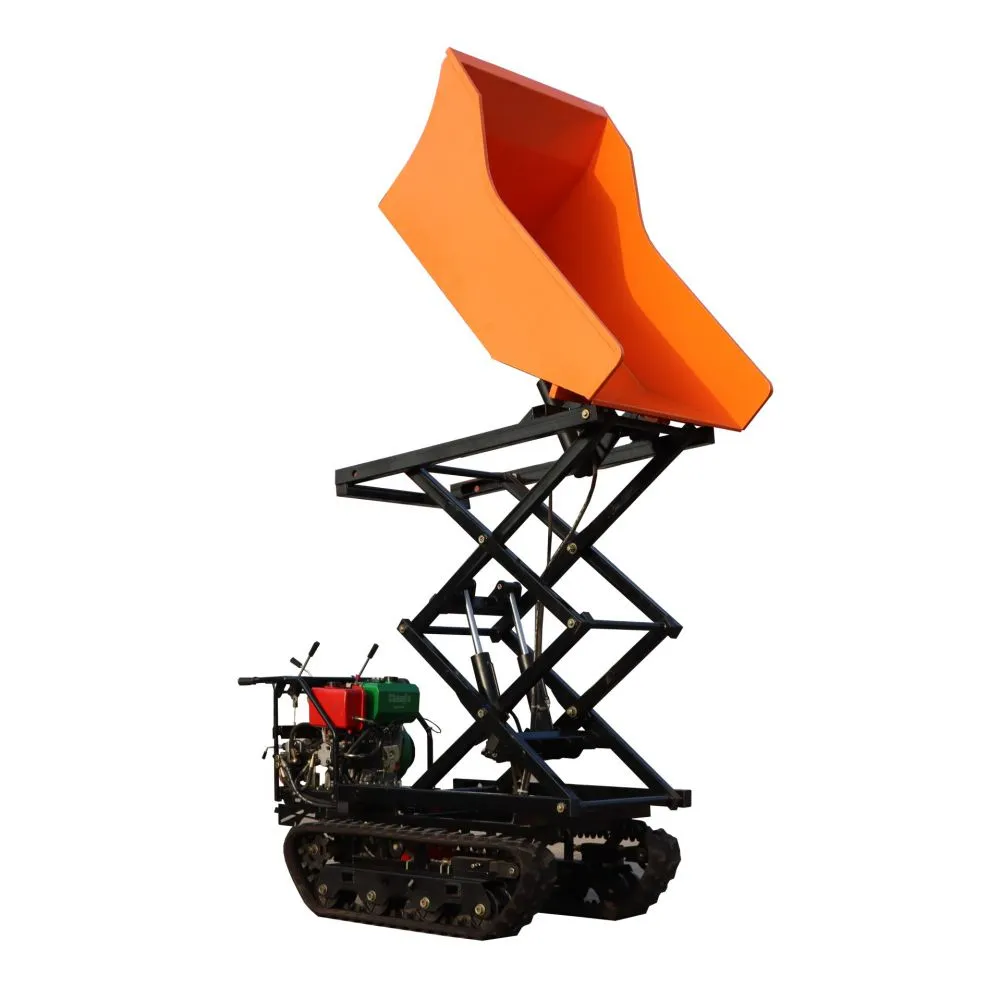

mini crawler type truck dumper with lift container Features
1.Maximum loading weight is 800kgs.
2.The main parts have high quality with global warranty.
3.Easy and comfortable operation due to the intuitive controls.
4.Self-loading shovel not only can be used as a small excavator but also keep the balance of the machine during unloading.
5.Easy climbing and stable crossing the obstacles.
Model | WL-500H |
Engine | Changfa diesel engine 186F/10HP |
Track grounding length | 800 mm |
Track gauge | 600 mm |
Track width | 230 mm |
Start type | Electric |
Loading weight | 500 KG |
Gear box | (3+1) * 2 configuration high low |
Drive speed | F 1.8-6.1/R1.8-3.6 km/h |
Container size | 1400x900x700 mm |
Package size | 2160x1100x1430 mm |
Overall size | 2060x1000x1280 mm |
Net weight | 632 KG |
Ground distance | 140 mm |
Slope angle | 20 degree |
Lift height | 1800 mm |
Control type | Hydraulic hand hold |
Lift container /dumper | Hydraulic cylinder |
