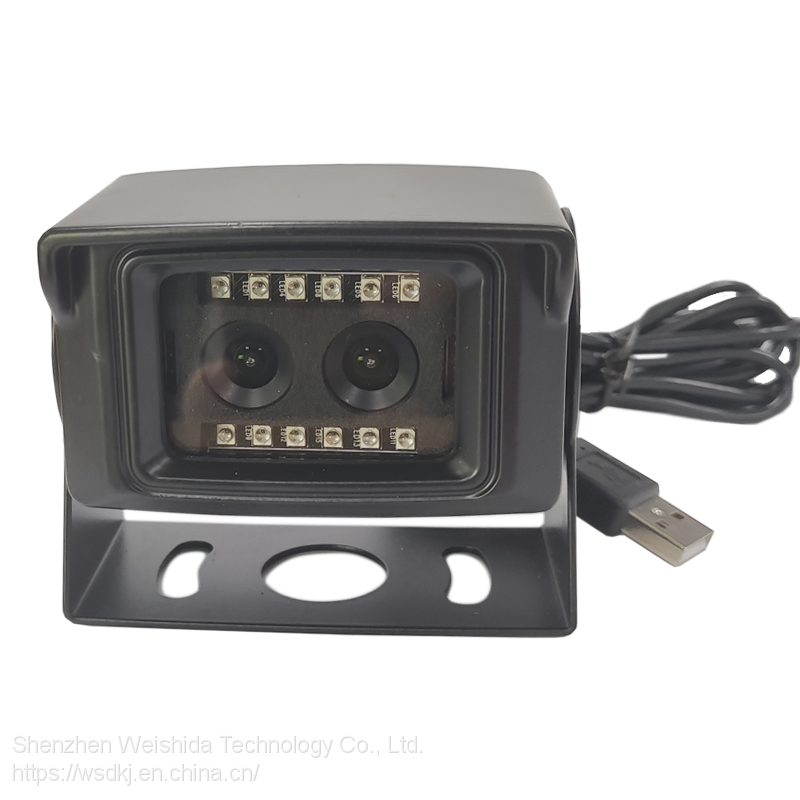

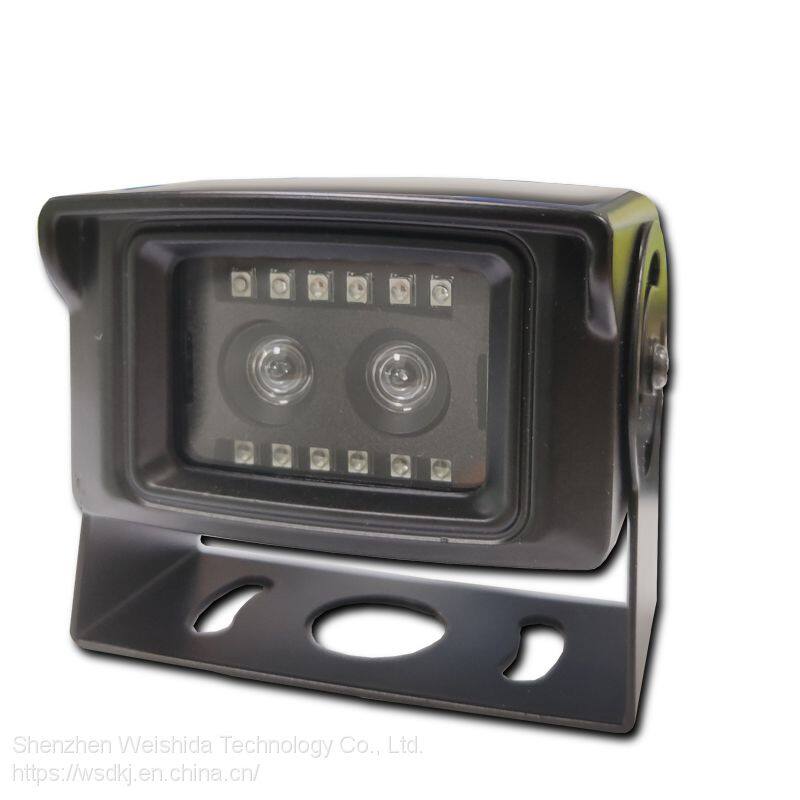

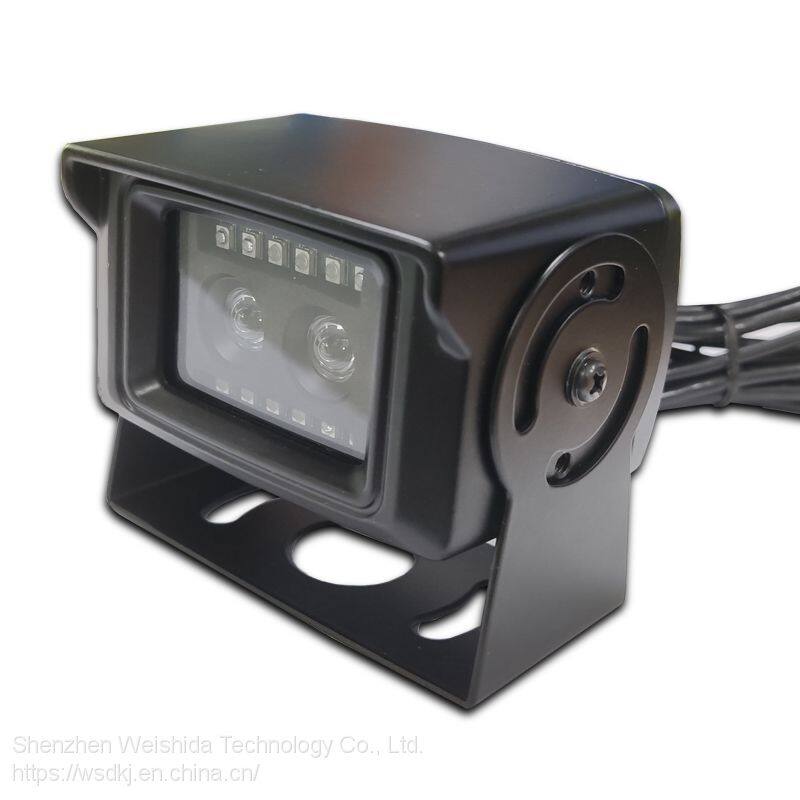

Hd Coms Binocular 2MP Effective Pixel 1080P Dual Lens USB 3D Portrait Detection Face Recognition Camera Module
Signal |
2M B/W |
2M WDR |
REMARKS |
|
Scanning System |
Progressive scan |
|||
Scanning Frequency(H) |
30HZ |
25HZ |
||
Scanning Frequency(V) |
59.9HZ |
50HZ |
||
Image Sensor |
1/2.7 ” CMOS |
1/2.7 ” CMOS |
||
Effective Pixels |
1920X1080 |
1920X1080 |
||
Focal length |
6mm |
6mm |
||
Aperture |
F2.2 |
F2.2 |
||
Lens Construction |
1G4P |
1G4P |
||
|
Field Angle D×H×V(°） |
Sensor（16:9） |
H |
V |
D |
1/2.7‘’ |
54.4° |
31.3° |
62.1° |
|
Pixel size |
3.0umX3.0um |
3.0umX3.0um |
||
|
Image sensor Data output |
Raw Data 10bits |
Raw Data 10bits |
||
Video Comprossor |
MJPG/YUY2 |
MJPG/YUY2 |
||
|
Maximum Frame Rates
|
1920x1080 at 30fps 1280x1024at 30fps 1280x720 at 30fps 1024x768 at 30fps 960x540 at 30fps 800x600 at 30fps 640x480 at 30 fps 352x288 at 30fps 320x240 at 30fps 160x120 at 30fps |
1920x1080 at 30fps 1280x960 at 30fps 1280x720 at 30fps 1024x768 at 30fps 960x540 at 30fps 800x600 at 30fps 640x480 at 30 fps 352x288 at 30fps 320x240 at 30fps 160x120 at 30fps |
MJPG |
|
|
Maximum Frame Rates |
1920x1080 at 5 fps 1280x1024 at 5fps 1280x720 at 10fps 1024x768 at 10fps 960x540 at 15fps 800x600 at 20fps 640x480 at 30 fps 352x288 at 30fps 320x240 at 30fps 160x120 at 30fps |
1920x1080 at 5 fps 1280x960 at 5fps 1280x720 at 10fps 1024x768 at 10fps 960x540 at 15fps 800x600 at 20fps 640x480 at 30 fps 352x288 at 30fps 320x240 at 30fps 160x120 at 30fps |
YUY2 |
|
SNR max |
39dB |
39dB |
||
Dynamic range |
69dB@8x gain |
69dB@8x gain |
||
Min. Illumination |
0.01LUX at F1.2 |
0.01LUX at F1.2 |
||
Digital interface |
5-pin 1.25mm USB2.0 |
5-pin 1.25mm USB2.0 |
||
Transfer rates |
480MB/S |
480MB/S |
||
Power requirements |
5V±5% |
|||
Power Consumption |
NO LED:Max 0.9W |
Max 2.05W |
||
LED:Max1.5W | ||||
Dimensions(PCBA) |
80X16mm |
|||
Weight |
TBD |
|||
|
Operating temperature（℃） |
-30~70 ℃ |
|||
|
Storage temperature(℃) |
-40~80 ℃/0~90RH |
|||
Compliance |
USB-IF WHQL CE RoHS |
|||
Warranty |
1 years |
|||
OS |
Windows XP /vista/seven/8.1/Mac linux2.6.2(include UVC ) |
|||
