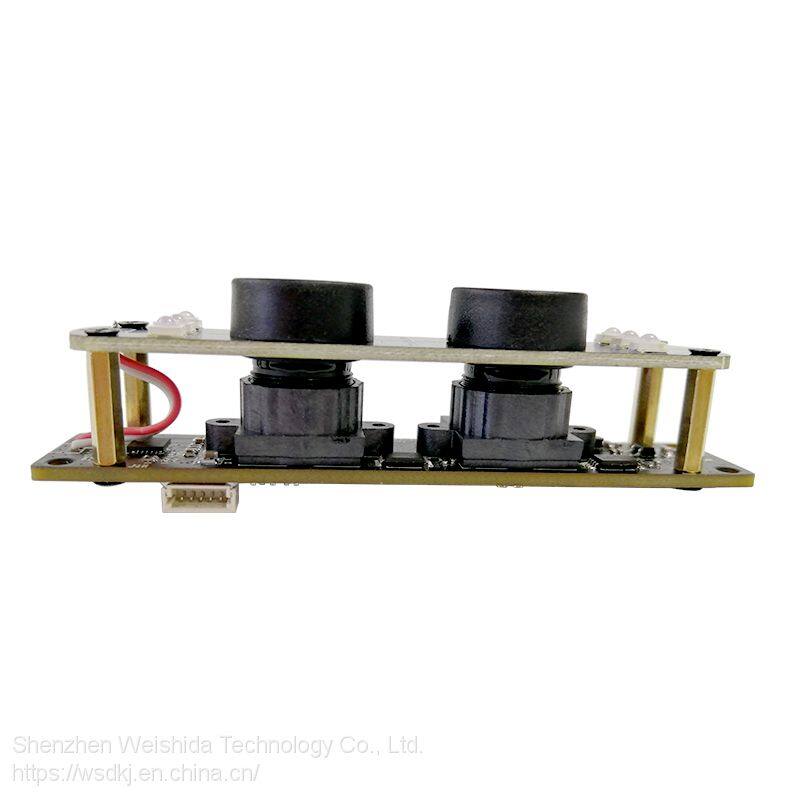

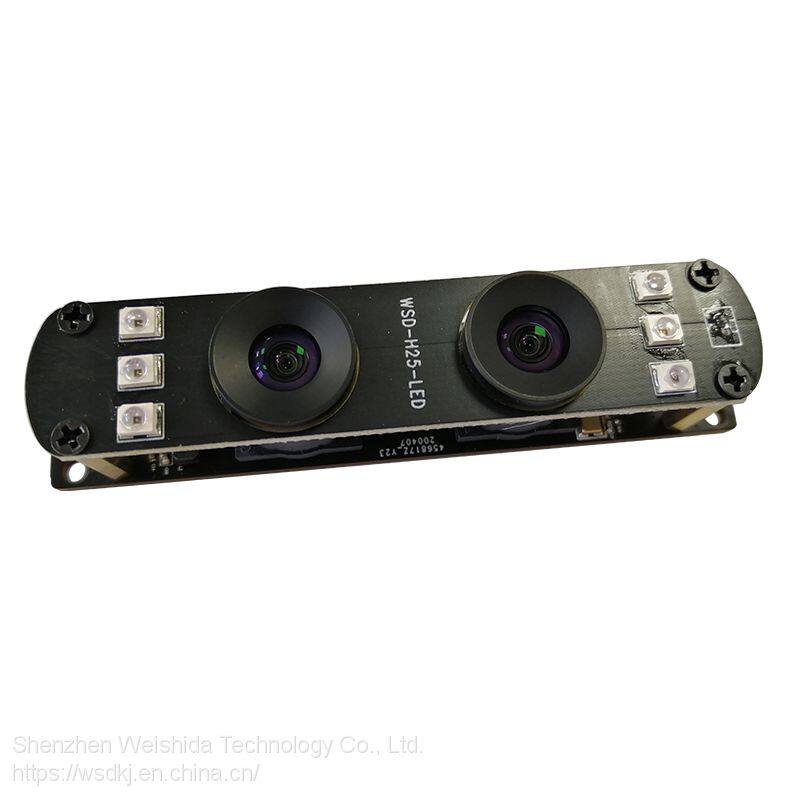

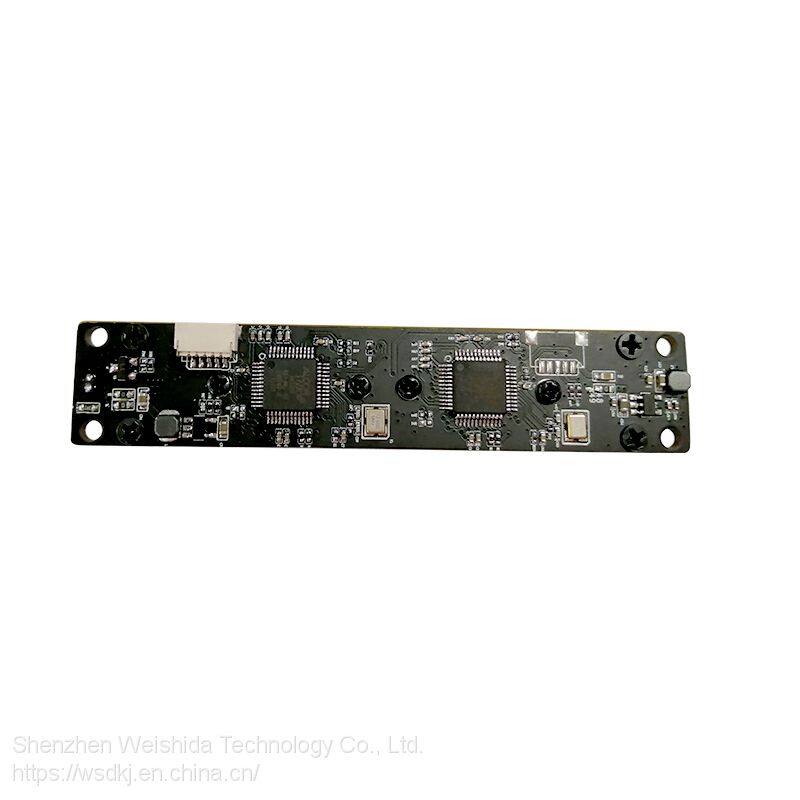

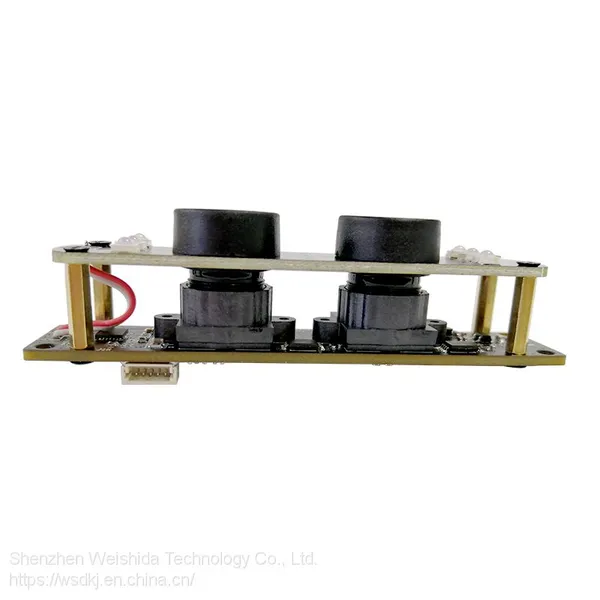

Binocular Camera Usb Iris Camera Module Iris Motorized Zoom Lens Camera For Iris Recognition Solutions Face Recognition UVC

Scanning System

Progressive scan

Scanning Frequency(H)

30HZ

25HZ

Scanning Frequency(V)

59.9HZ

50HZ

Image Sensor

1/2.7 ” CMOS

1/2.7 ” CMOS

Effective Pixels

1920X1080

1920X1080

Focal length

6mm

6mm

Aperture

F2.2

F2.2

Lens Construction

1G4P

1G4P

Field Angle

D×H×V(°）

Sensor（16:9）

H

V

D

1/2.7‘’

54.4°

31.3°

62.1°

Pixel size

3.0umX3.0um

3.0umX3.0um

Image sensor Data output

Raw Data 10bits

Raw Data 10bits

Video Comprossor

MJPG/YUY2

MJPG/YUY2

Maximum Frame Rates

1920x1080 at 30fps

1280x1024at 30fps

1280x720 at 30fps

1024x768 at 30fps

960x540 at 30fps

800x600 at 30fps

640x480 at 30 fps

352x288 at 30fps

320x240 at 30fps

160x120 at 30fps

1920x1080 at 30fps

1280x960 at 30fps

1280x720 at 30fps

1024x768 at 30fps

960x540 at 30fps

800x600 at 30fps

640x480 at 30 fps

352x288 at 30fps

320x240 at 30fps

160x120 at 30fps

MJPG

Maximum Frame Rates

1920x1080 at 5 fps

1280x1024 at 5fps

1280x720 at 10fps

1024x768 at 10fps

960x540 at 15fps

800x600 at 20fps

640x480 at 30 fps

352x288 at 30fps

320x240 at 30fps

160x120 at 30fps

1920x1080 at 5 fps

1280x960 at 5fps

1280x720 at 10fps

1024x768 at 10fps

960x540 at 15fps

800x600 at 20fps

640x480 at 30 fps

352x288 at 30fps

320x240 at 30fps

160x120 at 30fps

YUY2

SNR max

39dB

39dB

Dynamic range

69dB@8x gain

69dB@8x gain

Min. Illumination

0.01LUX at F1.2

0.01LUX at F1.2

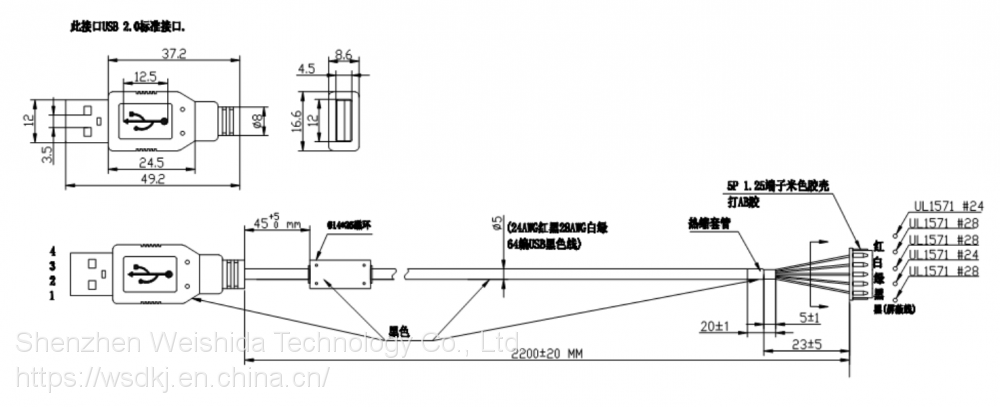

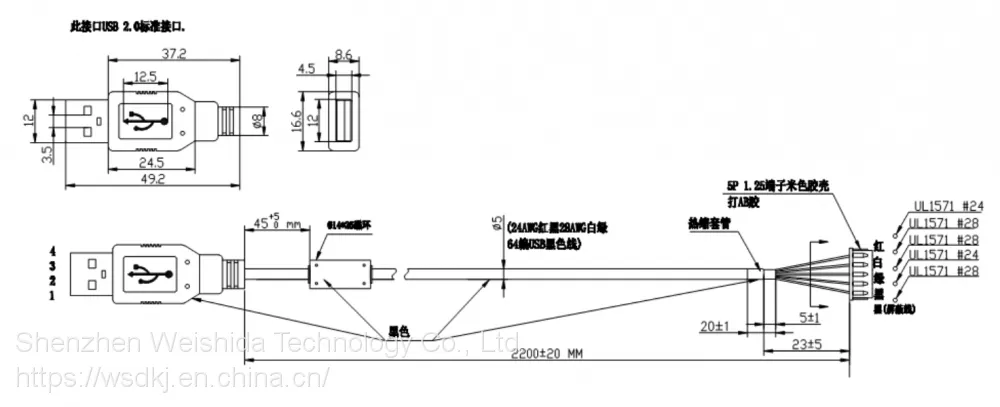

Digital interface

5-pin 1.25mm USB2.0

5-pin 1.25mm USB2.0

Transfer rates

480MB/S

480MB/S

Power  requirements

5V±5%

Power Consumption

NO LED:Max 0.9W

Max 2.05W

LED:Max1.5W

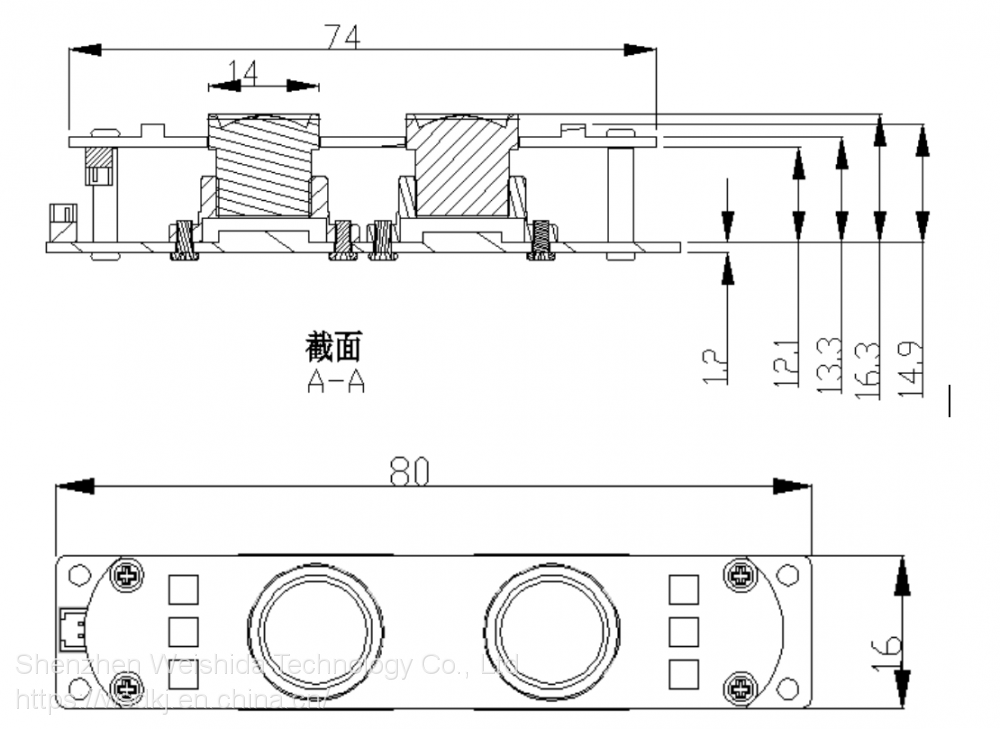

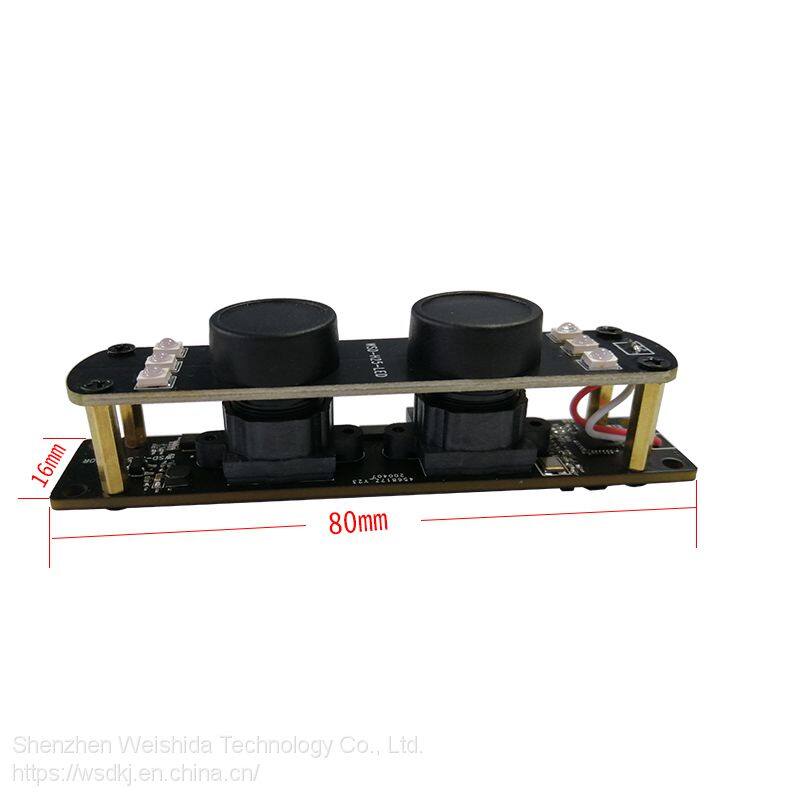

Dimensions(PCBA)

80X16mm

Weight

TBD

Operating temperature（℃）

-30~70 ℃

Storage temperature(℃)

-40~80 ℃/0~90RH

Compliance

USB-IF WHQL CE RoHS

Warranty

1 years

OS

Windows XP /vista/seven/8.1/Mac linux2.6.2(include UVC )
