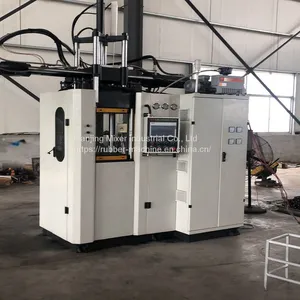

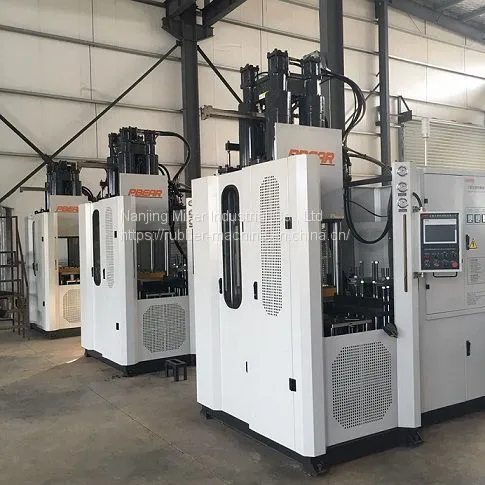

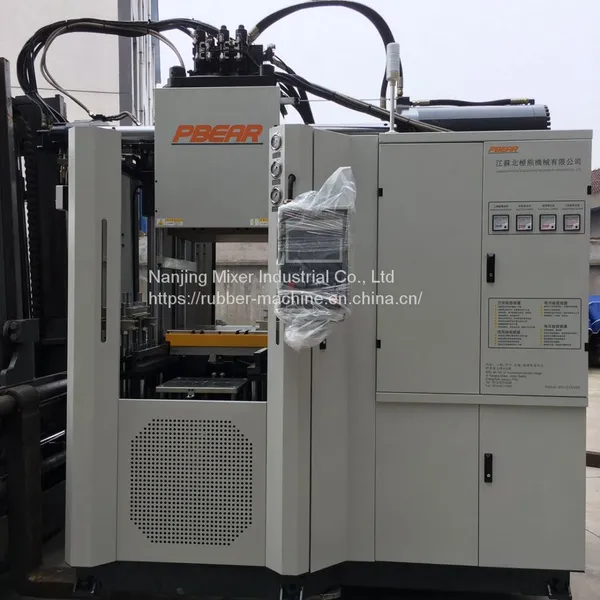

Silicone Injection Moulding Press/ Silicone Injection Machine/Silicone Vulcanizing Press
- 100 Set / Sets per Month
- Shanghai
- T/T L/C
- 60 days
- Auto Oil Seal Metal Case Trimming & Chamfering Machine
- Rubber Strip Cutter/Rubber Strip Slicing Machine (PLC control+Human-machine interface)
- Rubber Roller Mill Machine/Rubber Rolling Mill/Rubber Roll Mixer/Open Roll Mixer
- Rubber Lab Mill/Laboratory Rubber Mill/Laboratory Open Mill/ Lab Mixing Mill/Lab Two Roll Mill
- EVA/PE/EPDM/SBR/CR foam Spitting Machine
- EVA/PE/EPDM/SBR/CR foam Slicing Machine
Product Details
Brand Name: | MXIER | Place of Origin: | China | Model Number: | XLB-300T |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Applicable products:
The horizontal silicone rubber injection molding machine is mainly used in electric silicone insulation, medical silicone products, kitchen silicone wares, and other kinds of silicone parts.
Machine Characteristics:
1. The horizontal silicone injection molding machine adopts FIFO injection structure,the injection force is stable and reliable.
2. Optimized feeding shot rod greatly reduces the rubber leakage and is convenient and fast for maintenance and rubber replacement.
3. Large capacity of feeding structure and the automatic rotary feeding barrel, efficiently feeding, suitable for fast production replacement of different colors and silicone with different property.
4. Totally enclosed safety shield and safety grating, ensuring a safe operation condition for the workers.
5. Hot plate heating zones control makes the temperature more even.
6. More automatic functions available for options.
Standard configuration for the horizontal silicone rubber injection moulding machine:
◆High efficient proportional pressure and proportional flow hydraulic system.
◆Upper mold core lifter.
◆Lower mold in-out device.
◆two levels demolding device.
◆Totally enclosed safety shield and safety light curtain.
◆ Independent temperature control system for plasticizing and injection.
Optional Device the horizontal silicone injection molding machine:
◆Variable pump system.
◆Cold runner device.
◆3RT/4RT multi-layers demolding device.
◆Middle mold in-out device.
◆Pulling claw device.
◆Mold vacuum system.
◆Quick mold changing device.
◆Remote control.
◆Printing function.
◆Enlarged injection volume.
Technical Specification:
Model | XLB-200T | XLB-300T | XLB-400T | XLB-500T |
Clamping force(ton) | 200 | 300 | 400 | 500 |
Stroke(mm) | 500 | 500 | 600 | 600 |
Platen size(mm) | 600x600 | 700x700 | 700x800 | 800x850 |
Main piston diameter(mm) | 355 | 450 | 500 | 560 |
Max.platen gap(mm) | 550 | 550 | 700 | 700 |
Min. Mold thickness(mm) | 60 | 60 | 100 | 100 |
Core Lifter stroke (mm) | 200 | 200 | 250 | 250 |
Injection unit | ||||
Injection volume (CC) | 2000 | 3000 | 4000 | 5000 |
Injection pressure (Mpa) | 188 | 182 | 178 | 178 |
Screw diameter(mm) | 45 | 45 | 55 | 55 |
Nozzle aperture(mm) | 6 | 6 | 7 | 8 |
Others | ||||
System pressure (Mpa) | 21 | 21 | 21 | 21 |
Horse Power(HP) | 15 | 20 | 25 | 30 |
Heater power (KW) | 19 | 22 | 27 | 31 |
Total power(KW) | 36 | 40 | 52 | 58 |
Weight(Kg) | 7500 | 9600 | 12000 | 15000 |
Dimension(LxWxH:mm) | 3400x1600x3000 | 3900x1800x3400 | 4200x2100x3900 | 4600x2300x4200 |
