Antenna KIT for Development Engineers - ANTHOME 808
US$ 36 - 38
/ Set
5 Sets(Min. Order)
- shenzhen
- T/T Cash Escrow Other
- 7 days
You May Like
-
AntennaHome PCB2020 L120 1.13cable IPX, 2.4G Antenna for 802.11 b/g/n, includes frequencies of 2.4G,Bluetooth, ZigBee, and Wi-Fi products
-
H108 Rubber SMA-J ,5.8G antenna for 802.11 a/c, includes frequencies of 5.8G products
-
H195 Rubber high gain SMA-J ,2.4G antenna for 802.11 b/g/n, includes frequencies of 2.4G,Bluetooth, ZigBee, and Wi-Fi products
-
H175 Rubber Magnetic SMA-J ,2.4G antenna for 802.11 b/g/n, includes frequencies of 2.4G,Bluetooth, ZigBee, and Wi-Fi products
-
H220 FiberGlass , N-type , 2.4G antenna
-
PCB4007 L120 1.13cable IPX, GSM/GPRS Antenna for GSM/GPRS/WCDMA/NB-IoT/Cat.1/LoRa 868/915M, includes frequencies of 824M~2170MHz wireless products
Product Details
| Brand Name | AntennaHome | Place of Origin | China | |
| Model Number | ANTHOME 808 |
Product Description

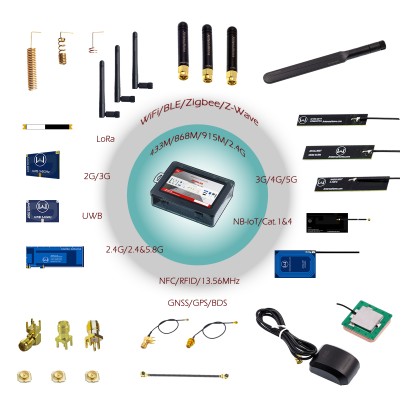

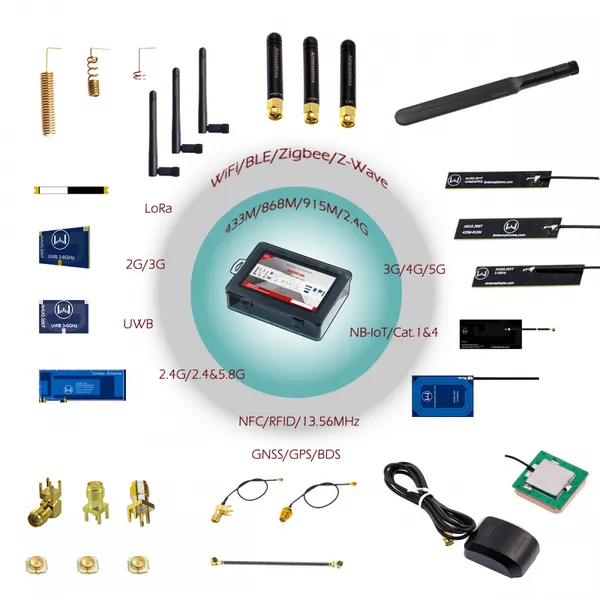

Antenna KIT for Development Engineers -ANTHOME 808
Product Information
Model Name: ANTHOME 808
Size : 225 x 185 x 60 mm
G. W: 445g
Carton: 47x39x12CM, G.W=10KG ( 20PCS )
Notice: Invalid if label broken
Products List:
| Type | P N | Frequency | Product Description | Datasheet Download |
| Spring | AH1G.301 | 433MHz | Spring DIP,433M antenna | /ant/AH1G.301.pdf |
| AH1G.302 | 868/915M , | Spring DIP,868M/915M,GSM900/1800M antenna | /ant/AH1G.302.pdf | |
| 900/1800MHz | ||||
| AH2G.304 | 2.4GHz | Spring DIP,2.4G antenna | /ant/AH2G.304.pdf | |
| H50 Rubber | AH1G.101 | 433MHz | H50 Rubber SMA-J ,433M antenna | /ant/AH1G.101.pdf |
| AH1G.102 | 868/915MHz, | H50 Rubber SMA-J ,868M/915M,GSM900/1800Mantenna | /ant/AH1G.102.pdf | |
| 2G/3G | ||||
| AH2G.104 | 2.4GHz | H50 Rubber SMA-J ,2.4G | /ant/AH2G.104.pdf | |
| H50 Rubber | AH1G.103 | 433MHz | H50 Rubber SMA-J W,433M antenna | /ant/AH1G.103.pdf |
| -JW | AH1G.104 | 868/915MHz, | H50 Rubber SMA-JW ,868M/915M,GSM900/1800M antenna | /ant/AH1G.104.pdf |
| 2G/3G | ||||
| AH2G.105 | 2.4GHz | H50 Rubber SMA-JW ,2.4G | /ant/AH2G.105.pdf | |
| H108 Rubber | AH2G.101 | 2.4GHz | H108 Rubber SMA-J ,2.4G | /ant/AH2G.101.pdf |
| AH2G.102 | 5.8GHz | H108 Rubber SMA-J ,5.8G | /ant/AH2G.102.pdf | |
| AH3G.101 | 824~2170MHz, | H108 Rubber SMA-J ,2G/3G | /ant/AH3G.101.pdf | |
| 2G/3G | ||||
| H195 Rubber | AH2G.103 | 2.4GHz, 5dBi | H195 Rubber high gain SMA-J ,2.4G | /ant/AH2G.103.pdf |
| H200 BIAN | AH3G.102 | 2G/3G/4G | HB180 Rubber SMA-J ,3G/4G/5G | /ant/AH3G.102.pdf |
| NB-IoT /CAT.1 | ||||
| PCB + Cable | AH1G.300T | 433M-915MHz | 433M-915MHz PCB ANT | /ant/AH1G.300T.pdf |
| Internal Ant | ||||
| AH2G.205T | 2.4/5.8GHz | 2.4/5.8GHz PCB ANT | /ant/AH2G.205T.pdf | |
| AH3G.201T | 824~2170MHz, | 824-2710MHz PCB ANT | /ant/AH3G.201T.pdf | |
| 2G/3G | ||||
| AHNG.200T | 13.56MHz | P3020 13.56MHz NFC/RFIDANT | /ant/AHNG.200T.pdf | |
| FPCB + Cable | AH2G.205 | 2.4GHz | FPCL120 1.13cable IPX,2.4G | /ant/AH2G.205.pdf |
| Internal Ant | ||||
| AH3G.204 | 3G/4G/5G | F6330 1.13 Cable IPX,3G/4G/5G ANT | /ant/AH3G.204.pdf | |
| CHIP SMD | AH2G.302 | 2.4GHz | K0801 CHIP SMD, 2.4G Antenna | /ant/AH2G.302.pdf |
| OnBoard ANT | ||||
| AH3G.303 | 2G/3G/4G | K6015 CHIP SMD, 2G/3G/4G Antenna | /ant/AH3G.303.pdf | |
| AHUG.200T | 3.5~6.5GHz | P1410 3.5~6.5GHz OnBoard UWB ANT | /ant/AHUG.200T.pdf | |
| H200 Magnet Metal | AH3G.402 | 2G/3G/4G | 2G/3G/4G,NB-IoT,CAT.1&4, H200 MetalSpring Antenna | /ant/AH3G.402.pdf |
| NB-IoT /CAT.1 | ||||
| H175 Magnet Rubber | AH3G.401 | 2G/3G/4G | H175 Rubber Magnetic SMA-J ,3G/4G/5G | /ant/AH3G.401.pdf |
| NB-IoT /CAT.1 | ||||
| GPS BOX | AHGG.101 | GPS + BD | Q48x38 Box GPS SMA-J , L2000 ,GPS/BD Antenna | /ant/AHGG.101.pdf |
| GPS Internal | AHGG.202 | GPS + BD | Q25x25 Internal GPS , L120,GPS/BD Antenna | /ant/AHGG.202.pdf |
| FiberGlass | AH1G.404 | 433-915MHz | H300 FiberGlass N Conn, 433M-915MHzANT | /ant/AH1G.404.pdf |
| RF Cable ASSY 1# | AHCG.101 | 0~6 GHz | L120 1.13cable SMA-IPX,DIP | /ant/AHCG.101.pdf |
| RF Cable ASSY 2# | AHCG.102 | 0~6 GHz | L120 1.13cable SMA/B-IPX ,DIP | /ant/AHCG.102.pdf |
| RF Connector SMA 1# | AHCG.201 | 0~6 GHz | SMA-K Q4,DIP | /ant/AHCG.201.pdf |
| RF Connector SMA 2# | AHCG.202 | 0~6 GHz | SMA-K Bended Q4 ,DIP | /ant/AHCG.202.pdf |
| RF Connector SMA 3# | AHCG.203 | 0~6 GHz | SMA-K T1.6,DIP | /ant/AHCG.203.pdf |
| RF Connector IPX G1 | AHCG.204 | 0~6 GHz | IPX Mounting G1 ,SMD RF connector | /ant/AHCG.204.pdf |
