Product brief introduction
Thermal flow switch is based on the principle of heat exchange design, probe the built-in heating module as well as the thermal module, heat dissipation of heating module and the flow velocity is closely related to the body. If there is no medium flow in the pipe ,thermal circuit receives a fixed value, when the fluid flows through the probe, thermal circuit receives the signal changes over medium velocity, thermal circuit will convert the temperature difference signals of heating module and thermal module into electrical signals, the processor will convert it into PNP/ NPN/ 4~20mA relay signal output, etc.
Feature

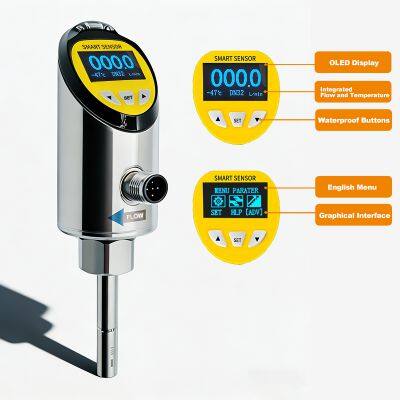

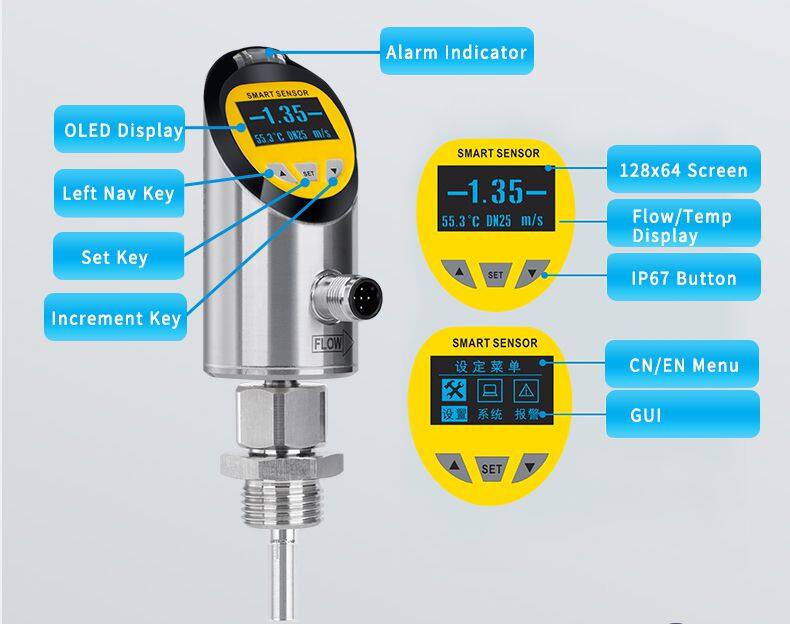

LED indicate the velocity
no moving parts, free maintenance
various length of sensors can be chose

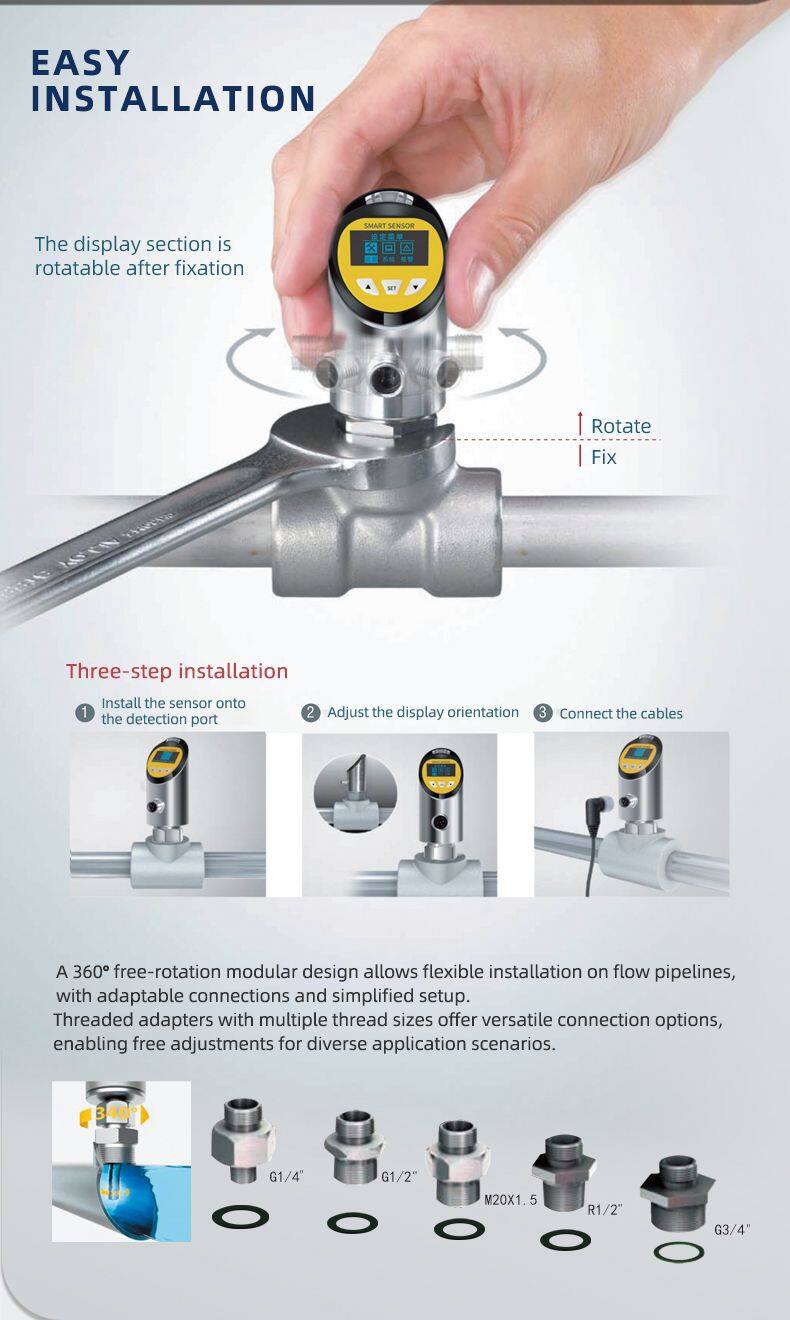

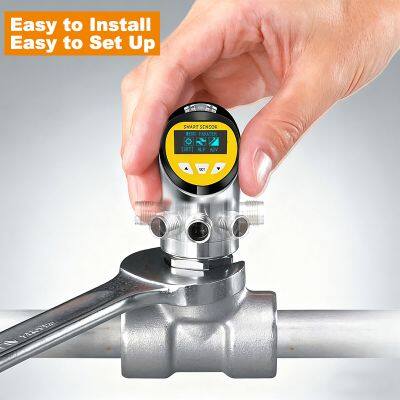

easy to install
various pipes can use only one type of sensor
the set-point can be adjust continuous
almost no pressure loss
protection grade IP67
Flow switch technical parameter
| Measure range | Water:3~300cm/s ; Air:200~300cm/s ; Oil:3~300cm/s |
| Accuracy | ±1~±10cm/s |
| Settling time | 3 minutes |
| Pressure | 100Bar |
| Media temperature | -20 to 80℃ |
| Thread | G1/2 ,G1/4 ,G1,M18*1.5 |
| Output signal | PNP / NPN / Relay /4-20mA |
| Power | 24VDC , 110VAC , 220VAC |

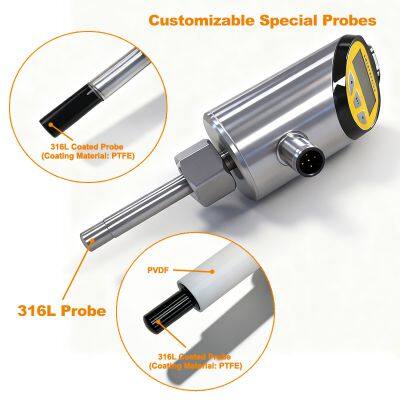

| Sensor length | 15mm , 20mm , 30mm , 40mm , 60mm |
| Consumption current | |
| Setting | Button |
| Response time | 2(2-10)s |
| Max.temperature gradient of medium | 300K/min |
| Protect | Reverse / Short / Overload |
| Protection grade | Ip67 |

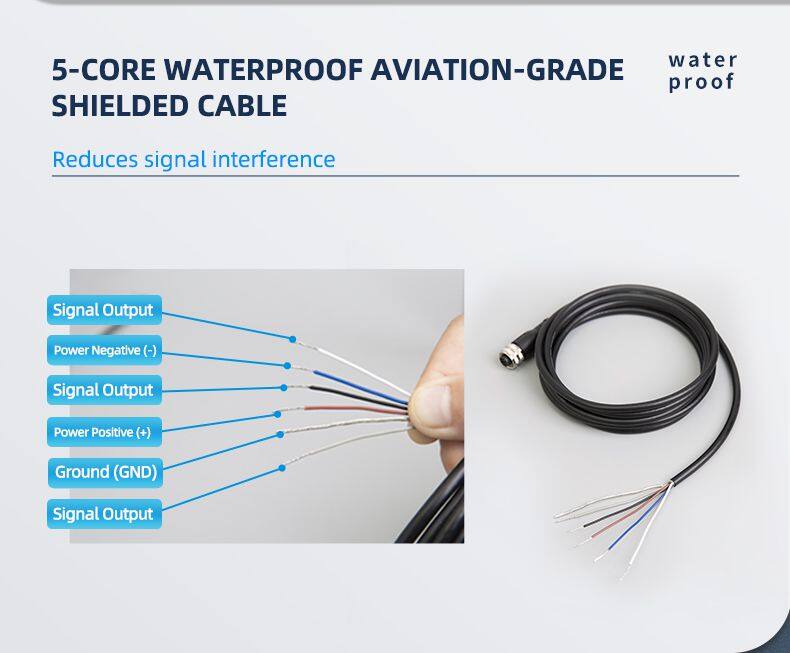

| Power connector | M12 with 1m cable |
| Material | Sensor : ANSI316L Body :ANSI316L |
| Load |
Current : 250mA Relay : 30VDC/5A ,110VAC/5A, 220VAC/5A |

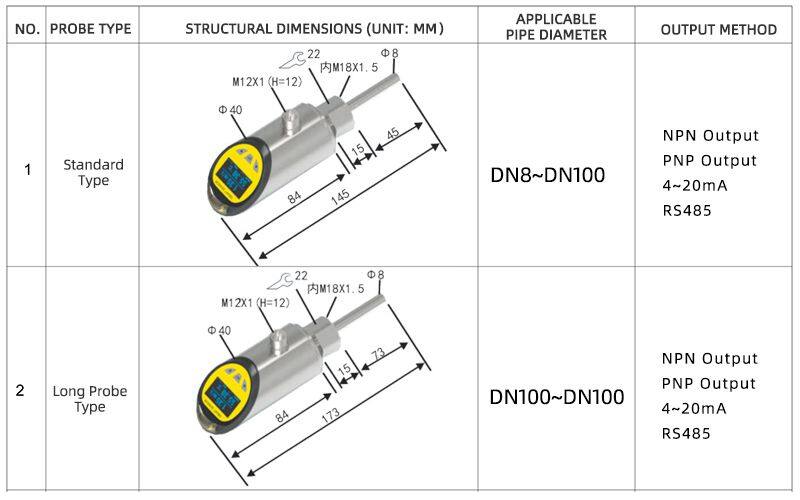

Detailed Images
FQA
Q: Are you the final manufacturer?
A: Yes, We are manufacturer
Q: Do you offer the OEM order ?
A: Yes, we can offer OEM service and label according to your requirements
Q: How to make payment?
A: We accept T/T , Credit card and West Union
Q: Could we visit your factory?
A: Yes, Sincerely invite you to visit our factory
Q:Do you have any discount?
A:Yes, if you buy large quantity, please contact us or send email, we will give you a big discount
Q: What is your delivery time?
A: It is about 5-7 working days since the payment confirmed . If the quantity more than 100pcs , it will need extra 3-5 working days
Q: How long is the warranty of your products ?
A: 2 years warranty
