Product brief introduction
Thermal flow switch is based on the principle of heat exchange design, probe the built-in heating module as well as the thermal module, heat dissipation of heating module and the flow velocity is closely related to the body. If there is no medium flow in the pipe ,thermal circuit receives a fixed value, when the fluid flows through the probe, thermal circuit receives the signal changes over medium velocity, thermal circuit will convert the temperature difference signals of heating module and thermal module into electrical signals, the processor will convert it into PNP/ NPN/ 4~20mA relay signal output, etc.
Feature

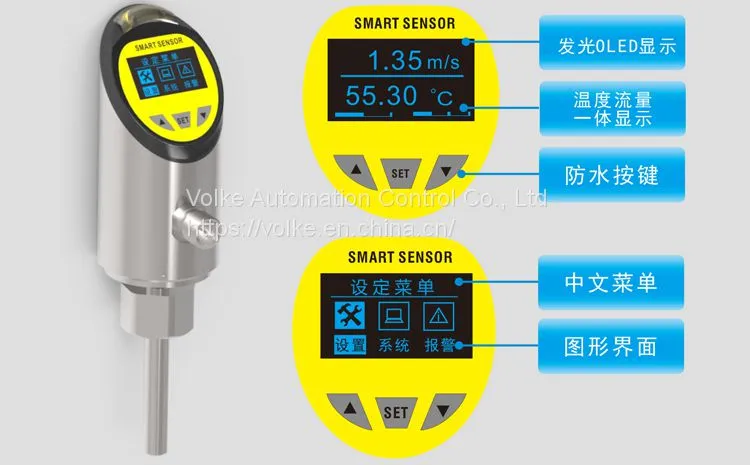

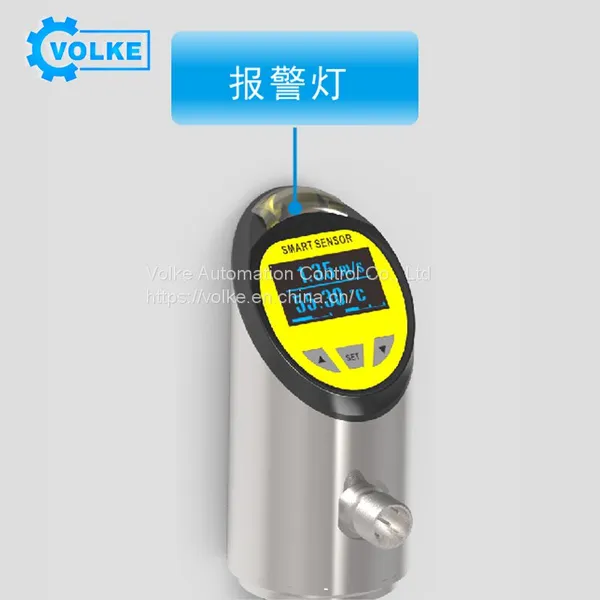

LED indicate the velocity
no moving parts, free maintenance
various length of sensors can be chose
easy to install
various pipes can use only one type of sensor
the set-point can be adjust continuous
almost no pressure loss
protection grade IP67
Flow switch technical parameter
| Measure range | Water:3~300cm/s ; Air:200~300cm/s ; Oil:3~300cm/s |
| Accuracy | ±1~±10cm/s |
| Settling time | 3 minutes |
| Pressure | 100Bar |
| Media temperature | -20 to 80℃ |
| Thread | G1/2 ,G1/4 ,G1,M18*1.5 |
| Output signal | PNP / NPN / Relay /4-20mA |
| Power | 24VDC , 110VAC , 220VAC |
| Sensor length | 15mm , 20mm , 30mm , 40mm , 60mm |
| Consumption current | |
| Setting | Button |
| Response time | 2(2-10)s |
| Max.temperature gradient of medium | 300K/min |
| Protect | Reverse / Short / Overload |
| Protection grade | Ip67 |
| Power connector | M12 with 1m cable |
| Material | Sensor : ANSI316L Body :ANSI316L |
| Load |
Current : 250mA Relay : 30VDC/5A ,110VAC/5A, 220VAC/5A |

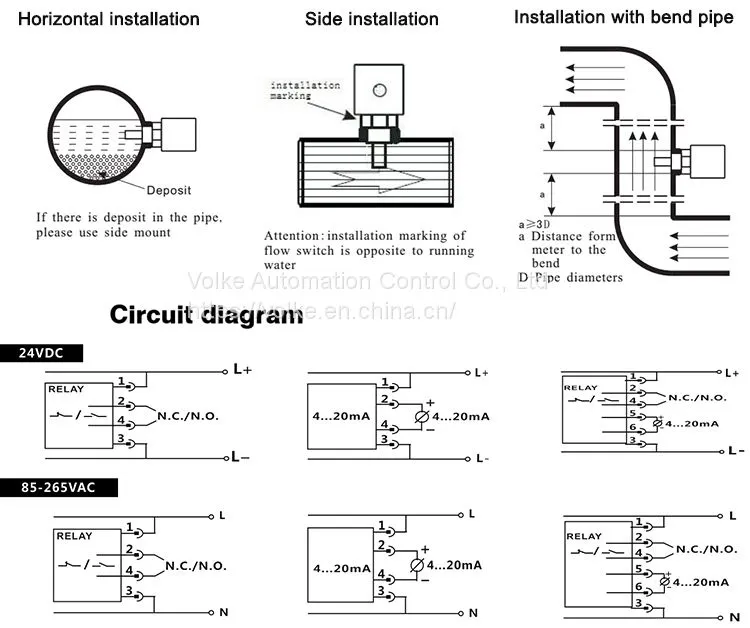

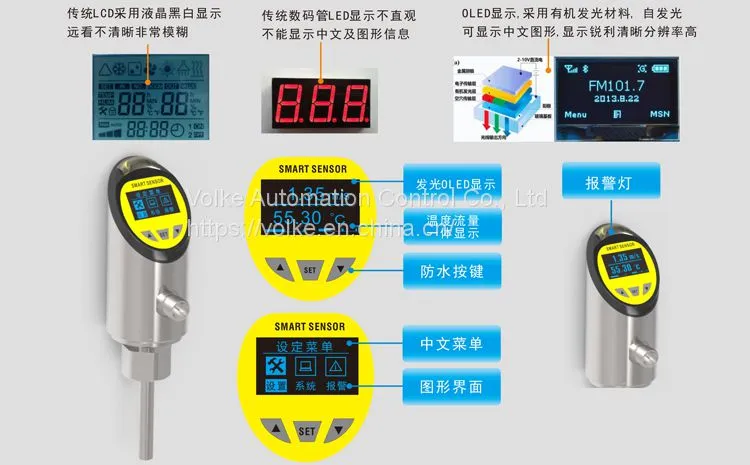

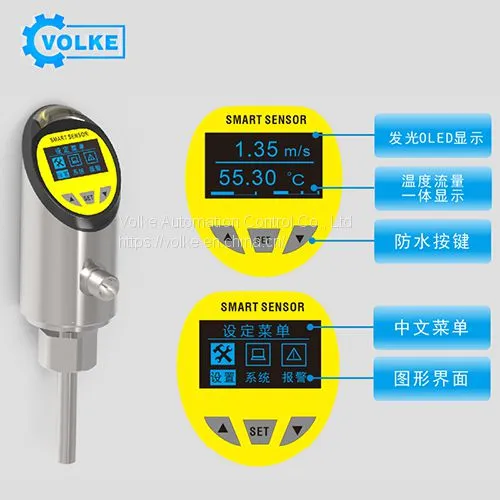

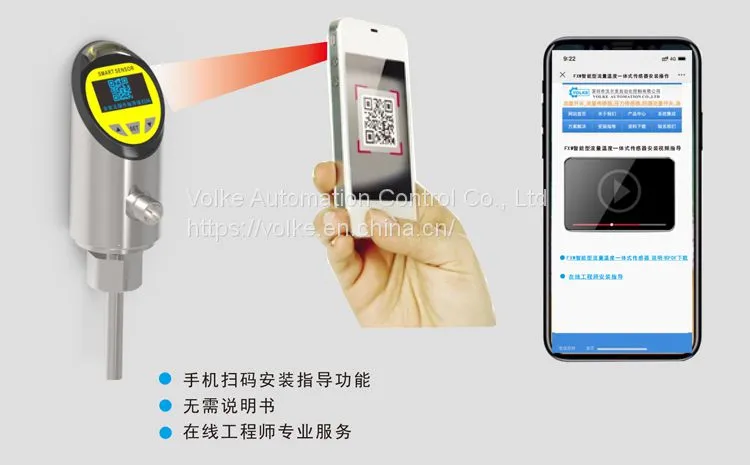

Detailed Images
Dimension
About Volke:
Shenzhen volke Automation Control Co., Ltd. was established in March 2011 with the brand "volke", which is located in the beautiful xinmusheng Low Carbon Industrial Park, Pinghu Town, Shenzhen. It is mainly engaged in industrial sensors such as flow switch, flowmeter, magnetic flap level gauge, temperature sensor and pressure sensor; The company has independent R & D and production capacity, guaranteed product quality and can provide OEM services to customers; Now facing the national investment agency, welcome to consult or visit the factory, and look forward to cooperating with you.
The company has introduced German sensor technology, and its products have obtained CE certification, covering major industrial fields such as water treatment, electric power, petrochemical, steel and petroleum, and all automation systems of hydropower plants, including automation components (pressure, flow, liquid level,
displacement, oil mixed water and temperature instruments), industrial valves, control devices and control systems.
Since starting his business, Volcker has always adhered to the concept of "quality is the eternal vitality of the brand" and focused on product quality. The company has passed the ISO9001 system certification, and the products have been strictly tested before leaving the factory to ensure that they can work normally in various complex working environments. The inspection links include: high and low temperature test chamber inspection, pressure test, EMC electromagnetic interference test, cold and hot water alternating simulation working environment test, etc. Strict quality control and the price advantage of independent production make the products have high cost performance and have been recognized by customers.
Due to the different industries of users, there are different requirements for the technical parameters and functions of products. The R & D engineers of Volcker Automation Control Co., Ltd. have been trying to meet the needs of each customer as much as possible, and make product transformation suitable for user working conditions for customers with special requirements, even if it is a small parameter requirement. If customers have some special needs for products, please contact our company, and our engineers will deal with these complex needs.
In the field of industrial automation products, design innovation and technical optimization are the principles we have always adhered to. The company continues to improve product quality and market expansion, and is determined to provide more customers with products with high quality and stable performance.
FQA
Q: Are you the final manufacturer?
A: Yes, We are manufacturer
Q: Do you offer the OEM order ?
A: Yes, we can offer OEM service and label according to your requirements
Q: How to make payment?
A: We accept T/T , Credit card and West Union
Q: Could we visit your factory?
A: Yes, Sincerely invite you to visit our factory
Q:Do you have any discount?
A:Yes, if you buy large quantity, please contact us or send email, we will give you a big discount
Q: What is your delivery time?
A: It is about 5-7 working days since the payment confirmed . If the quantity more than 100pcs , it will need extra 3-5 working days
Q: How long is the warranty of your products ?
A: 2 years warranty
