Product Description

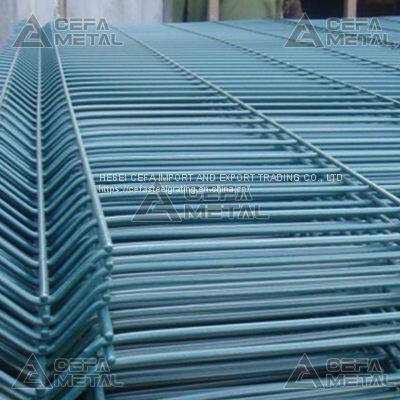

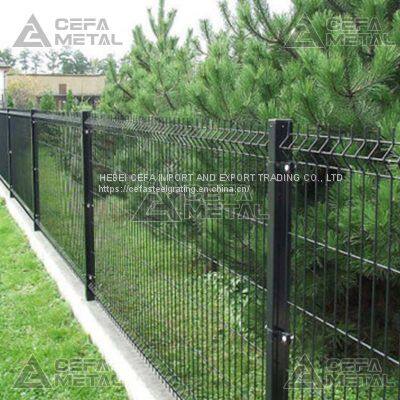

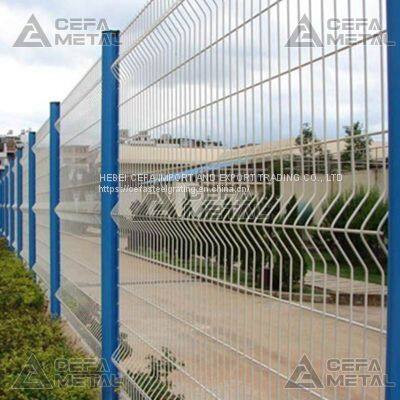

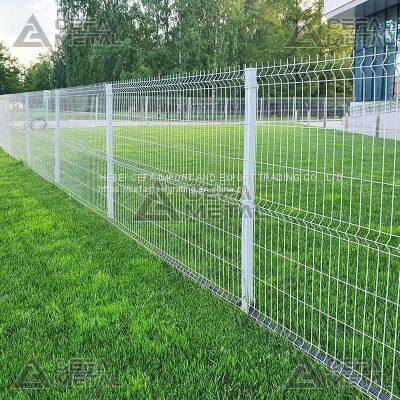

Bending Fence-3D Security Fence-Triangle Bend Fence
Bending Fence is a kind of 3D Fence with two or three curves, which makes the fence stronger. The fence panel is welded by high quality mild steel wire. The common post of the welded fence are SHS tube, RHS tube, Peach post, Round pipe or Special-shaped post. Fence panel will be fixed to the post by suitable clips according to different post type. Due to its simple structure, see-through panel, easy installation, nice appearance, this product is widely used in various occasions.
Advantage:
Economical security fence solution
High strength and regidity.
Wide applicability for various envirenments, special size customize available.
Excellent durability with galvanize and powder coating, 10+ years warrenty at least.
Fast Installation with our well developed components, assures installation can be efficient and repid.
Specification:
Panel:
General Bending Fence Panels have a width of 2500mm, heights range from 600mm to 2440mm. It has vertical barbs of 30mm on each side(top or at bottom) and are reversible . Mesh sizes are 200 x 50mm, and 100mm x 50mm for the beam sections. The heavy wires guarantee strength and rigidity. Different sizes can be customized as required
For more recommended size please see the chart below.
Recommended specification of bending fence
Mesh size options |
Wire diameter options |
Panel width option |
Fold numbers |
Height |
55x200mm, |
3.0mm |
2.0m |
2 |
830mm |
2 |
1030mm |
|||
2 |
1230mm |
|||
2 |
1430mm |
|||
3 |
1630mm |
|||
3 |
1830mm |
|||
4 |
2030mm |
|||
4 |
2230mm |
|||
4 |
2430mm |
Posts:
Cefa Metal Bending Fence is attached with high strength steel posts. The common posts of the Welded Fence are SHS tube, RHS tube, Peach post, Round pipe or Special-shaped post. Fence Panels will be fixed to the post by suitable clips according to different post.
Recommend post speicifations is as below chart:
Post Type |
Size |
Thickness |
Height |
Round Post |
48mm, 60mm |
1.5mm, 2.0mm, 2.5mm, 3.0mm |
1.4m, 1.6m, 1.8m, 2.0m, 2.5m, 2.8m, 3.0m |
Square post |
50x50mm, 60x60mm |
1.5mm, 2.0mm, 2.5mm, 3.0mm |
1.4m, 1.6m, 1.8m, 2.0m, 2.5m, 2.8m, 3.0m |
Rectangular post |
40x60mm, 40x80mm |
1.5mm, 2.0mm, 2.5mm, 3.0mm |
1.4m, 1.6m, 1.8m, 2.0m, 2.5m, 2.8m, 3.0m |
Peach post |
50x70mm, 70x100mm |
1.2mm, 1.5mm |
1.4m, 1.6m, 1.8m, 2.0m, 2.5m, 2.8m, 3.0m |
I post |
42x70mm |
1.2mm, 1.5mm, 2.0mm |
1.4m, 1.6m, 1.8m, 2.0m, 2.5m, 2.8m, 3.0m |
Surface treatment: Hot-dip galvanize, electro galvanize, polyester powder spray coating. All colours of spray painting is available.
Hebei Cefa Import And Export Trading Co., Ltd. specializes in the production of standard steel gratings and drainage covers. If you are interested in our products, please contact us as soon as possible.
