Ridge plastering machine for rice farming

Bund Making machine

Bund Trimming Machine

Levee Plastering Machine

Ridge forming Bund making machine

Ridge plastering machine

Bund forming machine

Bund making for rice paddy

Advantage:

1) Drive type: gear box and chain dirve  .

2) Multipurpose: rice paddy field ridger making machine and build Canal.

3) Material: Alloy shovel and Manganese steel shrapnel.

4) It can be operated in frozen soil environment.

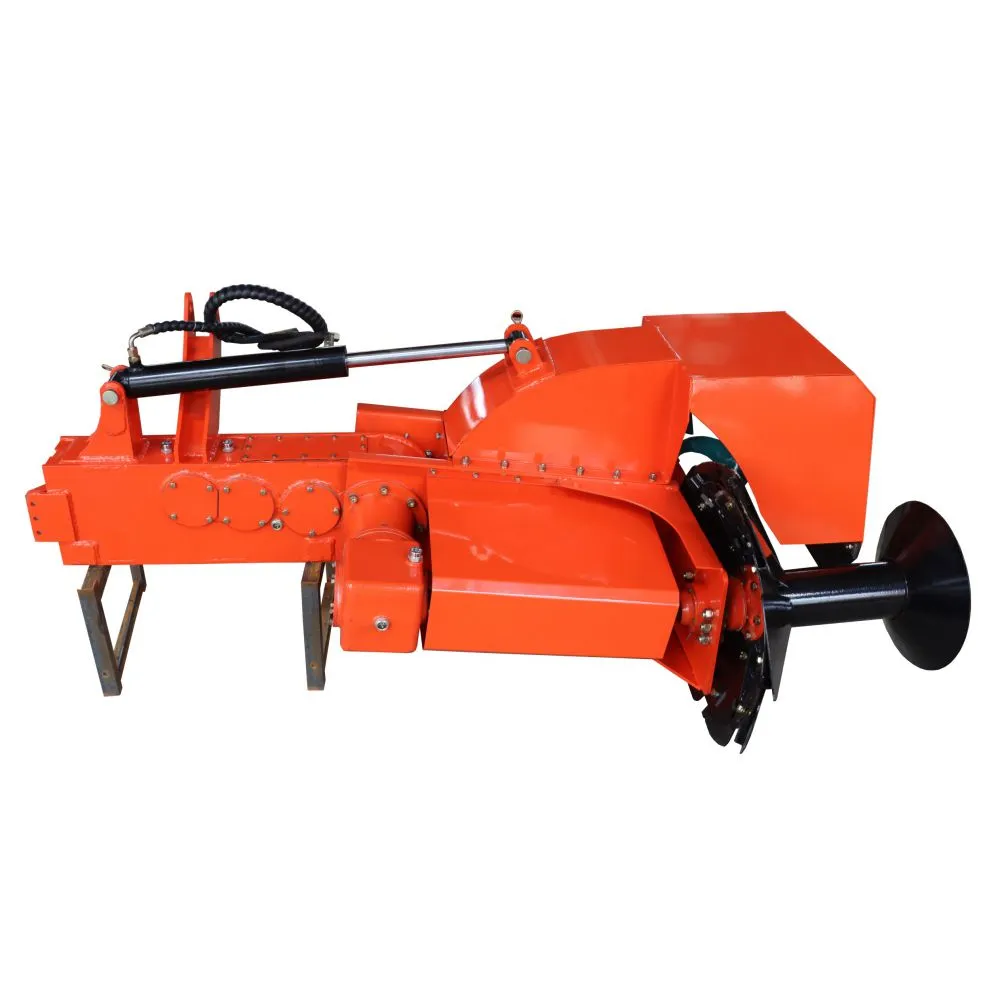

 main pictures.

main pictures.

Three-point Suspension

Suspension type: same as like the tiller Suspension type，it's need to link to tractor hydraulic quick outlet, convenient to pick up and transporter.

Transmission Drive System

Gear box Transmission Part main picture (Figure 1)

Note: The gearbox has filling port and observation hole, which is convenient for users to fill gear oil and maintenance.

Drive shaft drive part (Figure 2)

Gear drive part main picture (instead of the chain drive) (Figure 3)

Transmission drive system: whole machine drive gear box drive and shaft drive, not the chain drive, have the long work lift and lower failure rate.

Rotary Blade

Configuration the high quality and international standard rotary blade, convenient client order nearby.

Rolling Plate Material

Two type: one is Manganese steel, and another is white steel (Higher hardness, low wear and tear and no soil).

Limit wheel in order to control travel direction.

PTO drive shaft: one side 6 key, another side 8 key.
