Sand Making Machine

Sand Making Machine photo-1
Sand Making Machine photo-2
Sand Making Machine photo-3
Sand Making Machine photo-4
Sand Making Machine photo-5
US$ 50000 - 1000000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Longyi
Place of Origin:
China
Model Number:
LYCS800, LYCS1000
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
14 days
Brand Name Longyi
Place of Origin China
Model Number LYCS800, LYCS1000
Type Cylindrical Grinding Machine
Certification ISO9001,SGS
After-sales Service Provided Engineers available to service machinery overseas
Weight 6.5
Dimension(L*W*H) 2500×1620×2600
Condition New
Power(W) 37-55kw
CNC or Not CNC
Max. Grinding Length 35 mm

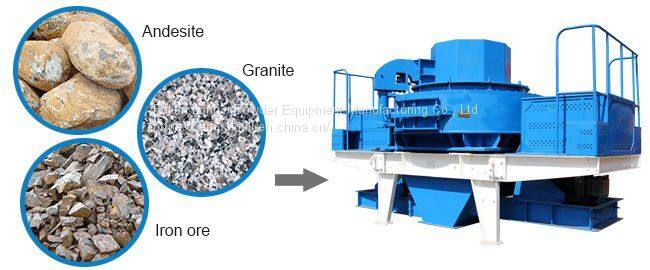

        Sand maker, also named sand making machine or artificial sand maker, is a suitable device in the sand making plant for crushing and reshaping soft materials or medium hard extremely hard materials and it is of particular higher efficiency and productivity in crushing dead-hard, extra-hard and corrosion-resistant materials such as, silicon carbide, carborundum, sintered bauxite, magnesia and so on.

Working principle of Sand Making Machine

The materials vertically fall into the high-speed rotating impeller from the upper part of the artificial sand maker, and impact and smash with each other under the centrifugal force. After impacting and crushing process of the artificial sand maker, the materials will form vortex between the impeller and the cabinet, and then be straightly discharged from the lower part, forming the closed-loop cycles. The screening device can be used to control the granularity of finished products.

Technical Data
Model specification Max.feeding size
(mm)
Power
(kw)
Rotation speed of  impeller
(r/min)
Capacity
(t/h)
Overall dimension
(L×W×H)(mm)
HX-06 35 2P   37-55KW 2000-3000 12-30 2500×1620×2600
HX-07 45 4P   55-75KW 1500-2500 25-55 2700×1760×2800
HX-09 50 4P   110-150KW 1200-2000 55-100 3900×2000×3070
HX-10 60 4P   150-180KW 1000-1700 100-160 4600×2350×3450
Longyi Sand Maker


Longyi sand maker used in the sand making plant is the latest type of sand making machines which can save energy by over 50% than traditional sand maker. It is able to crush all kinds of rocks, gravels and river cobbles into building sand conforming to the desired granularity, the final sand is even in granularity and high in compression strength, so that it better conforms to the construction requirement of the sand making plant than natural sand and the sand produced by common hammer type sand maker and better improves the quality of the buildings. The VSI sand maker has many features such as reliable performance, reasonable design, convenient operation and high working efficiency.


Product Tags: sand , building material , sand making , grind rock machine , artificial sand maker , crushing machine
