Product Details
Brand Name: | Irelia; Beak; ican | Place of Origin: | China |
Product Description

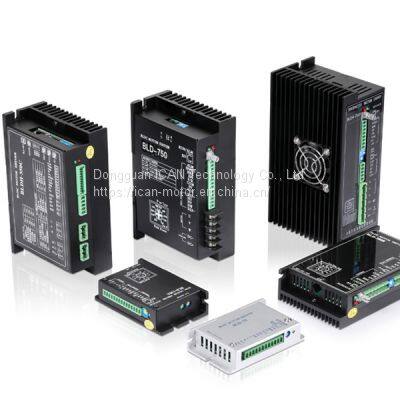

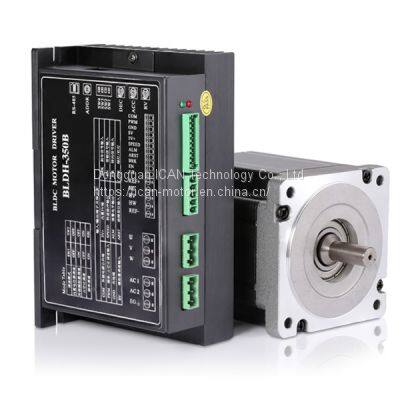

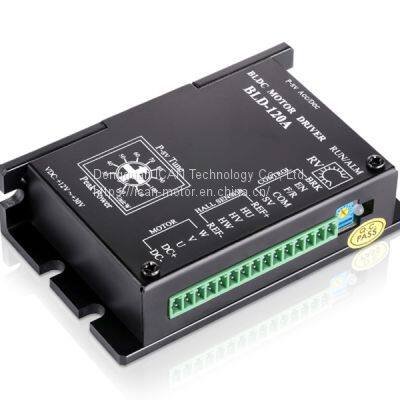

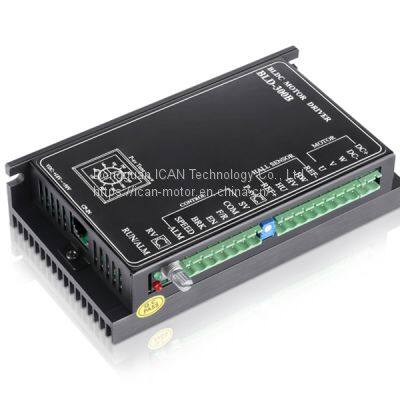

BLD Series Drivers motor brushless driver brushless motor driver bldc motor manufacturer
Features:
3 phase bldc motor driver, driver motor bldc
● Brushless motor driver
Wide speed range, flat torque.
Excellent speed stability.
Low power consumption low noise low vibration.
Low cogging torque.
BLD series bldc motor driver selection tab
DRIVER SERIES | ITEM(MODEL NUMBER) | PEAK CURRENT(A) | RATED CURRENT(A) | VOLTAGE(V) | MATCHED MOTOR | NET WEIGHT(G) | DIMENSION(MM) |
BLD series drivers | BLD-70 | 6 | 3 | VDC12-30 | ≤70w | 130 | 94*56.5*21 |
BLD-120 | 16 | 8 | VDC12-30 | ≤125w | 170 | 96*60*24.5 | |
BLD-300 | 35 | 14 | VDC12-56 | ≤300w | 340 | 143*80*33 | |
BLD-750 | 45 | 25 | VDC18-52 | ≤750w | 600 | 151*97.5*52 | |
BLDH-350 | 4 | 2 | VAC180-265 | ≤350w | 650 | 151*97.5*52 | |
BLDH-750 | 8 | 4 | VAC180-265 | ≤750w | 850 | 170*97.5*65 |
