2Phase Stepper Motor Drivers 3d stepper motor 2 Phase Stepper Driver supplier
Features:
Advanced current control.
Microstep Emulation.
Economical.
Anti-Resonance.
Multiple motor parameters selection.
Selection Table
DRIVER SERIES |
ITEM |
CURRENT(A) |
VOLTAGE(VDC) |
VOLTAGE(VAC) |
MATCHED MOTOR |
NET WEIGHT(G) |
DIMENSION(MM) |
2Phase stepper motor driver |

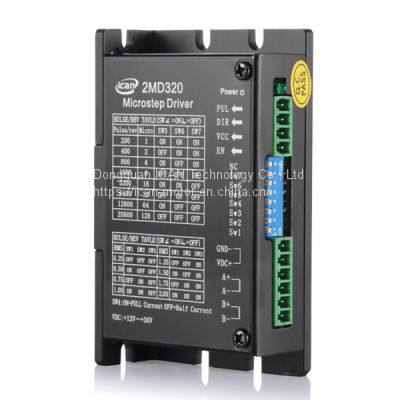

2MD320 |
0.3-2 |
12-36 |
- |
NEMA11/NEMA14/NEMA16/NEMA17 |
100 |
60*96*24.5 |

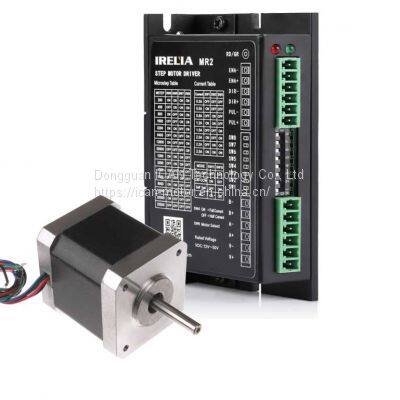

MR2 |
0.3-2.5 |
12-50 |
- |
NEMA11/NEMA14/NEMA16/NEMA17 |
110 |
94*56*21 |
|
MR4 |
1.0-4.2 |
20-50 |
- |
NEMA23/NEMA24 |
270 |
118*76*33 |
|
MR5 |
2.0-5.6 |
20-50 |
50 |
NEMA23/NEMA24/NEMA34 |
270 |
118*76*33 |
|
MR7 |
2.4-7.2 |
18-80 |
18-60 |
NEMA24/NEMA34 |
390 |
143*96*38 |
|

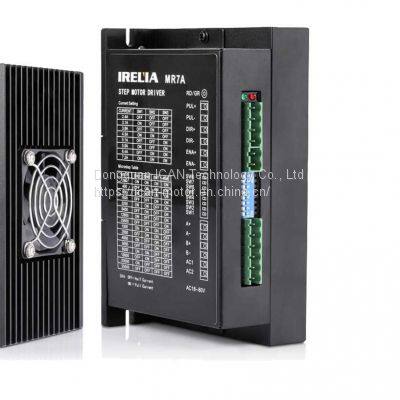

MR7A |
2.4-7.2 |
18-110 |
18-80 |
NEMA24/NEMA34 |
610(with fan) |
151*98*52 |
|

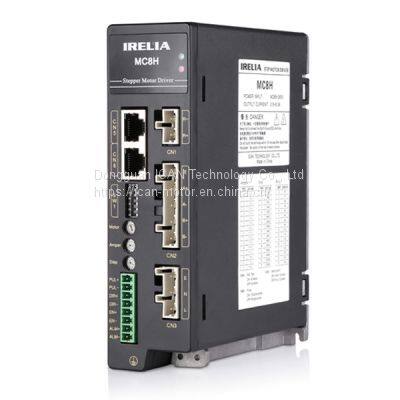

MC8H |
0.5-8.0 |
- |
85-265 |
NEMA42/NEMA51 |
880 |
160*127*45 |
|
2MA2282 |
1.8-8.2 |
- |
80-240 |
NEMA42/NEMA51 |
1660 |
147*203*78 |
IRELIA series digital stepper motor driver is highly cost-effective with the resolution based on the ARM chips. It can drive the full range of Nema11-51 two-phase stepper motors. It can generate optimal control parameters for different motors, maximize the performance of the motor, and make the motor run smoothly, with low noise and low heat.
Features
The working voltage range covers 24VDC~80VDC, 60VAC~220VAC;
The working current range is 0.1A~11.7A (peak current);
Support pulse/direction or double pulse control mode, and can receive differential and single-ended signal commands;
Using the ARM4 core high-frequency controller, excellent characteristics
Suitable for two-phase stepper motors of various sizes from 28 to 130
The product series covers a variety of AC and DC operating voltage ranges
Excellent high-speed characteristics, high torque, low speed and low vibration, ultra-quiet
Self-detection, over-current, over-voltage, under-voltage protection, motor parameter adaptation
Application
ICAN stepper motor is widely used in engraving machines, 3D printers, CNC machine tools, medical equipment, electronic processing equipment, automated production lines, and other automated equipment.
