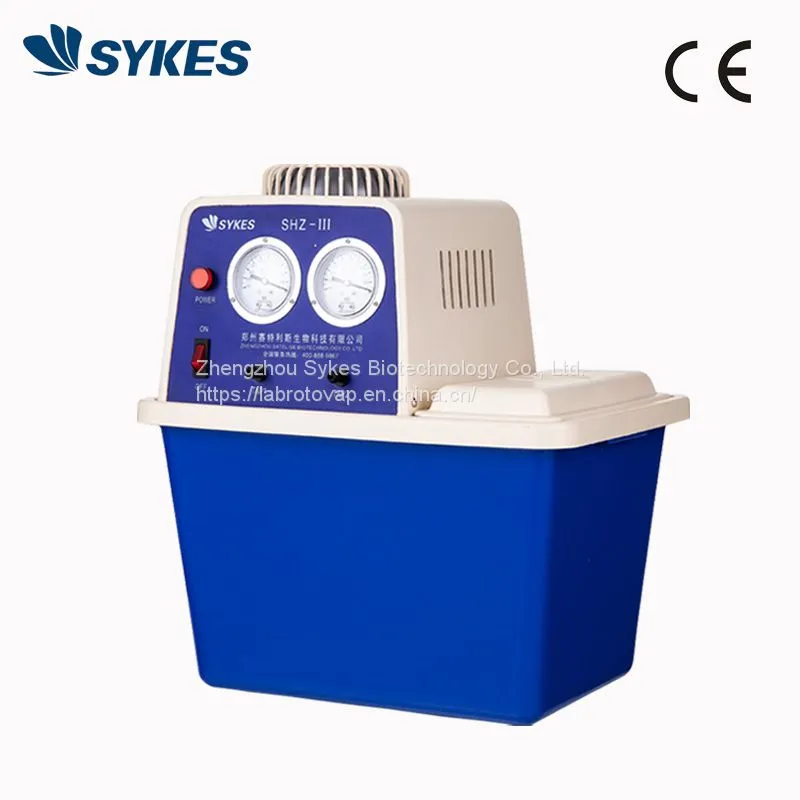

Laboratory Small Bench Top Electric Water Jet Flow Circulating Vacuum Pump Price
Product Application
Water circulating vacuum pump ( also called Water Jet Flow Aspirator ) provides vacuum condition for the processes of evaporation, distillation, crystallization, drying, sublimation, filtration and decompression, degassing and so on, particularly be suitable for labs and small scale test of industries such as universities and colleges, scientific research institutes, chemical industry, pharmacy, biochemistry, foodstuff, pesticide, agricultural engineering, biological engineering.
Water circulating vacuum pump ( also called Water Jet Flow Aspirator ) usually works with rotary evaporator or jacketed reactor to form the total system to complete the experiment.
Working Principle
Multi-purpose Circulating Water Vacuum Pump takes circulating water as working fluid, uses the negative pressure created by fluid jet to eject.
Technical Data
Product |
Water Jet Flow Vacuum Pump |
Model |
SHZ-IIIG |
Power (W) |
180 |
Power supply (V/Hz) |
110V, 60Hz or 220 ~ 240V, 50/60Hz |
Flow (L/min) |
80 |
Lift(m) |
10 |
Safety functions |
Check valve, over-current protection |
Maximum Vacuum Degree (MPa) |
0.098 ( 20mbar, 2KPa ) |
Single Tap Air Sucking Amount (L/min) |
10 |
Number of Taps (A) |
2 |
Capacity of water storage tank (L) |
15 |
Materials of Water Tank |
pp |
Dimensions (mm) |
385L×280W×420H |
Weight (kg) |
11 |
Main Features
1. Cyclically use water, save the precious water resources.
2. Save more than 35% of electricity than other type of vacuum pump.
3. The fluid muffler can reduce the gas in water and make the vacuum degree higher and more stable; reduce the friction between gas and fluid, reduce the noise.
4. Double-tap, double-display, can be used alone or in parallel.
5. Resist corrosion by acid, alkali and solvents.
6. The special machine is made by the famous electric manufacture ODM with fluorine rubber sealing, the inner of which can't be intruded by corrosive gas.
7. Need to replace the water in the flume regularly to ensure the purity of water quality, the vacuum degree and to avoid dirt stains.
8. Can be used to extract corrosive gas, need to shorten the period of water changing.
9. Spray paint Teflon (PTFE) on the ejector and gas-extraction nozzle, gas pipeline adopts fluorine rubber material.
